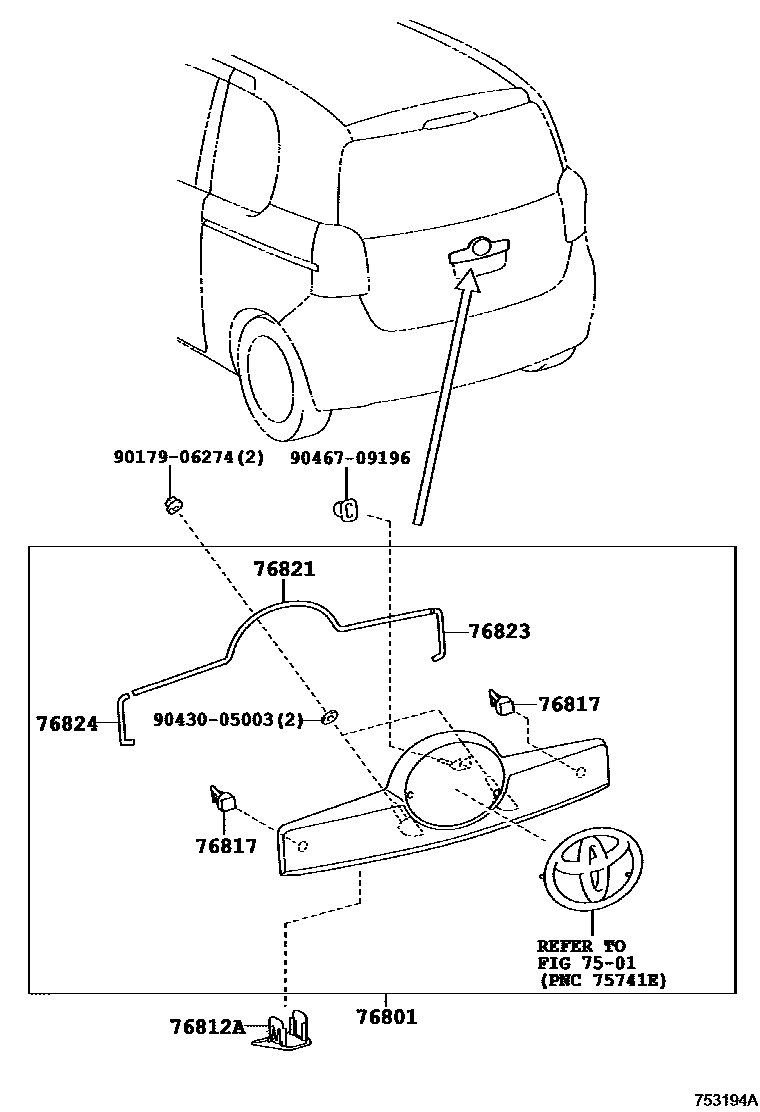

REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-52480-A0iNSP141201507

WHITE PEARL CS.,070

main76801-52480-B0iNSP141201507

SILVER ME.,1F7

main76801-52480-C0iNSP141201507-201907

BLACK MC.,209

main76801-52480-C1iNSP141201607

BLACKISH AGEHA GF.,221

main76801-52480-C2iNSP141201907

BLACK,202

main76801-52480-D0iNSP141201507

SUPER RED 5,3P0

main76801-52480-D1iNSP141201507

DEEP RED M.M.,3R9

main76801-52480-E0iNSP141201507-201907

DK. BROWN M.M.,4U3

main76801-52480-E3iNSP141..Y201907

BEIGE,4V6

main76801-52480-F1iNSP141201507-201712

SPICY KHAKI PEARL CS.,5B8

main76801-52480-F2iNSP141201712

YELLOW M.M.,588

main76801-52480-G1iNSP141201507-201712

CITRUS M.M.,6W2

main76801-52480-J0iNSP141201507-201607

LT.BLUE M.M.,8S1

main76801-52480-J1iNSP141201712-201907

BLUE ME.,8T7

main76801-52480-J2iNSP141..Y201907

GRAYISH BLUE,8W2

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-12140iNSP141201507

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-58030×2iNSP141201507

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-52170iNSP141201507

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-52040iNSP141201507

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-52040iNSP141201507

9017906274

main90179-06274

9043005003

main90430-05003

9046709196

main90467-09196

10 parts on this diagram · 1 diagram in section
