REAR SEAT & SEAT TRACK

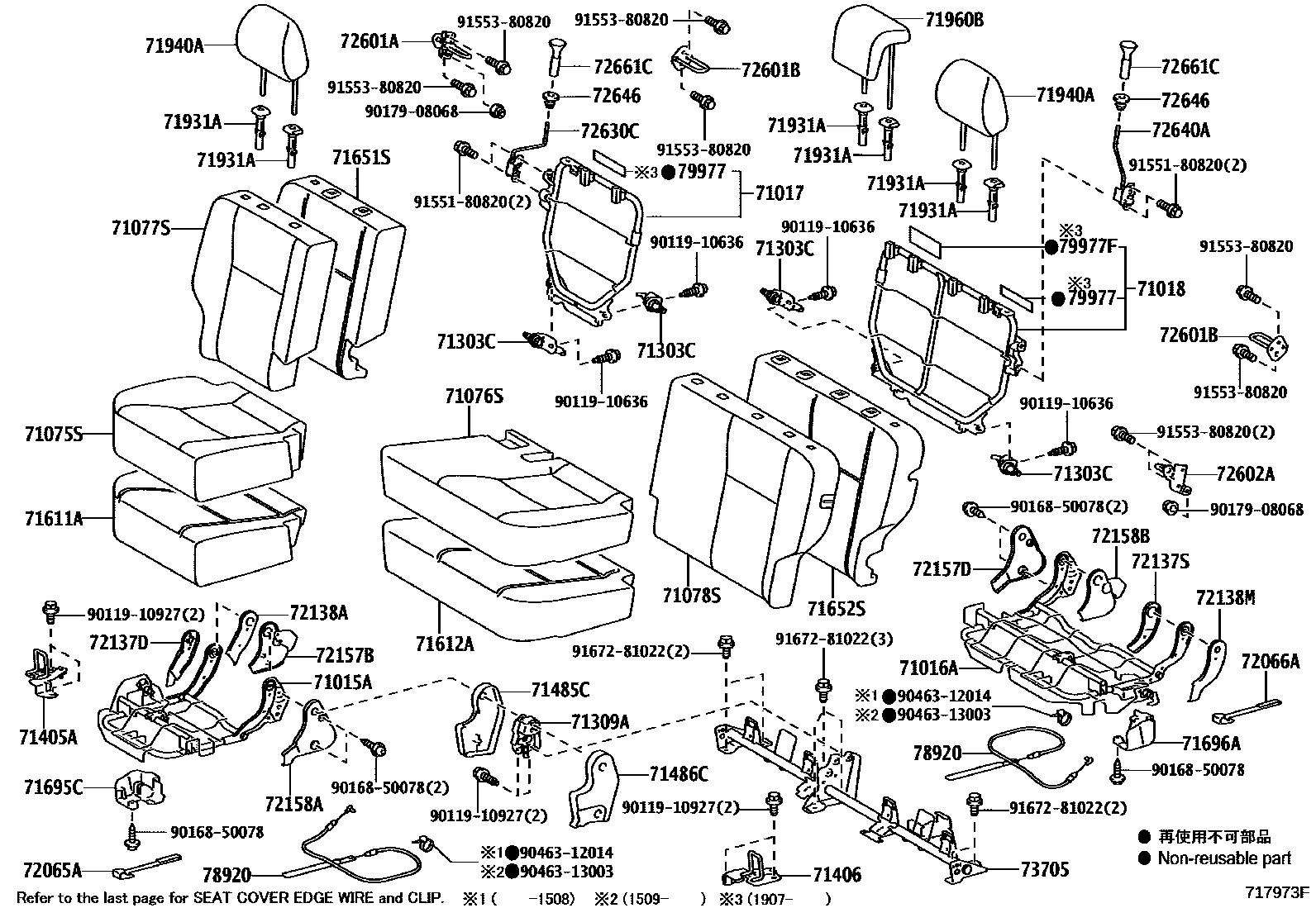

Parts diagram
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71015-52490i201507
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
main71016-52130i201507
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-52740i201507-201905
main71017-52741i201905
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-52540i201507-201905
main71018-52541i201905
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-52K00-A0i201507-201712
FROMAGE,TRIM0#
main71075-52K00-A1i201712-201811
FROMAGE,TRIM0#
main71075-52K00-A2i201811-201907
FROMAGE,TRIM0#
main71075-52K00-C1i201507-201811
BLACK,TRIM4#
main71075-52K00-C3i201811-201907
BLACK,TRIM4#
main71075-52K01-A2i201907
FROMAGE,TRIM0#
main71075-52K01-C3i201907
BLACK,TRIM4#
main71075-52K20-C0i201507-201811
BLACK,TRIM4#
main71075-52K20-C1i201811-201907
BLACK,TRIM4#
main71075-52K21-C1i201907
BLACK,TRIM4#
71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71076-52340-A0i201507-201712
FROMAGE,TRIM0#
main71076-52340-A1i201712-201811
FROMAGE,TRIM0#
main71076-52340-A2i201811-201907
FROMAGE,TRIM0#
main71076-52340-C1i201507-201811
BLACK,TRIM4#
main71076-52340-C3i201811-201907
BLACK,TRIM4#
main71076-52341-A2i201907
FROMAGE,TRIM0#
main71076-52341-C3i201907
BLACK,TRIM4#
main71076-52350-C0i201507-201811
BLACK,TRIM4#
main71076-52350-C1i201811-201907
BLACK,TRIM4#
main71076-52351-C1i201907
BLACK,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-52L11-A1i201507-201712
FROMAGE,TRIM0#
main71077-52L11-A2i201712-201811
FROMAGE,TRIM0#
main71077-52L11-A3i201811
FROMAGE,TRIM0#
main71077-52L11-C2i201507-201811
BLACK,TRIM4#
main71077-52L11-C4i201811
BLACK,TRIM4#
main71077-52L31-C1i201507-201811
BLACK,TRIM4#
main71077-52L31-C2i201811
BLACK,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-52J41-A1i201507-201712
FROMAGE,TRIM0#
main71078-52J41-A2i201712-201811
FROMAGE,TRIM0#
main71078-52J41-A3i201811
FROMAGE,TRIM0#
main71078-52J41-C2i201507-201811
BLACK,TRIM4#
main71078-52J41-C4i201811
BLACK,TRIM4#
main71078-52J61-C1i201507-201811
BLACK,TRIM4#
main71078-52J61-C2i201811
BLACK,TRIM4#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-52060×4i201507
71309ABRACKET SUB-ASSY, REAR SEATBACK HOLDER
main71309-52070i201507
71405ASTRIKER SUB-ASSY, REAR SEAT LOCK, RH
main71405-52060i201507
71406STRIKER SUB-ASSY, REAR SEAT LOCK, LH
main71406-52060i201507
71485CCOVER, REAR SEAT HINGE, RH
main71485-52010-A0i201507-201712
FROMAGE,TRIM0#
main71485-52010-C0i201507
BLACK,TRIM4#
main71485-52010-E0i201712
PLUM,TRIM0#
71486CCOVER, REAR SEAT HINGE, LH
main71486-52010-A0i201507-201712
FROMAGE,TRIM0#
main71486-52010-C0i201507
BLACK,TRIM4#
main71486-52010-E0i201712
PLUM,TRIM0#
71611APAD, REAR SEAT CUSHION, RH
main71611-52270i201507
71612APAD, REAR SEAT CUSHION, LH
main71612-52190i201507
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-52790i201507
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-52620i201507
71695CPROTECTOR, REAR SEAT, NO.1
main71695-52040-C0i201507
BLACK,TRIM0#,4#; BLACK,TRIM4#
71696APROTECTOR, REAR SEAT, NO.2 LH
main71696-52020-C0i201507
BLACK,TRIM0#,4#; BLACK,TRIM4#
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-A6×3i201507-201712
W(LOCK),FROMAGE,TRIM0#
main71930-44020-C0×3i201507
W(LOCK),BLACK,TRIM4#
main71930-44020-L1×3i201712
W(LOCK),NOBLE BROWN,TRIM0#
main71931-47010-01×3i201507-201712
W/O(LOCK),FROMAGE,TRIM0#
main71931-47010-C0×3i201507
W/O(LOCK),BLACK,TRIM4#
main71931-47010-L5×3i201712
W/O(LOCK),NOBLE BROWN,TRIM0#
71940AHEADREST ASSY, REAR SEAT
main71940-52E10-A0×2i201507-201712
FROMAGE,TRIM0#
main71940-52E10-A1×2i201712-201811
FROMAGE,TRIM0#
main71940-52E10-A2×2i201811
FROMAGE,TRIM0#
main71940-52E10-C2×2i201507-201811
BLACK,TRIM4#
main71940-52E10-C4×2i201811
BLACK,TRIM4#
main71940-52E20-C0×2i201507-201811
BLACK,TRIM4#
main71940-52E20-C1×2i201811
BLACK,TRIM4#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-52670-A0i201507-201712
FROMAGE,TRIM0#
main71960-52670-C0i201507-201811
BLACK,TRIM4#
main71960-52670-C2i201811
BLACK,TRIM4#
main71960-52670-E0i201712-201811
PLUM,TRIM0#
main71960-52670-E2i201811
PLUM,TRIM0#
72065AHOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH
main72065-52020-A0i201507-201712
FROMAGE,TRIM0#
main72065-52020-C0i201507
BLACK,TRIM4#
main72065-52020-E2i201712
PLUM,TRIM0#
72066AHOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH
main72065-52020-A0i201507-201712
FROMAGE,TRIM0#
main72065-52020-C0i201507
BLACK,TRIM4#
main72065-52020-E2i201712
PLUM,TRIM0#
72137DCOVER, REAR SEAT TRACK, RH
main72137-52120-A0i201507-201712
FROMAGE,TRIM0#
main72137-52120-C0i201507
BLACK,TRIM4#
main72137-52120-E0i201712
PLUM,TRIM0#
72137SCOVER, SEAT TRACK BRACKET, OUTER REAR RH
main72137-52130-A0i201507-201712
FROMAGE,TRIM0#
main72137-52130-C0i201507
BLACK,TRIM4#
main72137-52130-E0i201712
PLUM,TRIM0#
72138ACOVER, REAR SEAT TRACK, LH
main72138-52100-A0i201507-201712
FROMAGE,TRIM0#
main72138-52100-C0i201507
BLACK,TRIM4#
main72138-52100-E0i201712
PLUM,TRIM0#
72138MCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72138-52110-A0i201507-201712
FROMAGE,TRIM0#
main72138-52110-C0i201507
BLACK,TRIM4#
main72138-52110-E0i201712
PLUM,TRIM0#
72157BCOVER, REAR SEAT TRACK BRACKET, INNER RH
main72157-52161-A0i201507-201712
FROMAGE,TRIM0#
main72157-52161-C0i201507
BLACK,TRIM4#
main72157-52161-E0i201712
PLUM,TRIM0#
72157DCOVER, SEAT TRACK BRACKER, INNER RH
main72157-52170-A0i201507-201712
FROMAGE,TRIM0#
main72157-52170-C0i201507
BLACK,TRIM4#
main72157-52170-E0i201712
PLUM,TRIM0#
72158ACOVER, REAR SEAT TRACK BRACKET, INNER LH
main72158-52110-A0i201507-201712
FROMAGE,TRIM0#
main72158-52110-C0i201507
BLACK,TRIM4#
main72158-52110-E0i201712
PLUM,TRIM0#
72158BCOVER, SEAT TRACK BRACKET, INNER LH
main72158-52121-A0i201507-201712
FROMAGE,TRIM0#
main72158-52121-C0i201507
BLACK,TRIM4#
main72158-52121-E0i201712
PLUM,TRIM0#
72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH
main72601-52270-E0i201507-201612
PLUM,TRIM0#,4#; PLUM,TRIM4#
main72601-52271-E0i201701
PLUM,TRIM0#,4#; PLUM,TRIM4#
72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK
main72601-52230×2i201507
72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH
main72602-52110-E0i201507-201612
PLUM,TRIM0#,4#; PLUM,TRIM4#
main72602-52111-E0i201701
PLUM,TRIM0#,4#; PLUM,TRIM4#
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-52210i201507
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-52200i201507
72646GROMMET, REAR SEATBACK STOP BUTTON
main72646-33010-A1×2i201507-201712
FROMAGE,TRIM0#
main72646-33010-C0×2i201507
BLACK,TRIM4#
main72646-33010-E4×2i201712
PLUM,TRIM0#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
main72661-32030-A1×2i201507-201712
FROMAGE,TRIM0#
main72661-32030-C0×2i201507
BLACK,TRIM4#
main72661-32030-E3×2i201712
PLUM,TRIM0#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-52220i201507
78920CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2
main78920-52010-E1×2i201507
PLUM,TRIM0#,4#; PLUM,TRIM4#
79977FELT, SEATBACK
main79977-52220×2i201907
79977FFELT, SEATBACK, LH
main79977-52230i201907
9011910636
main90119-10636
9011910927
main90119-10927
9016850078
main90168-50078
9017908068
main90179-08068
9046312014
main90463-12014
9046313003
main90463-13003
9155180820
main91551-80820
9155380820
main91553-80820
9167281022
main91672-81022

53 parts on this diagram · 2 diagrams in section
