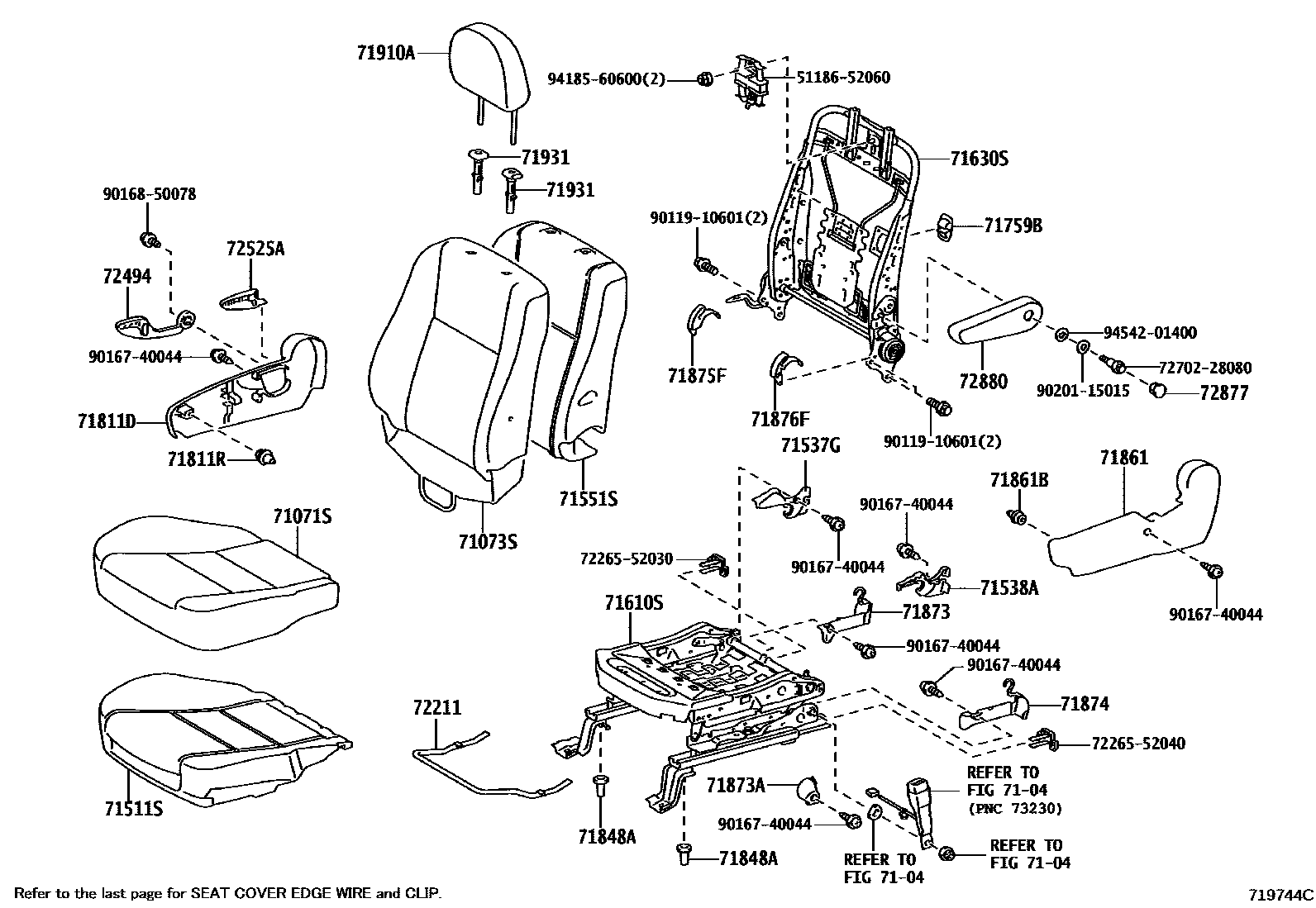

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE SEPARATE TYPE 0002 1DRIVER SIDE BENCH SEAT 0003 1PASSEBGER SIDE 0004 1FITTING PARTS 0005 1

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-52Q60-A0iNSP141..F201507-201712

FROMAGE,TRIM0#

main71071-52Q60-A1iNSP141..F201712-201811

FROMAGE,TRIM0#

main71071-52Q60-A2iNSP141..F201811

FROMAGE,TRIM0#

main71071-52Q60-C1iNSP141..F201507-201811

BLACK,TRIM4#

main71071-52Q60-C3iNSP141..F201811

BLACK,TRIM4#

main71071-52Q70-C0iNSP141..Y201507

BLACK,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-52S70-A0iNSP141..F201507-201712

FROMAGE,TRIM0#

main71073-52S70-A1iNSP141..F201712-201811

FROMAGE,TRIM0#

main71073-52S70-A2iNSP141..F201811

FROMAGE,TRIM0#

main71073-52S70-C2iNSP141..F201507-201811

BLACK,TRIM4#

main71073-52S70-C4iNSP141..F201811

BLACK,TRIM4#

main71073-5C530-C1iNSP141..Y201507

BLACK,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-52740iNSP141..F201507

main71511-52750iNSP141..Y201507

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-47010-A3iNSP141..F201507-201712

FROMAGE,TRIM0#

main71537-47010-C0iNSP141201507

BLACK,TRIM4#

main71537-47010-E6iNSP141..F201712

PLUM,TRIM0#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-47010-A3iNSP141..F201507-201712

FROMAGE,TRIM0#

main71538-47010-C0iNSP141201507

BLACK,TRIM4#

main71538-47010-E6iNSP141..F201712

PLUM,TRIM0#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-52C20iNSP141..F201507

main71551-52E20iNSP141..Y201507

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-52190iNSP141..F201507

main71610-52200iNSP141..Y201507

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-52600iNSP141..F201507

main71630-52750iNSP141..Y201507-201508

main71630-52751iNSP141..Y201509

71759BHOOK, FRONT SEATBACK

main71759-B2020-A1iNSP141..F201507-201712

FROMAGE,TRIM0#

main71759-B2020-C0iNSP141201507

BLACK,TRIM4#

main71759-B2020-L0iNSP141..F201712

PLUM,TRIM0#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-68020-A0iNSP141..F201507-201712

FROMAGE,TRIM0#

main71811-68020-C0iNSP141201507

BLACK,TRIM4#

main71811-68020-E1iNSP141..F201712

PLUM,TRIM0#

71811RCLIP, FRONT SEAT CUSHION SHIELD, RH

main71769-47020iNSP141201507

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-68010×2iNSP141201507

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52290-C0iNSP141..Y201507

BLACK,TRIM4#

main71861-68010-A0iNSP141..F201507-201712

FROMAGE,TRIM0#

main71861-68010-C0iNSP141..F201507

BLACK,TRIM4#

main71861-68010-E1iNSP141..F201712

PLUM,TRIM0#

71861BCLIP(FOR FRONT SEAT SHIELD, RH)

main71769-47020iNSP141201507

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040iNSP141201507

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-68020iNSP141201507

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040iNSP141201507

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47030-A2iNSP141..F201507-201712

FROMAGE,TRIM0#

main71875-47030-C0iNSP141201507

BLACK,TRIM4#

main71875-47030-E5iNSP141..F201712

PLUM,TRIM0#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-47030-A2iNSP141..F201507-201712

FROMAGE,TRIM0#

main71876-47030-C0iNSP141201507

BLACK,TRIM4#

main71876-47030-E5iNSP141..F201712

PLUM,TRIM0#

71910AHEADREST ASSY, FRONT SEAT

main71910-52E60-A0iNSP141..F201507-201712

FROMAGE,TRIM0#

main71910-52E60-A1iNSP141..F201712-201811

FROMAGE,TRIM0#

main71910-52E60-A2iNSP141..F201811-202012

FROMAGE,TRIM0#

main71910-52E60-C2iNSP141..F201507-201811

BLACK,TRIM4#

main71910-52E60-C4iNSP141..F201811-202012

BLACK,TRIM4#

main71910-52E70-C0iNSP141..Y201507-201811

BLACK,TRIM4#

main71910-52E70-C1iNSP141..Y201811-202012

BLACK,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A6iNSP141..F201507-201712

W(LOCK),FROMAGE,TRIM0#

main71930-47020-C0iNSP141201507

W(LOCK),BLACK,TRIM4#

main71930-47020-L1iNSP141..F201712

W(LOCK),NOBLE BROWN,TRIM0#

main71931-47020-A6iNSP141..F201507-201712

W/O(LOCK),FROMAGE,TRIM0#

main71931-47020-C0iNSP141201507

W/O(LOCK),BLACK,TRIM4#

main71931-47020-L1iNSP141..F201712

W/O(LOCK),NOBLE BROWN,TRIM0#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-68020iNSP141201507

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-68010-A0iNSP141..F201507-201712

FROMAGE,TRIM0#

main72494-68010-C0iNSP141201507-201710

BLACK,TRIM4#

main72494-68010-C1iNSP141201710

BLACK,TRIM4#

main72494-68010-E1iNSP141..F201712

PLUM,TRIM0#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-A2iNSP141..F201507-201712

FROMAGE,TRIM0#

main72525-47010-C0iNSP141201507-201710

BLACK,TRIM4#

main72525-47010-C1iNSP141201710

BLACK,TRIM4#

main72525-47010-E5iNSP141..F201712

PLUM,TRIM0#

72877COVER, SEAT ARMREST, RH

main71877-68010-A0iNSP141..F201507-201712

FROMAGE,TRIM0#

main71877-68010-C0iNSP141..F201507

BLACK,TRIM4#

main71877-68010-E2iNSP141..F201712

PLUM,TRIM0#

72880ARMREST ASSY, SEAT, C RH

main72810-52200-A0iNSP141..F201507-201712

FROMAGE,TRIM0#

main72810-52200-C0iNSP141..F201507

BLACK,TRIM4#

main72810-52200-E0iNSP141..F201712

PLUM,TRIM0#

5118652060

main51186-52060

7226552030COVER, SEAT TRACK UPPER RAIL, RH

main72265-52030

7226552040COVER, SEAT TRACK UPPER RAIL, RH

main72265-52040

7270228080BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-28080

9011910601

main90119-10601

9016740044

main90167-40044

9016850078

main90168-50078

9020115015

main90201-15015

9418560600

main94185-60600

9454201400

main94542-01400

37 parts on this diagram · 5 diagrams in section
