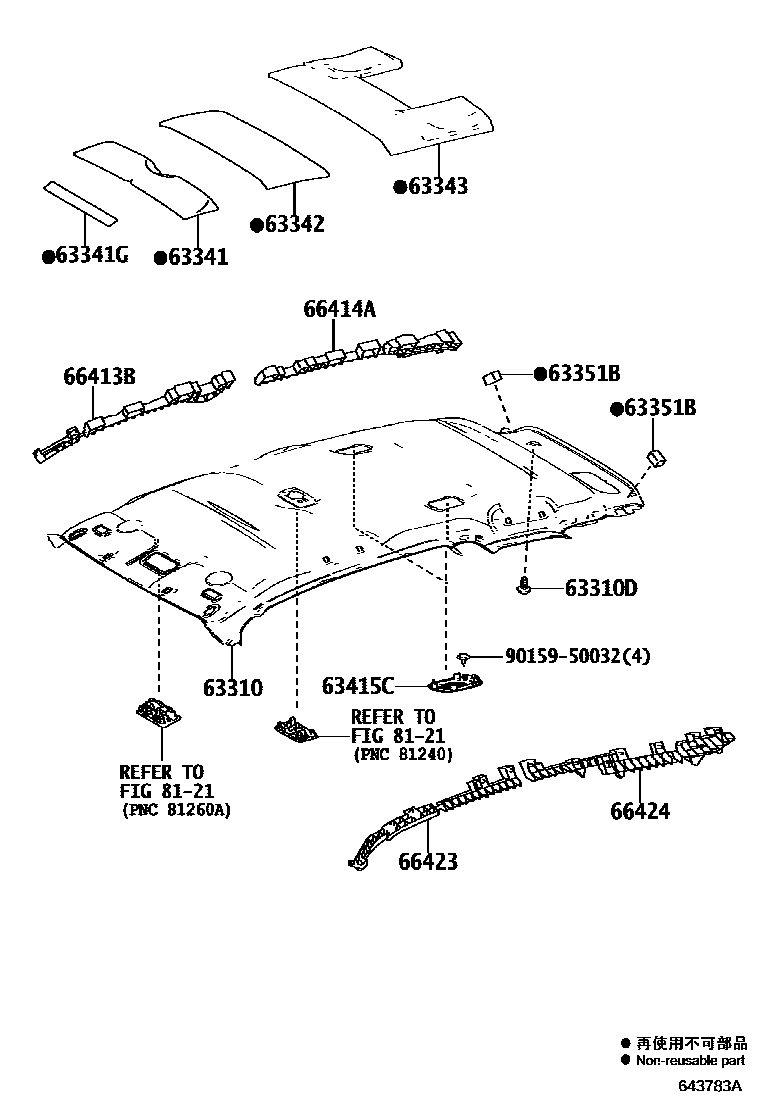

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-52M00-B0iNSP141..F; NSP141..Y201507-201607

LT.GRAY,TRIM0#,4#; LT.GRAY,TRIM4#

main63310-52M01-B0iNSP141..F; NSP141..Y201607

LT.GRAY,TRIM0#,4#; LT.GRAY,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-05164-B0iNSP141..F; NSP141..Y201507

LT.GRAY,TRIM0#,4#; LT.GRAY,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-52330iNSP141201507

63341GPAD, ROOF SILENCER

main63341-58040iNSP141201507

63342PAD, ROOF SILENCER, NO.2

main63342-52210iNSP141201507-202012

63343PAD, ROOF SILENCER, NO.3

main63343-52130iNSP141201507-202012

63351BPAD, ROOF HEADLINING

main63351-52130×2iNSP141201507

63415CGRILLE, ROOF SPEAKER, RH

main63415-52010-B0×2iNSP141..F; NSP141..Y201507

LT.GRAY,TRIM0#,4#; LT.GRAY,TRIM4#

66413BSPACER, SIDE RAIL, FRONT RH

main66413-52260iNSP141201507

66414ASPACER, SIDE RAIL, REAR RH

main66414-52370iNSP141201507

66423SPACER, SIDE RAIL, FRONT LH

main66423-52260iNSP141201507

66424SPACER, SIDE RAIL, REAR LH

main66424-52360iNSP141201507

8121INTERIOR LAMP

→ Go to FIG 81-21

9015950032

main90159-50032

14 parts on this diagram · 1 diagram in section
