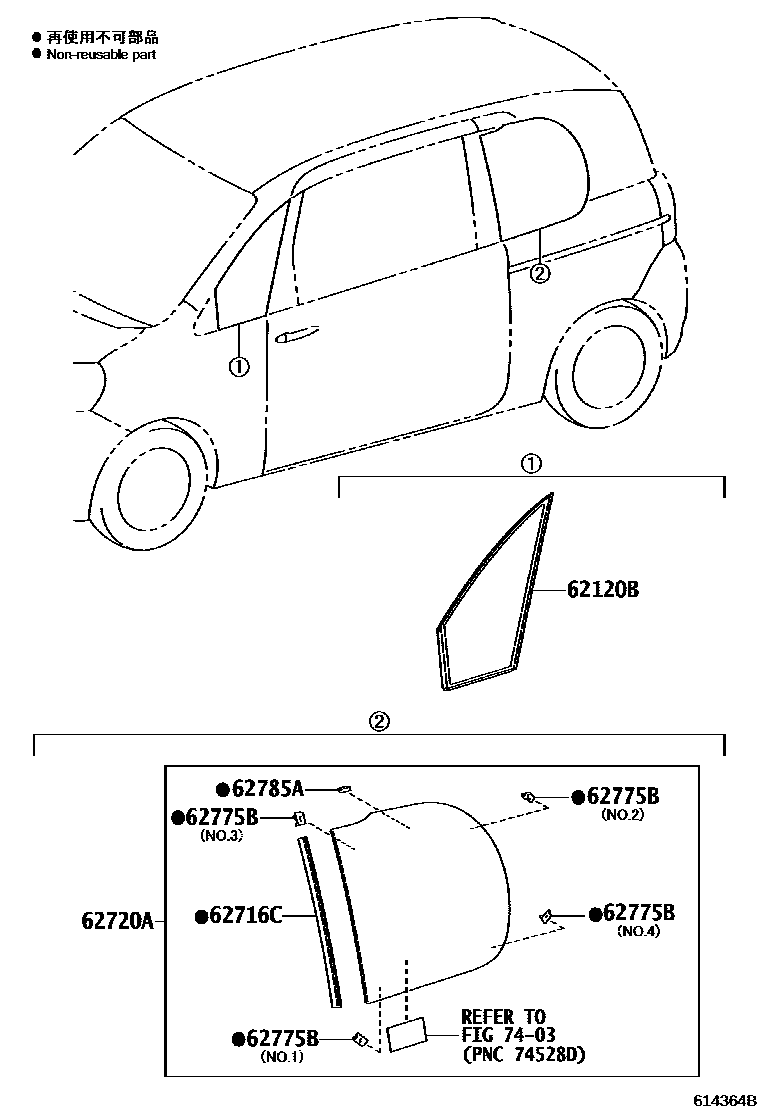

QUARTER WINDOW

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-52080iNSP141201507

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main62716-52050iNSP141201507

62720AWINDOW ASSY, QUARTER, LH

main62720-52280iNSP141201507

62775BCLIP, QUARTER WINDOW, LH

main62775-52070iNSP141201507

NO.1

main62775-52080iNSP141201507

NO.2

main62775-52090iNSP141201507

NO.3

main62775-52100iNSP141201507

NO.4

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iNSP141201507

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

6 parts on this diagram · 1 diagram in section
