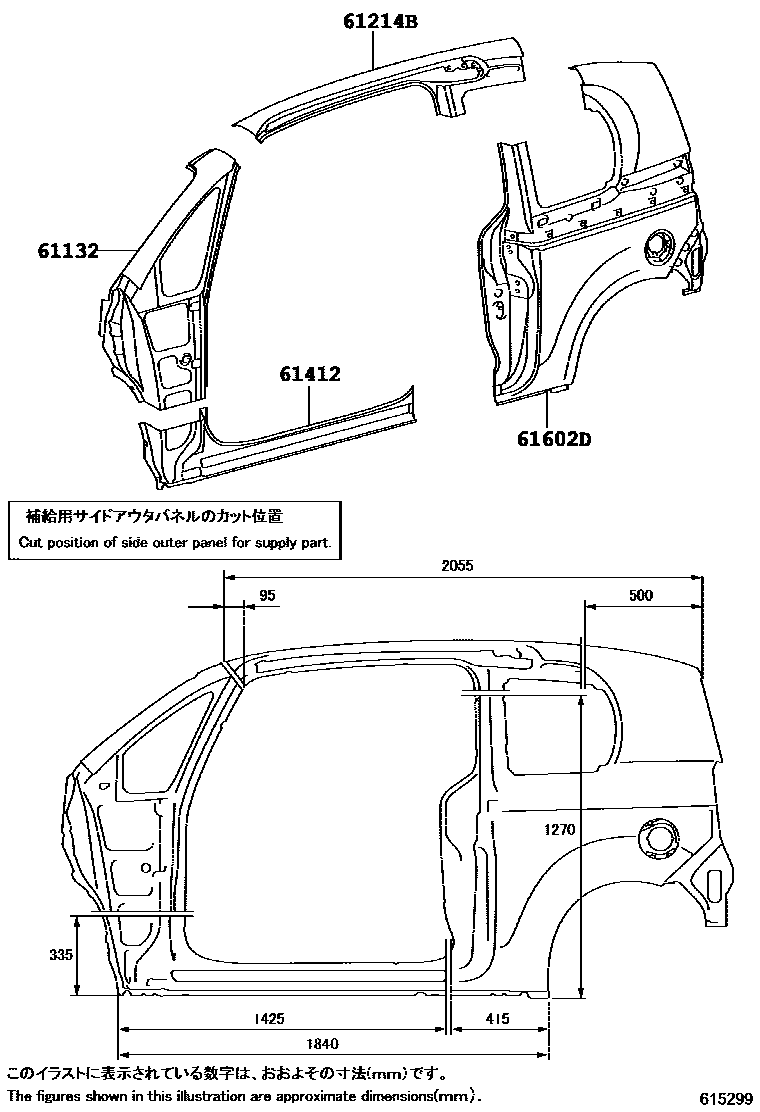

SIDE MEMBER

0001 1OUTER PANEL,RH 0002 1OUTER PANEL,LH 0003 1INNER PANEL,RH 0004 1INNER PANEL,LH

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61107-52030iNSP141201507

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-52220iNSP141201507

61412PANEL, ROCKER, OUTER LH

main61412-52340iNSP141201507

61602DPANEL SUB-ASSY, QUARTER, OUTER LH

main61602-52690iNSP141201507

4 parts on this diagram · 4 diagrams in section
