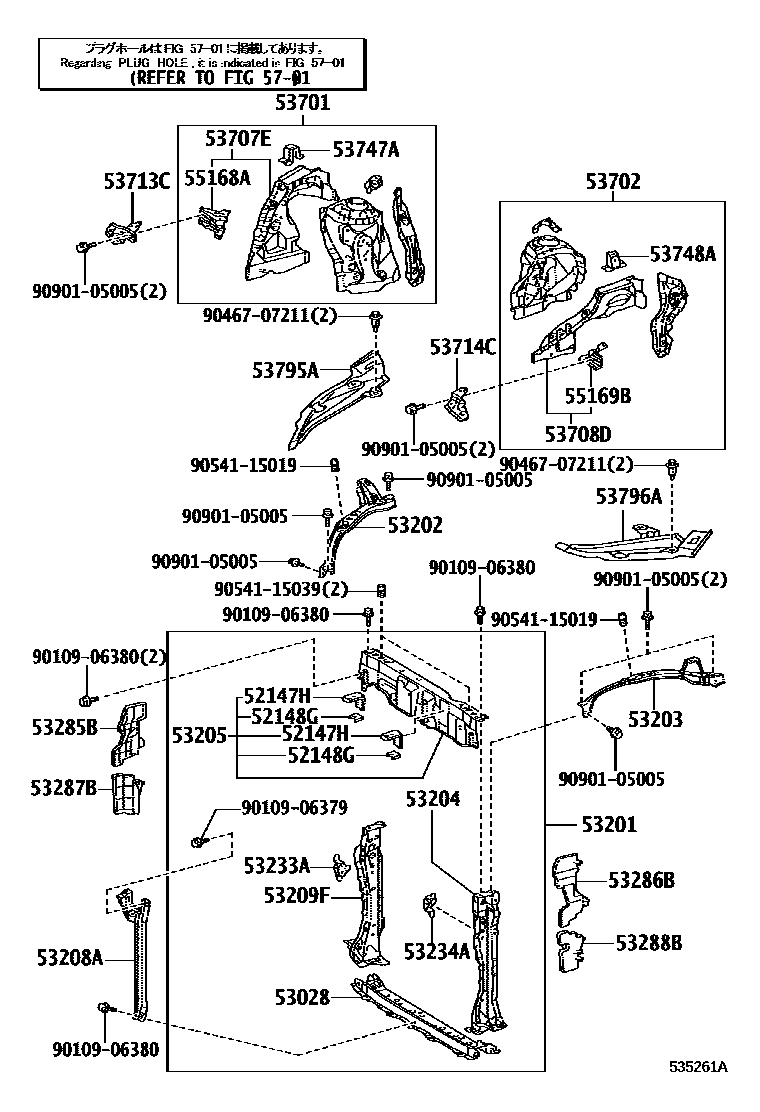

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT&FRONT FENDER0002 1DASH PANEL

52147HBRACKET, FRONT BUMPER MOUNTING

main52147-12200×2iNSP141201507

52148GBRACKET, FRONT BUMPER MOUNTING, NO.2

main52148-12160×2iNSP141201507

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-52091iNSP141201507

53201SUPPORT SUB-ASSY, RADIATOR

main53210-52915iNSP141201507

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52250iNSP141201507

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52240iNSP141201507

53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER

main53204-52020iNSP141201507

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52909iNSP141201507

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-52140iNSP141201507

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-52020iNSP141201507

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-52070iNSP141201507

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-52080iNSP141201507

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52450iNSP141201507

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52370iNSP141201507

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52210iNSP141201507

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52200iNSP141201507

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52220iNSP141201507

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52220iNSP141201507

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-52060iNSP141201507

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-52060iNSP141201507

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52100iNSP141201507

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52130iNSP141201507

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-52100iNSP141201507

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-52100iNSP141201507

53795ACOVER, ENGINE ROOM, SIDE

main53795-52040iNSP141201507

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-52010iNSP141201507

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130iNSP141201507

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130iNSP141201507

5701

9010906379

main90109-06379

9010906380

main90109-06380

9046707211

main90467-07211

9054115019

main90541-15019

9054115039

main90541-15039

9090105005

main90901-05005

35 parts on this diagram · 2 diagrams in section
