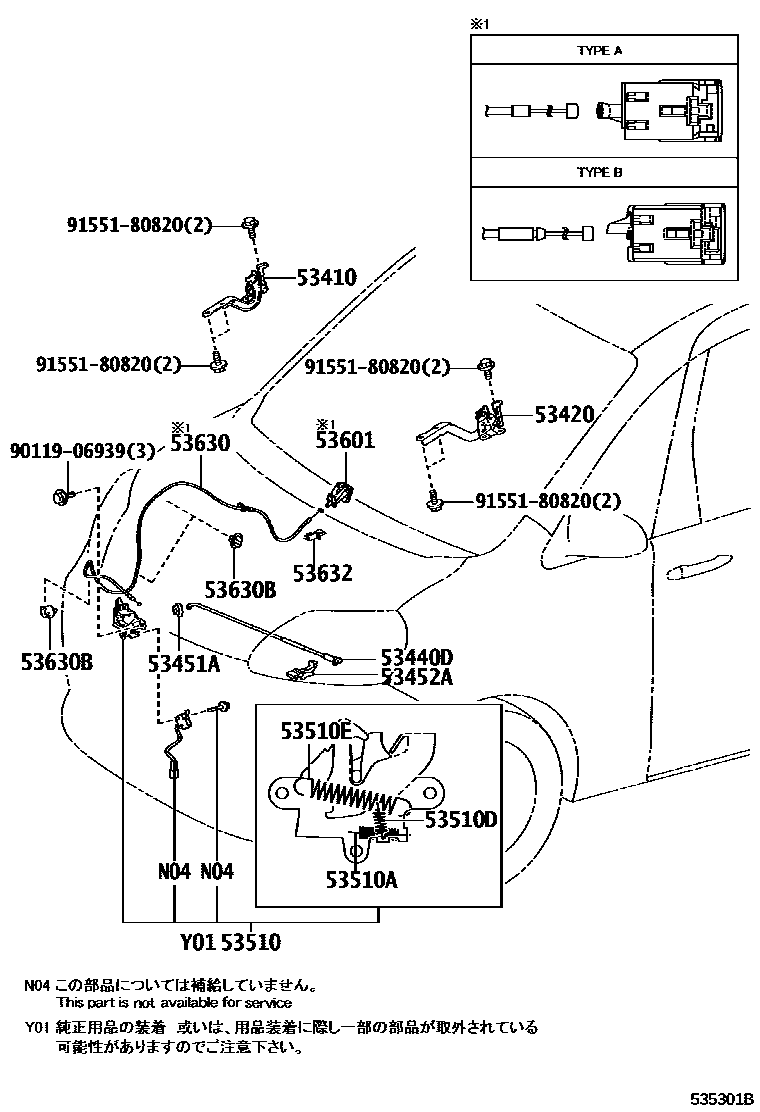

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440DSUPPORT ASSY, HOOD
53451AGROMMET(FOR HOOD SUPPORT ROD)
53452AHOLDER, HOOD STAY
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.6,CW=12
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
PLUM,TRIM0#,4#,TYPE B:REFER ILLUST.; PLUM,TRIM4#,TYPE B:REFER ILLUST.
PLUM,TRIM0#,4#,TYPE A:REFER ILLUST.; PLUM,TRIM4#,TYPE A:REFER ILLUST.
53630CABLE ASSY, HOOD LOCK CONTROL
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
53632HOLDER, HOOD LOCK CONTROL CABLE
9011906939
main90119-06939
9155180820
main91551-80820
15 parts on this diagram · 1 diagram in section
