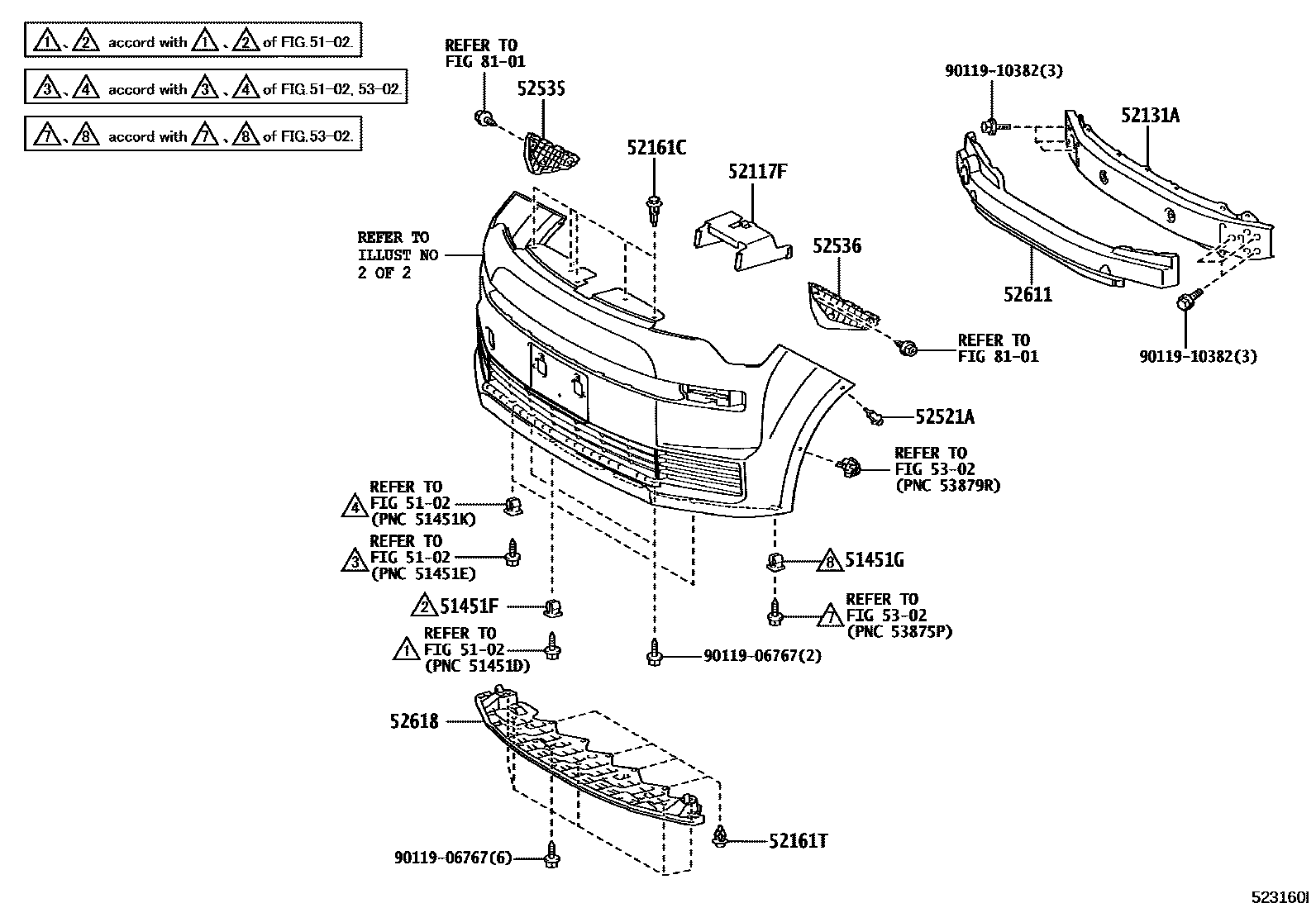

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451FGROMMET, NO.1

main90189-06193iNSP141201507

51451GGROMMET, NO.2

main90189-06193×2iNSP141201507

52117FSUPPORT, FRONT BUMPER, UPPER

main52117-52020iNSP141201507

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNSP141201507

52161CPIECE, FRONT BUMPER

main52161-16010×5iNSP141201507

52161TPIECE, FRONT BUMPER

main90467-10216×4iNSP141201507

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170×2iNSP141201507

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52160iNSP141201507

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52120iNSP141201507

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52091iNSP141201507

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52070iNSP141201507

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

8101HEADLAMP

→ Go to FIG 81-01

9011906767

main90119-06767

9011910382

main90119-10382

16 parts on this diagram · 2 diagrams in section
