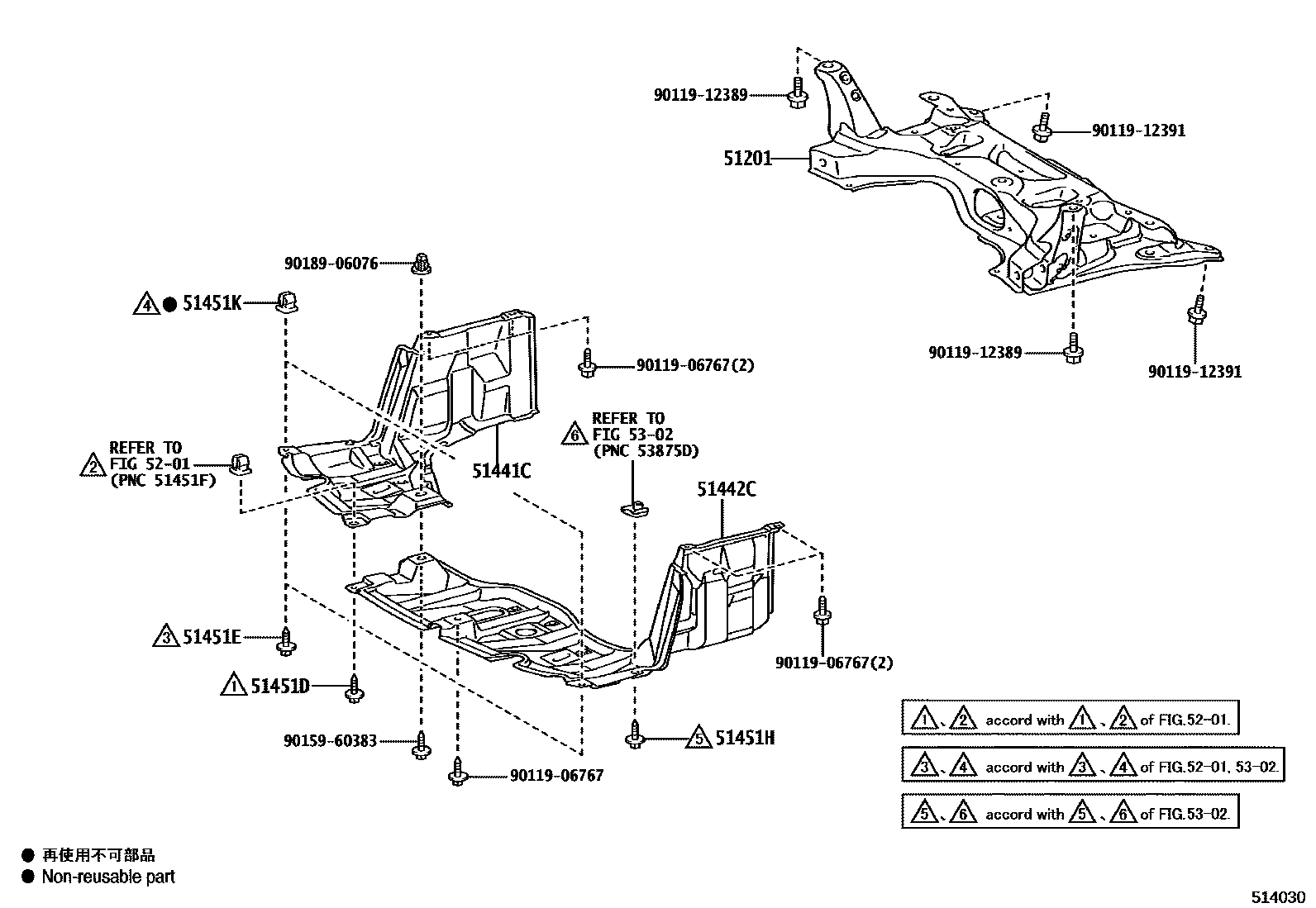

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52087iNSP141201507

51441CCOVER, ENGINE UNDER, RH

main51441-52330iNSP141201507

51442CCOVER, ENGINE UNDER, LH

main51442-52160iNSP141201507

51451DSCREW, NO.1

main90159-60383iNSP141201507

51451ESCREW, NO.2

main90159-60383×2iNSP141201507

51451HSCREW, NO.3

main90159-60383×2iNSP141201507

51451KGROMMET, SCREW, NO.1

main90189-06193×2iNSP141201507

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011906767

main90119-06767

9011912389

main90119-12389

9011912391

main90119-12391

9015960383

main90159-60383

9018906076

main90189-06076

14 parts on this diagram · 1 diagram in section
