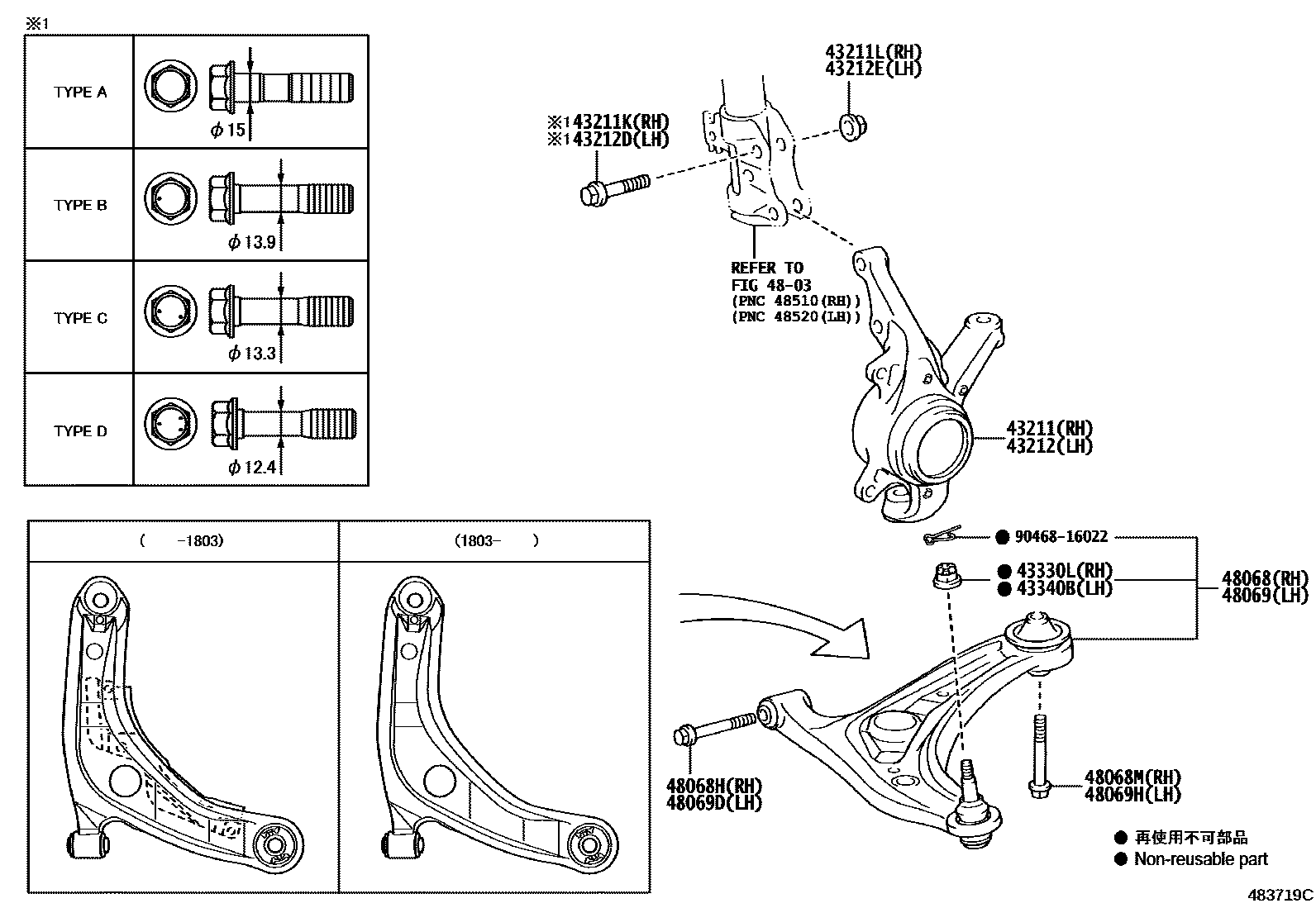

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52050iNSP141201507

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001iNSP141201507

OD=15,TYPE A:REFER ILLUST.

main90109-15002iNSP141201507

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNSP141201507

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNSP141201507

OD=12.4,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004iNSP141201507

43212KNUCKLE, STEERING, LH

main43212-52050iNSP141201507

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001iNSP141201507

OD=15,TYPE A:REFER ILLUST.

main90109-15002iNSP141201507

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNSP141201507

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNSP141201507

OD=12.4,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004iNSP141201507

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNSP141201507

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNSP141201507

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59145iNSP141201507-201803

main48068-59155iNSP141201803

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iNSP141201507

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14151iNSP141201507

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59135iNSP141201507-201803

main48069-59145iNSP141201803

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iNSP141201507

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14151iNSP141201507

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
