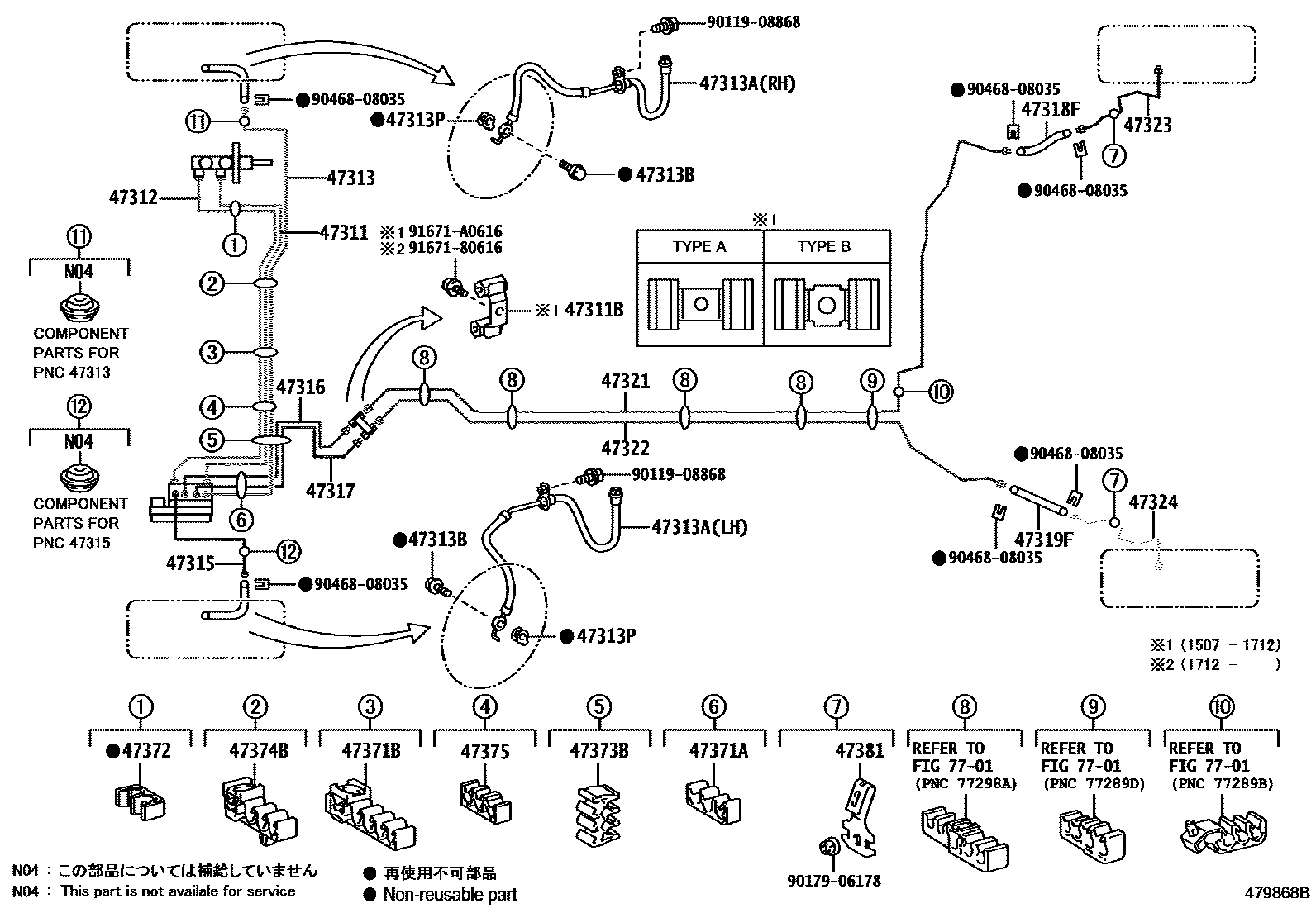

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-52610iNSP141201507-201712

main47311-52630iNSP141201712

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iNSP141201507-201712

TYPE A:REFER ILLUST.

main90412-10285iNSP141201507

TYPE B:REFER ILLUST.

47312TUBE, FRONT BRAKE, NO.2

main47312-52420iNSP141201507-201712

main47312-52720iNSP141201712

47313TUBE, FRONT BRAKE, NO.3

main47313-52231iNSP141201507-201712

main47313-52350iNSP141201712

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H35iNSP141201507-201707

RH

main90947-02H36iNSP141201507-201707

LH

main90947-02H71iNSP141201708

RH

main90947-02H72iNSP141201708

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNSP141201507

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNSP141201507

47315TUBE, FRONT BRAKE, NO.5

main47315-52231iNSP141201507-201712

main47315-52300iNSP141201712

47316TUBE, FRONT BRAKE, NO.6

main47316-52191iNSP141201507-201712

main47316-52280iNSP141201712

47317TUBE, FRONT BRAKE, NO.7

main47317-52191iNSP141201507-201712

main47317-52290iNSP141201712

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H31iNSP141201507

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H32iNSP141201507

47321TUBE, REAR BRAKE, NO.1

main47321-12381iNSP141201507

47322TUBE, REAR BRAKE, NO.2

main47322-12541iNSP141201507

47323TUBE, REAR BRAKE, NO.3

main47323-52131iNSP141201507

47324TUBE, REAR BRAKE, NO.4

main47324-52121iNSP141201507

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D92iNSP141201507

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D97iNSP141201507

47372CLAMP, BRAKE TUBE, NO.2

main90464-00899iNSP141201507-201712

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D98iNSP141201507

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D94iNSP141201507

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D93iNSP141201507

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-52020×2iNSP141201507

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9017906178

main90179-06178

9046808035

main90468-08035

9167180616

main91671-80616

91671A0616

main91671-A0616

29 parts on this diagram · 2 diagrams in section
