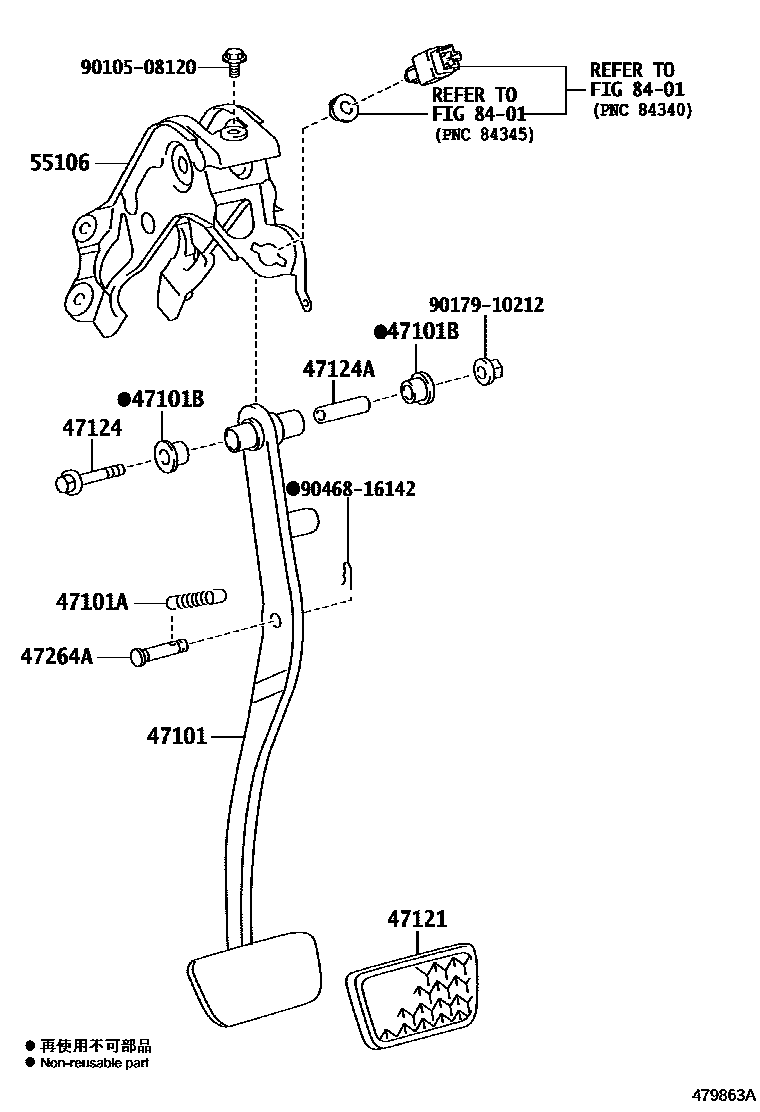

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52241iNSP141201507

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iNSP141201507

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNSP141201507

47121PAD, BRAKE PEDAL

main47121-52020iNSP141201507

47124SHAFT, BRAKE PEDAL

main91552-81055iNSP141201507

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNSP141201507

47264APIN(FOR PUSH ROD)

main90249-08051iNSP141201507

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52131iNSP141201507

8401

9010508120

main90105-08120

9017910212

main90179-10212

9046816142

main90468-16142

12 parts on this diagram · 1 diagram in section
