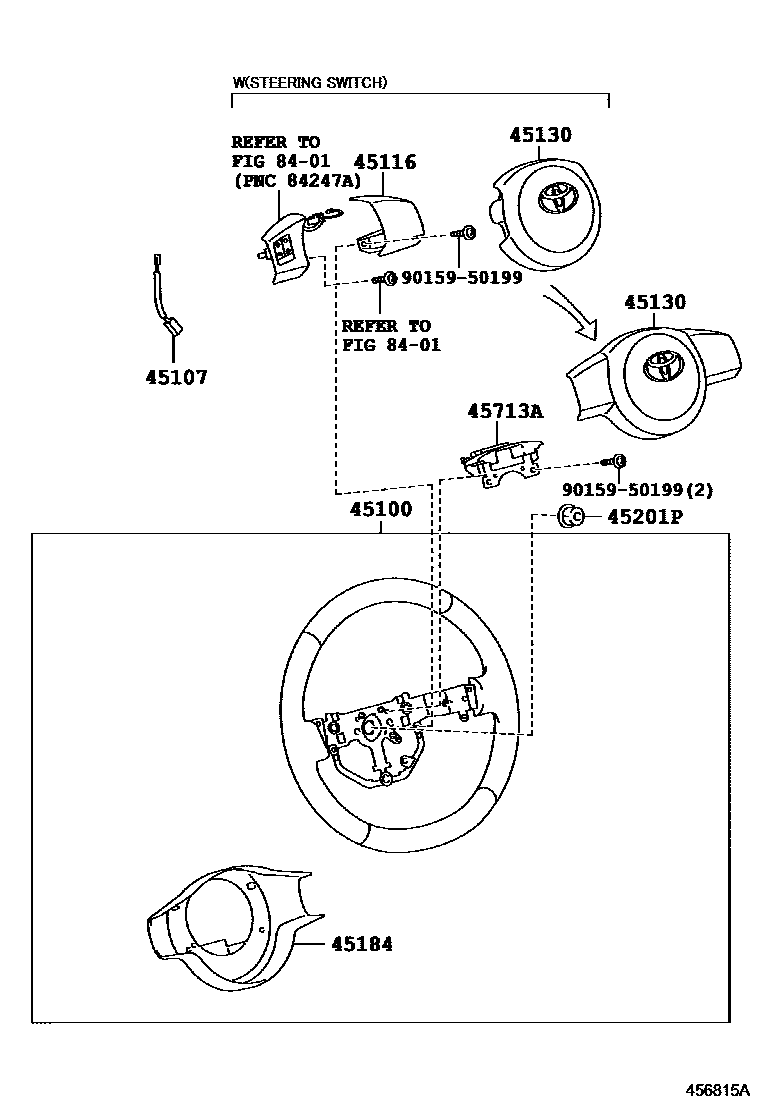

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52570-C0iNSP141..Y201507

2-SPOKE, URETHANE,BLACK,TRIM4#

main45100-52590-C0iNSP141..F201507-201905

2-SPOKE, LEATHER,BLACK,TRIM4#

main45100-52590-E0iNSP141..F201507-201905

2-SPOKE, LEATHER,PLUM,TRIM0#

main45100-52591-C0iNSP141..F201906

2-SPOKE, LEATHER,BLACK,TRIM4#

main45100-52591-E0iNSP141..F201906

2-SPOKE, LEATHER,PLUM,TRIM0#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-48010iNSP141..Y201507

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52120-C0iNSP141..F201507

BLACK,TRIM4#

main45116-52120-E0iNSP141..F201507

PLUM,TRIM0#

45130BUTTON ASSY, HORN

main45130-52690-C0iNSP141..Y201507

BLACK,TRIM4#

main45130-52700-A0iNSP141..F201507

FROMAGE,TRIM0#

main45130-52700-C0iNSP141..F201507

BLACK,TRIM4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-52170-C0iNSP141201507

BLACK,TRIM4#

main45184-52170-E0iNSP141..F201507

PLUM,TRIM0#

45201PNUT, STEERING WHEEL SET

main90179-12071iNSP141201507

45713ADAMPER, STEERING SHAKE

main45713-33210iNSP141201507

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
