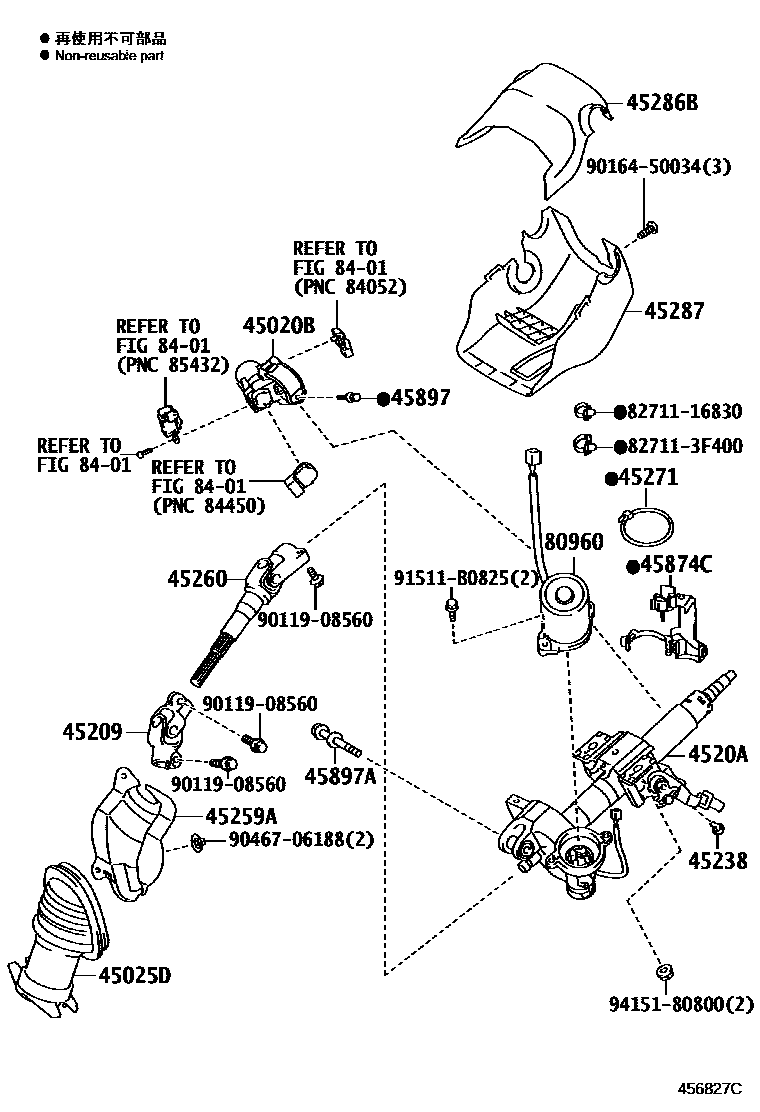

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-52100iNSP141201507

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52170iNSP141201507

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52050iNSP141201507

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52250iNSP141201507

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP141201507

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iNSP141201507

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52320iNSP141201507

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iNSP141201507

45286BCOVER, STEERING COLUMN, UPR

main45286-52160-C0iNSP141201507-201704

BLACK,TRIM4#

main45286-52160-E0iNSP141..F201507-201704

PLUM,TRIM0#

main45286-52180-C0iNSP141201705

BLACK,TRIM4#

main45286-52180-E0iNSP141..F201705

PLUM,TRIM0#

45287COVER, STEERING COLUMN, LWR

main45024-52050-C0iNSP141201511

BLACK,TRIM4#

main45024-52050-E0iNSP141..F201511

PLUM,TRIM0#

main45287-52260-C0iNSP141201507-201510

BLACK,TRIM4#

main45287-52260-E0iNSP141..F201507-201510

PLUM,TRIM0#

45874CPROTECTOR, STEERING COLUMN, NO.1

main45874-52040iNSP141201507

45897BOLT, STEERING LOCK SET

main45897-12020iNSP141201507

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iNSP141201507-201706

main90119-10981iNSP141201707

80960MOTOR ASSY, POWER STEERING

main80960-52110iNSP141201507

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F400

9011908560

main90119-08560

9016450034

main90164-50034

9046706188

main90467-06188

91511B0825

main91511-B0825

9415180800

main94151-80800

22 parts on this diagram · 1 diagram in section
