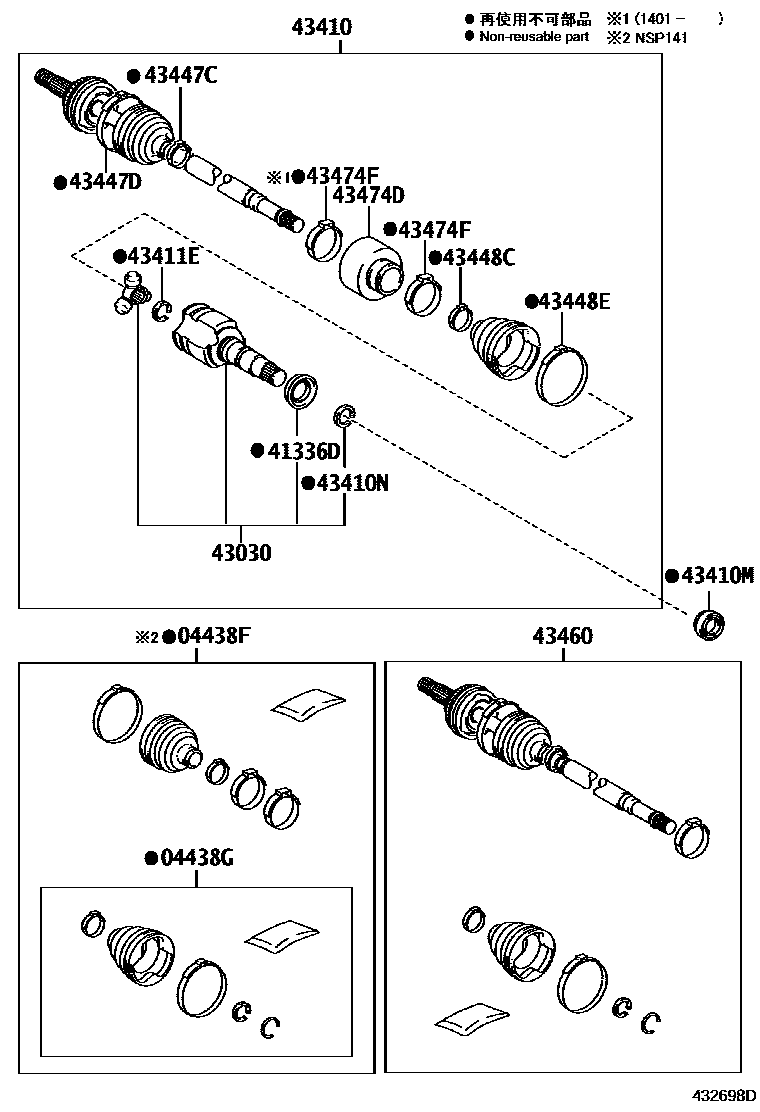

FRONT DRIVE SHAFT

0001 1 0002 1 0003 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-52893iNSP141201507-201904

sub04427-52896

main04427-52894iNSP141201904

sub04427-52896

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52191iNSP141201507-201904

main04437-52192iNSP141201904

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNSP141201507

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-10011iNSP141201507

sub43403-0W031

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52270iNSP141201507-201904

main43410-52271iNSP141201904

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34046iNSP141201507-201808

main90311-34050iNSP141201808

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iNSP141201507

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iNSP141201507-201904

main90520-22029iNSP141201904

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52260iNSP141201507

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52250iNSP141201507

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iNSP141201507

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01146iNSP141201507

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59667iNSP141201507-201904

main43460-59668iNSP141201904

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030iNSP141201507

NO.1

main43474-52080iNSP141201507

NO.2

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12090×4iNSP141201904

main42345-14010×4iNSP141201507-201904

15 parts on this diagram · 3 diagrams in section
