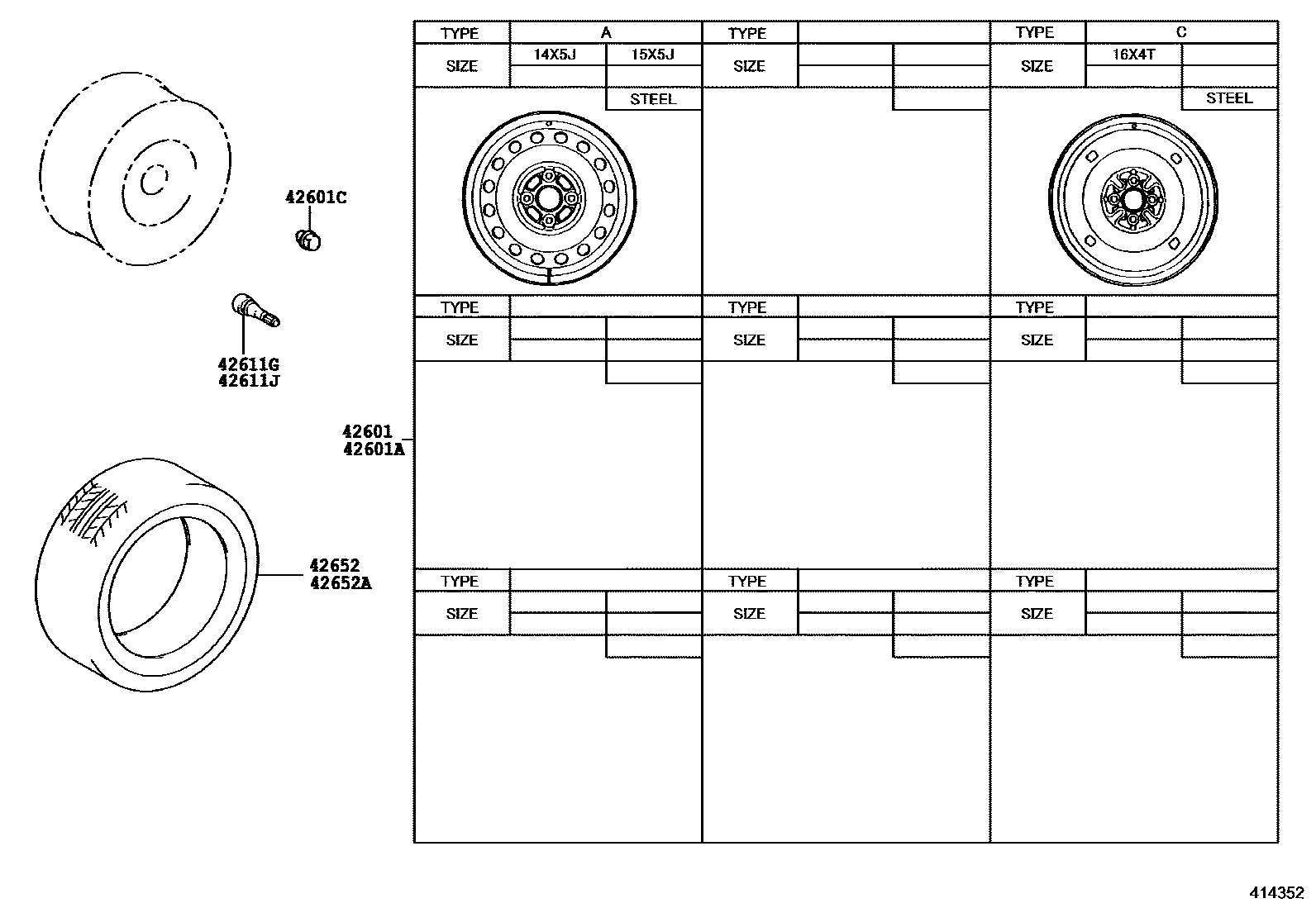

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-52770iNSP141201507

15X5J, #,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-52400iNSP141201507

16X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007iNSP141201507

TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iNSP141201507

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNSP141201507

42652TIRE

main42652-12J00iNSP141201507

175/65R15,*D/L

42652ATIRE (FOR SPARE)

main42652-13120iNSP141201507

T125/70D16,*D/L

7 parts on this diagram · 3 diagrams in section
