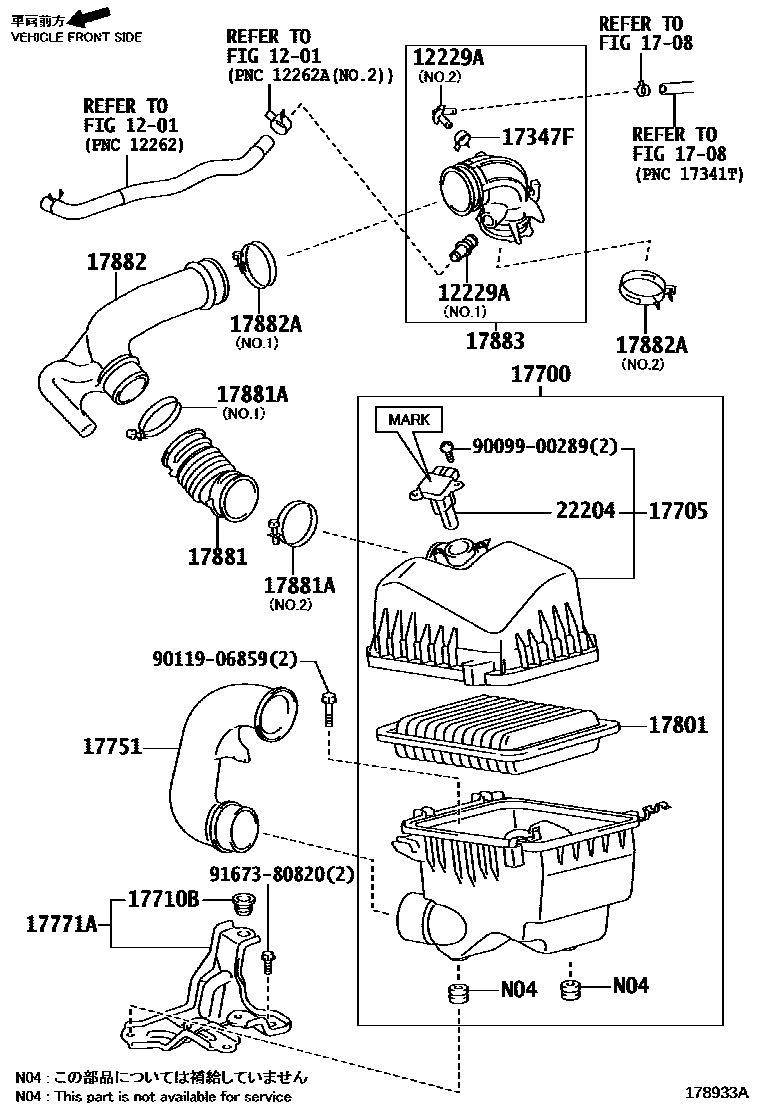

AIR CLEANER
1201
12229APIPE, VENTILATION
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
1708
17347FCLAMP OR CLIP(FOR AIR HOSE)
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
17883HOSE, AIR CLEANER, NO.3
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0V020
MARK 22204-28010
9009900289
main90099-00289
9011906859
main90119-06859
9167380820
main91673-80820
19 parts on this diagram · 1 diagram in section
