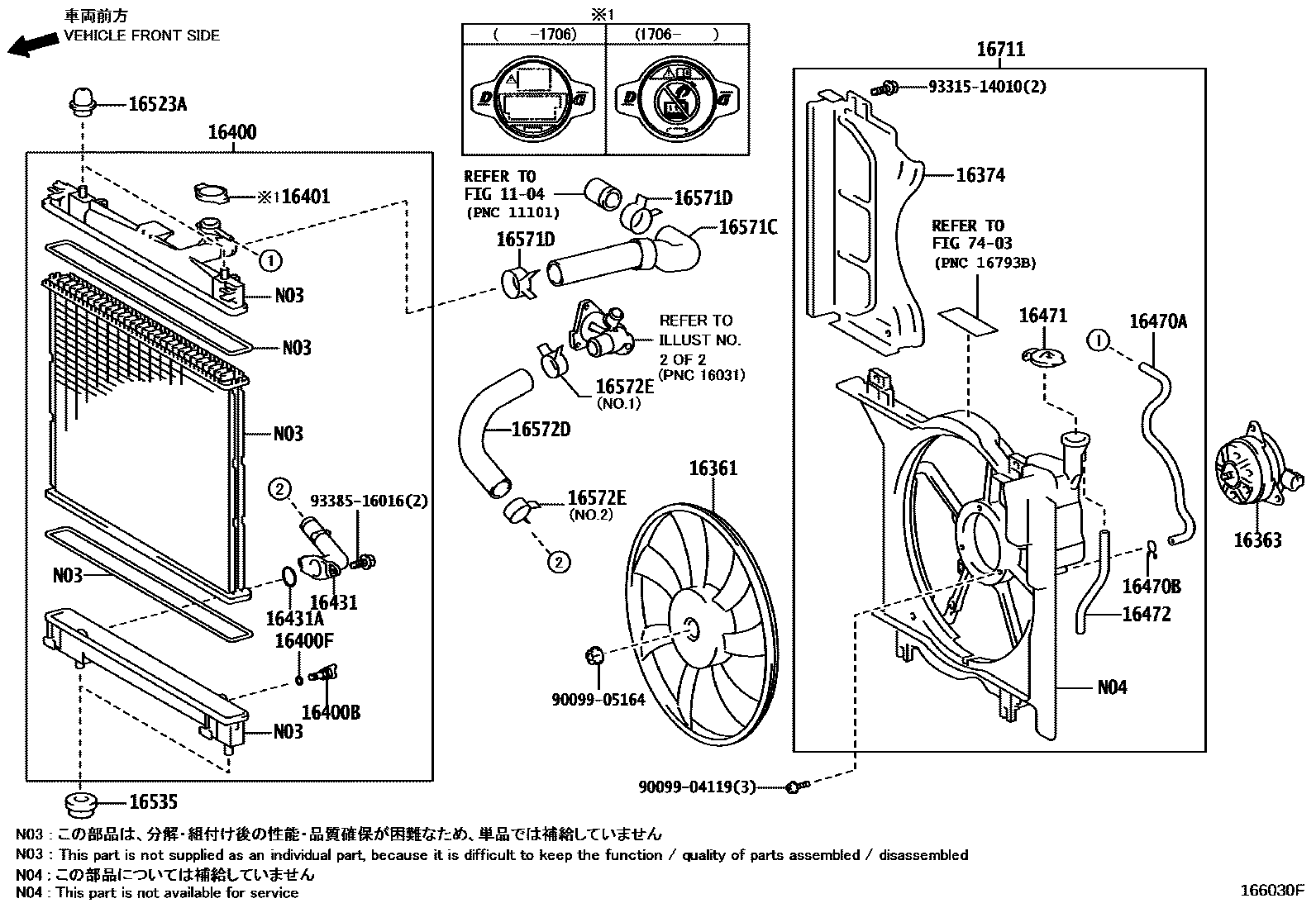

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1ENGINE SIDE

1104

16361FAN

main16361-47040i2NRFKE..NSP141201507

16363MOTOR, COOLING FAN

main16363-47020i2NRFKE..NSP141201507

16374INSULATOR, COOLING FAN MOTOR

main16366-47070i2NRFKE..NSP141201507

16400RADIATOR ASSY

main16400-47090i2NRFKE..NSP141201507-201606

sub16400-47141

main16400-47140i2NRFKE..NSP141201607-201801

sub16400-47141

main16400-47141i2NRFKE..NSP141201802

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i2NRFKE..NSP141201507

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2NRFKE..NSP141201507

16401CAP SUB-ASSY, RADIATOR

main16401-31520i2NRFKE..NSP141201507-201706

sub16401-36020

main16401-36020i2NRFKE..NSP141201706

16431INLET, RADIATOR WATER

main16431-47090i2NRFKE..NSP141201507

16431ARING, O(FOR RADIATOR WATER INLET)

main16492-6A300i2NRFKE..NSP141201507

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-47070i2NRFKE..NSP141201507

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2NRFKE..NSP141201507

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i2NRFKE..NSP141201507

16472HOSE, BREATHER

main90445-12078i2NRFKE..NSP141201507

L=600(*H,L=185)

16523ACUSHION, RADIATOR SUPPORT

main16523-21030i2NRFKE..NSP141201507

16535SUPPORT, RADIATOR, LOWER

main90480-22025i2NRFKE..NSP141201507

16571CHOSE, RADIATOR, NO.1

main16571-47080i2NRFKE..NSP141201507-201711

sub16571-47130

main16571-47120i2NRFKE..NSP141201712

16571DCLIP, RADIATOR HOSE, NO.1

main90467-33006i2NRFKE..NSP141201507

16572DHOSE, RADIATOR, NO.2

main16572-47120i2NRFKE..NSP141201507-201801

sub16572-47121

main16572-47121i2NRFKE..NSP141201802

16572ECLIP, RADIATOR HOSE, NO.2

main90467-33006i2NRFKE..NSP141201507

NO.1

main90467-34004i2NRFKE..NSP141201507

NO.2

16711SHROUD, FAN

main16711-47080i2NRFKE..NSP141201507

7403

9009904119

main90099-04119

9009905164

main90099-05164

9331514010

main93315-14010

9338516016

main93385-16016

26 parts on this diagram · 2 diagrams in section
