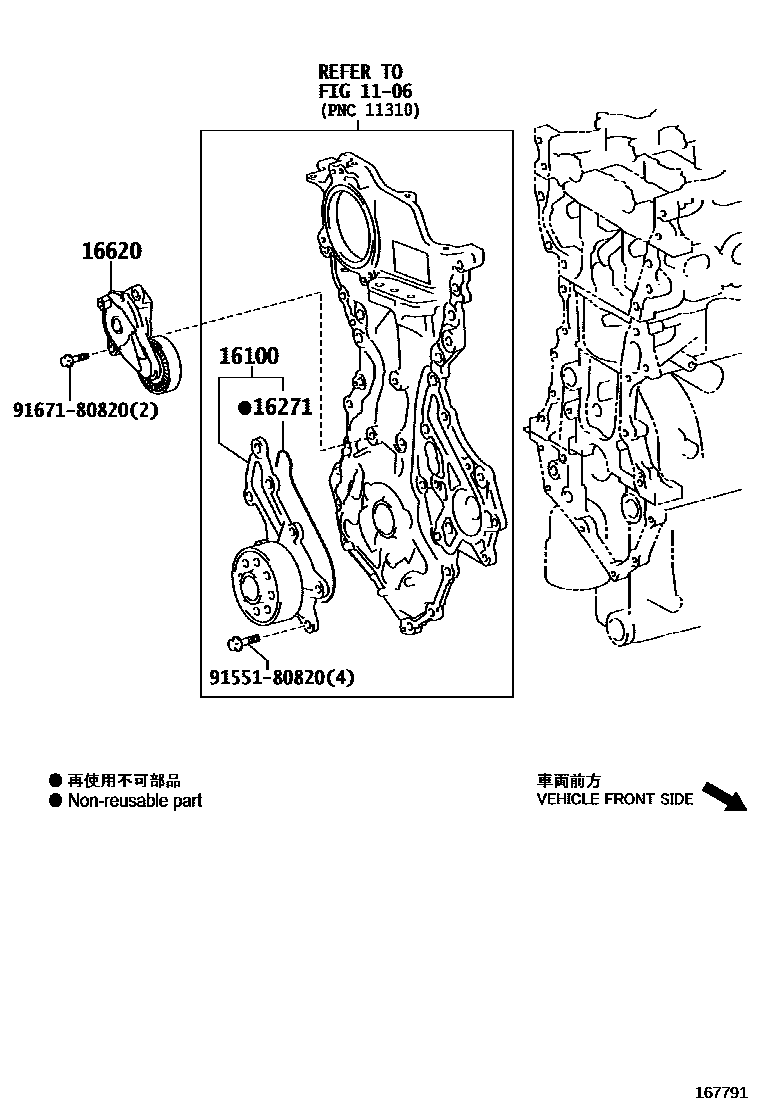

WATER PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-80013i2NRFKE..NSP141201507

16271GASKET, WATER PUMP

main16271-0Y030i2NRFKE..NSP141201507

16620TENSIONER ASSY, V-RIBBED BELT

main16620-47030i2NRFKE..NSP141201507-202006

main16620-47031i2NRFKE..NSP141202007

9155180820

main91551-80820

9167180820

main91671-80820

6 parts on this diagram · 1 diagram in section
