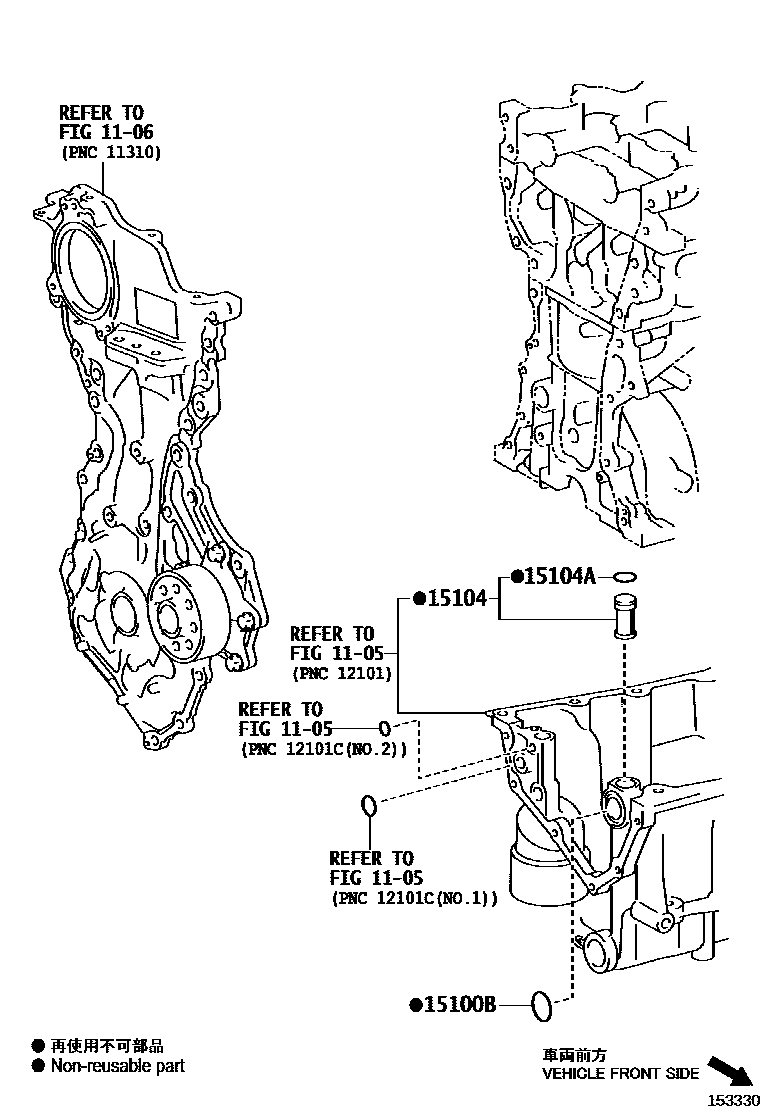

ENGINE OIL PUMP

1105CYLINDER BLOCK

→ Go to FIG 11-05

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15100BRING, O(FOR OIL PUMP)

main90301-27014i2NRFKE..NSP141201507

15104STRAINER SUB-ASSY, OIL

main15104-47060i2NRFKE..NSP141201507

15104ARING, O(FOR OIL STRAINER)

main96723-19018i2NRFKE..NSP141201507

5 parts on this diagram · 1 diagram in section
