ENGINE OVERHAUL GASKET KIT

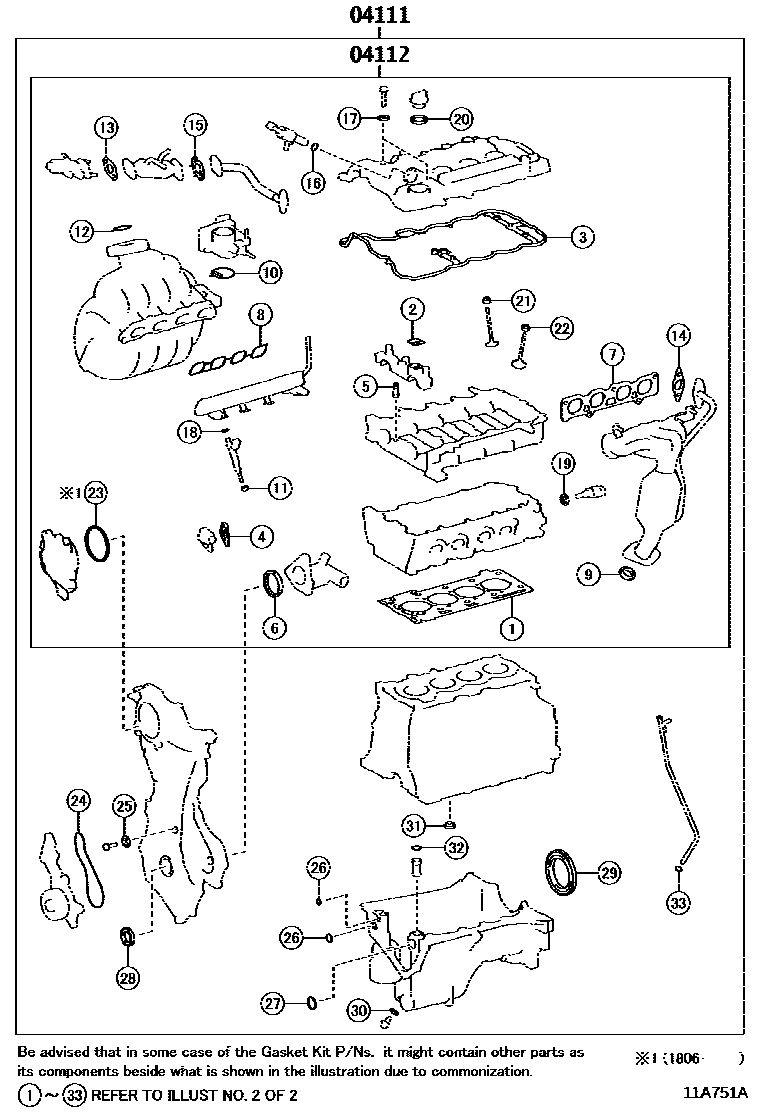

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-47260i201507-201806

main04111-47261i201806-202002

main04111-47262i202002

04112GASKET KIT, ENGINE VALVE GRIND

main04112-47170i201507-201806

main04112-47171i201806-202002

main04112-47172i202002

2 parts on this diagram · 2 diagrams in section
