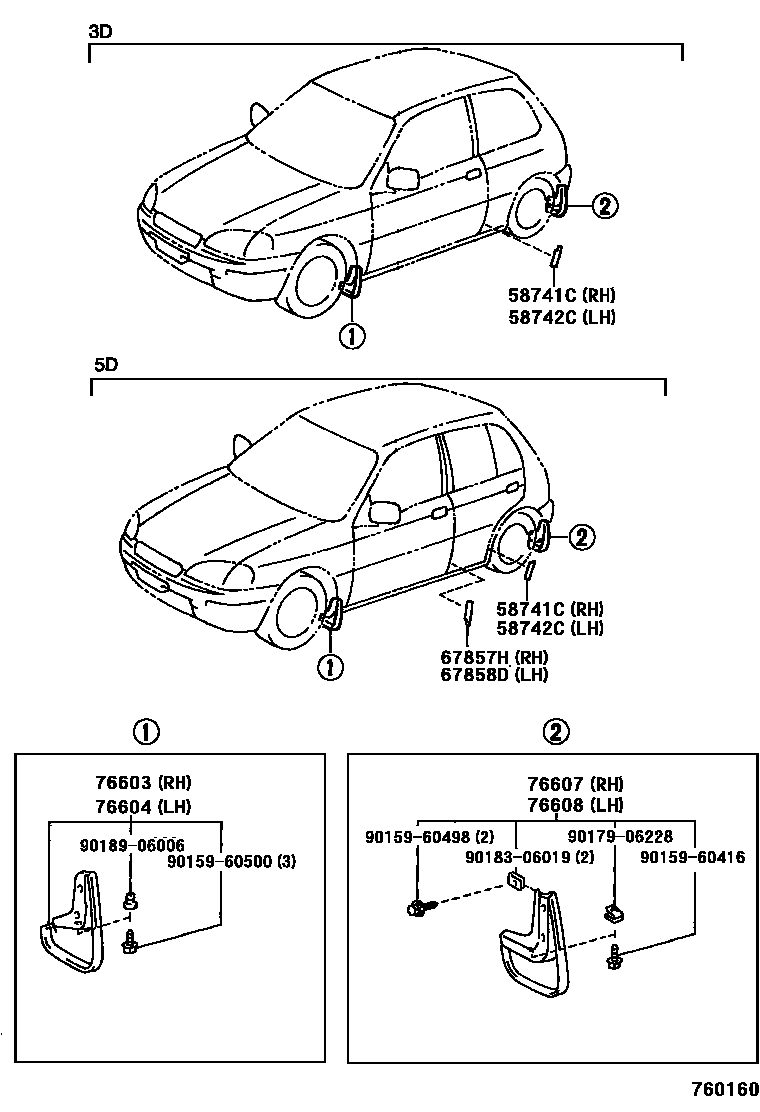

MUDGUARD & SPOILER

58741CPROTECTOR, QUARTER PANEL, RH

main58741-10050iEP9#..3D199601

main58741-10060iEP9#..5D199601

58742CPROTECTOR, QUARTER PANEL, LH

main58742-10050iEP9#..3D199601

main58742-10060iEP9#..5D199601

67857HPROTECTOR, REAR DOOR PANEL, RH

main67857-10030iEP9#..5D199601

67858DPROTECTOR, REAR DOOR PANEL, LH

main67858-10030iEP9#..5D199601

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19305iEP9#199601

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19305iEP9#199601

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-19595iEP9#199601

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-19595iEP9#199601

9015960416

main90159-60416

9015960498

main90159-60498

9015960500

main90159-60500

9017906228

main90179-06228

9018306019

main90183-06019

9018906006

main90189-06006

14 parts on this diagram · 1 diagram in section
