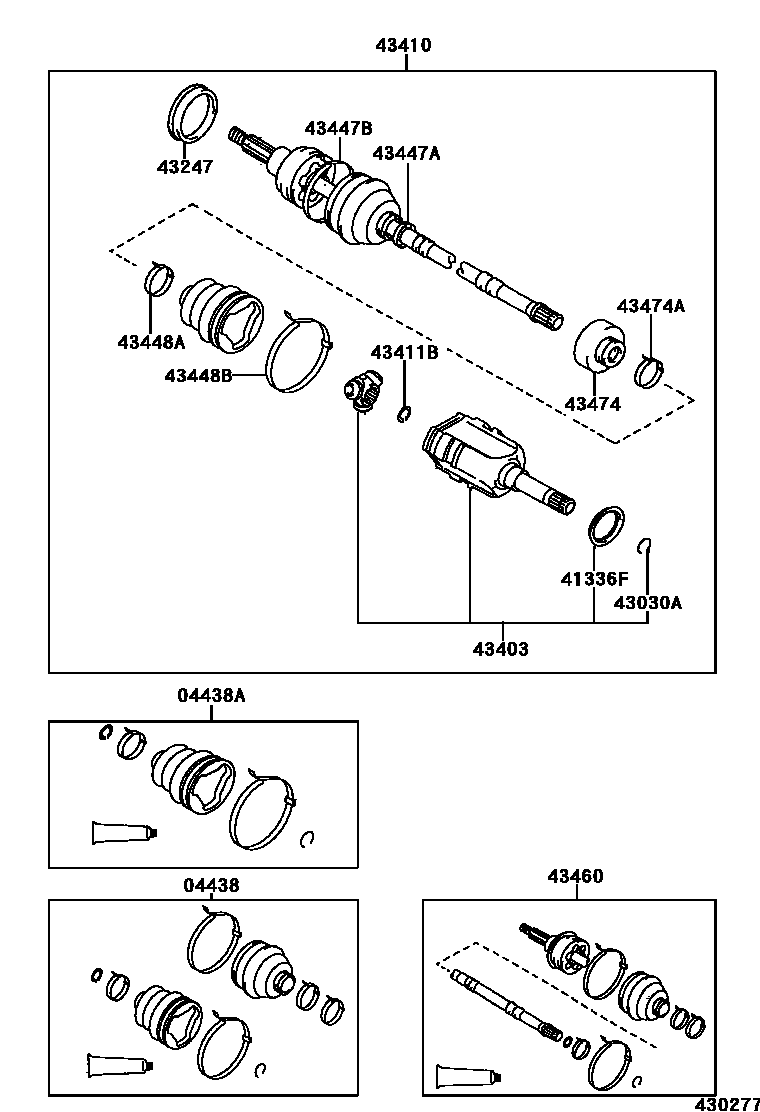

FRONT DRIVE SHAFT

0001 1RH 0002 1LH,W/O(ABS) 0003 1LH,W(ABS)

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-16040iEP9#199601-199907

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-16070×2iEP9#199601

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010×2iEP9#199601

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90521-26004×2iEP9#199601

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-16040×2iEP9#199601

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-10010iEP9#199601-199907

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-10091iEP9#199601

main43410-10101iEP9#199601

W(ABS)

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22001×2iEP9#199601

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-16010×2iEP9#199601

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-16020×2iEP9#199601

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-16010×2iEP9#199601

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-16080×2iEP9#199601

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19436iEP9#199601

main43460-19446iEP9#199601

W(ABS)

43474DAMPER, DRIVE SHAFT

main43474-10010iEP9#199601

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-16010iEP9#199601

15 parts on this diagram · 3 diagrams in section
