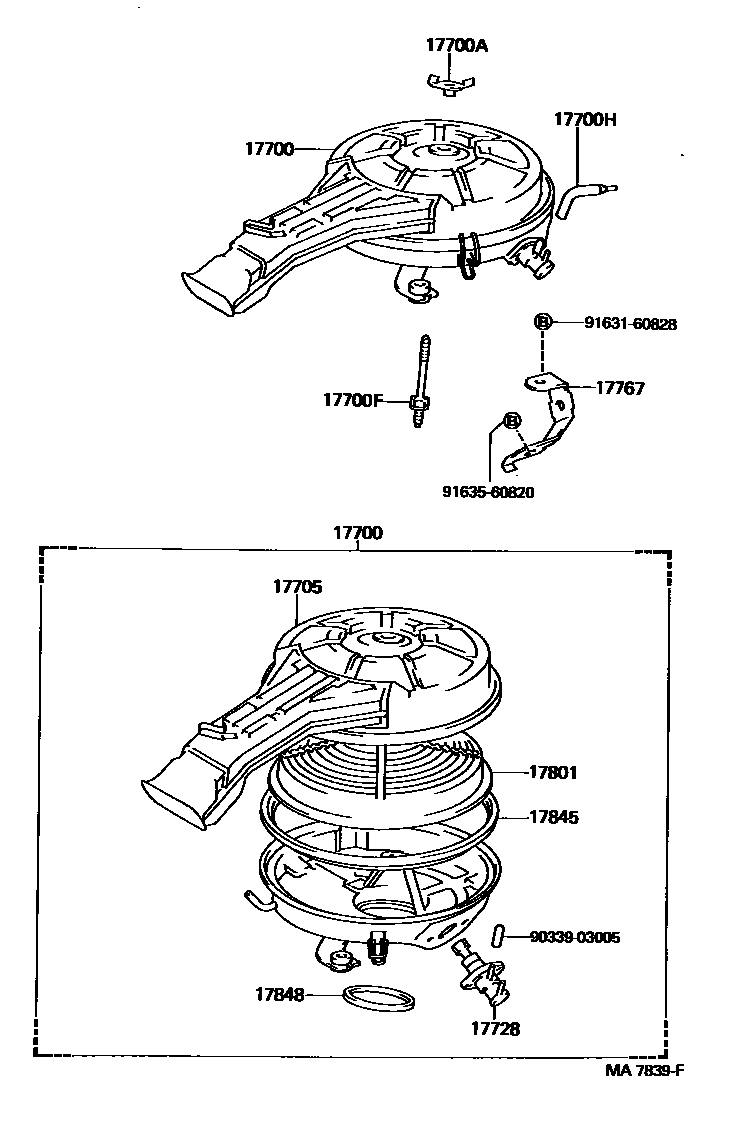

AIR CLEANER
17700CLEANER ASSY, AIR
W(HOT AIR INTAKE)
CYCLON TYPE
17700ANUT, WING(FOR AIR CLEANER)
17700FBOLT, STUD(FOR AIR CLEANER SETTING)
17700HHOSE, AIR
17705CAP SUB-ASSY, AIR CLEANER
CYCLON TYPE
W(HOT AIR INTAKE)
17728VALVE, THERMOSTATIC
17767BRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17845GASKET, AIR CLEANER CAP
17848GASKET, AIR CLEANER TO CARBURETOR
9033903005
main90339-03005
9163160828
main91631-60828
9163560820
main91635-60820
13 parts on this diagram · 4 diagrams in section
