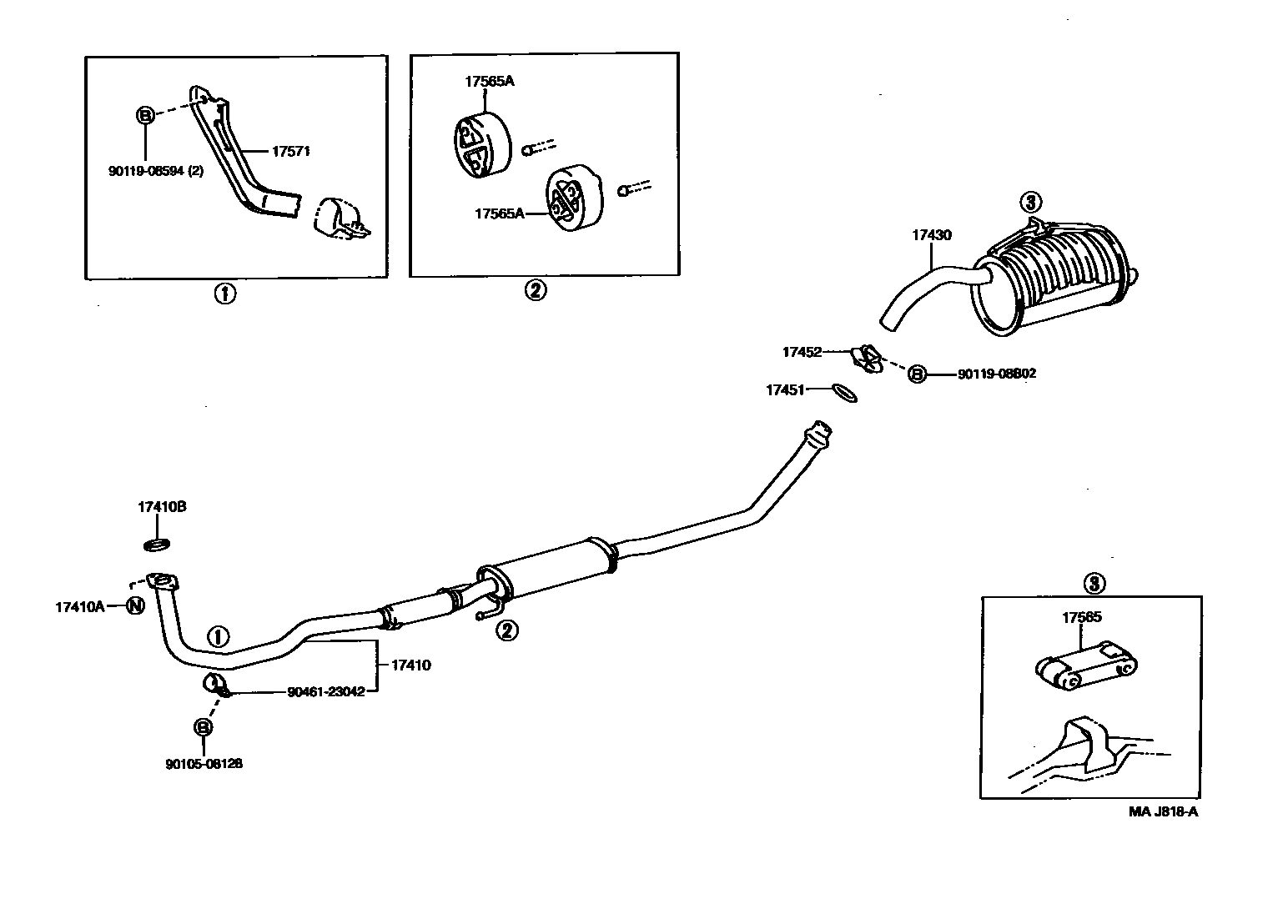

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-1B060i4EFE..EP91199601

main17410-1B070i2E..EP90199601

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×2i2E..EP90199601

17410BGASKET, EXHAUST PIPE

main17451-11010i4EFE..EP91199803

main90917-06061i2E..EP90199601

main90917-06080i4EFE..EP91199601-199803

17430PIPE ASSY, EXHAUST, TAIL

main17430-11890i4EFE..EP91199601-199707

main17430-11891i2E,4EFE..EP9#199707-199712

main17430-1B060i2E,4EFE..EP9#199712

main17430-55080i2E..EP90199601-199707

17451GASKET, EXHAUST PIPE

main90917-06081i2E,4EFE..EP9#199601

17452CLAMP, EXHAUST PIPE

main90461-16066i2E,4EFE..EP9#199601

17565SUPPORT, EXHAUST PIPE, NO.5

main17566-11150i2E,4EFE..EP9#199601

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160×2i4EFE..EP91199601

main17565-55050×2i2E..EP90199601

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-10010i2E..EP90199601

9010508128

main90105-08128

9011908594

main90119-08594

9011908B02

main90119-08B02

9046123042

main90461-23042

13 parts on this diagram · 2 diagrams in section
