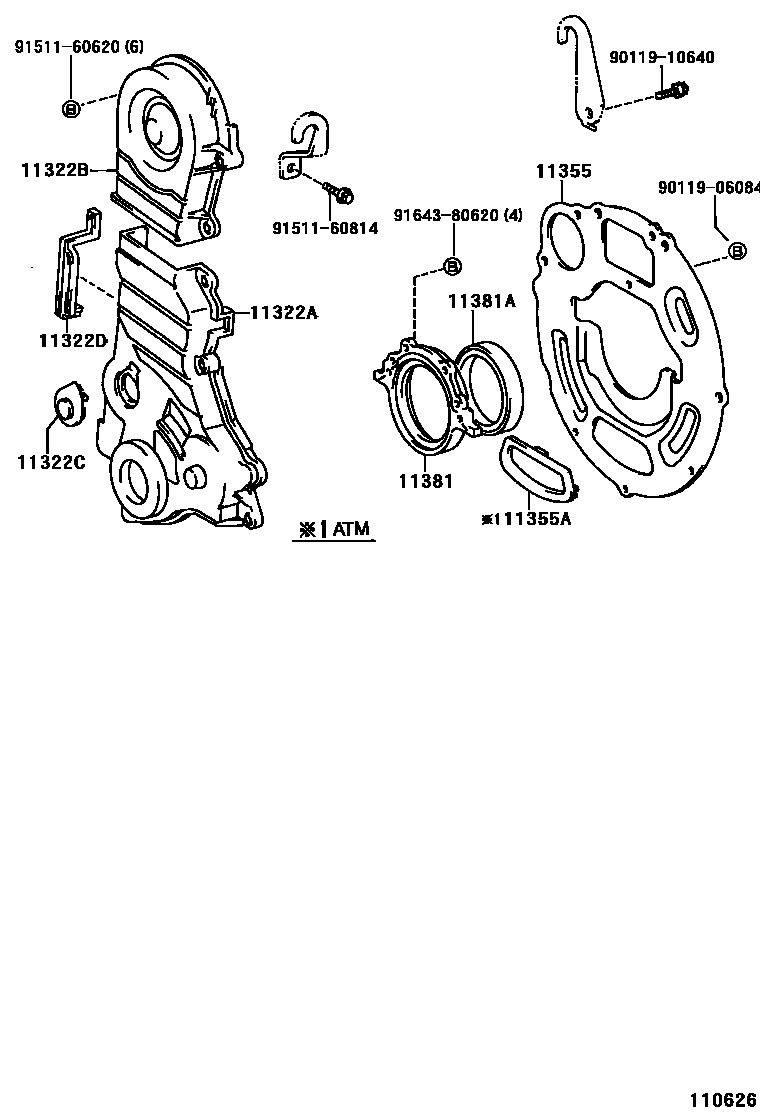

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11322ACOVER, TIMING BELT, NO.1

main11302-11072i2E..EP90199601

11322BCOVER, TIMING BELT, NO.2

main11303-10023i2E..EP90199601

11322CCOVER, TIMING BELT, NO.3

main11323-10011i2E,4EFE..EP9#199601

11322DGASKET, TIMING BELT COVER, NO.1

main11328-11041i2E,4EFE..EP9#199601

11355PLATE, REAR END

main11355-10011i2E,4EFE..EP9#..MTM199601-199611

sub11355-10012

main11355-10012i2E,4EFE..EP9#..MTM199611

main11355-11011i2E,4EFE..EP9#..3FC199601-199611

sub11355-11012

main11355-11012i2E,4EFE..EP9#..3FC199611

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i2E,4EFE..EP9#..3FC199601-199712

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10021i2E,4EFE..EP9#199601

11381ASEAL, ENGINE REAR OIL

main90311-75009i2E,4EFE..EP9#199601

9011906084

main90119-06084

9011910640

main90119-10640

9151160620

main91511-60620

9151160814

main91511-60814

9164380620

main91643-80620

13 parts on this diagram · 2 diagrams in section
