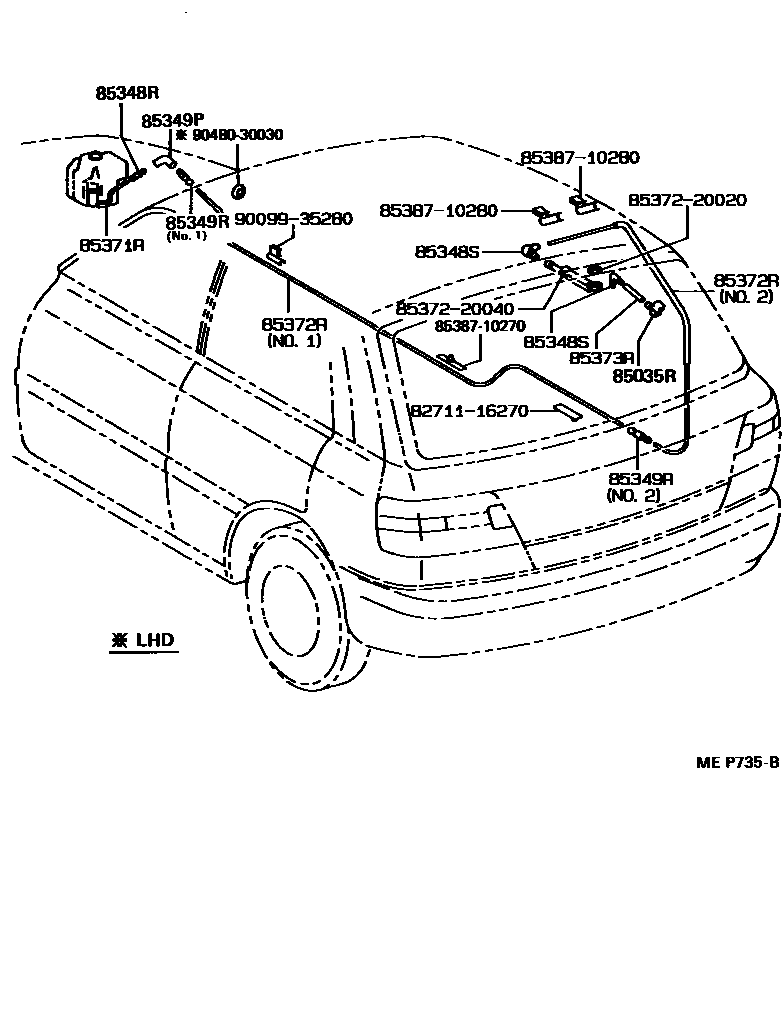

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-10010i198912

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122i198912

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200×2i198912

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-14481i199201-199601

main85355-20070i198912-199201

85349RJOINT, REAR WASHER HOSE, NO.5

main85031-90A00i199207

NO.1

main85349-89122×2i198912-199201

W(*RW)

main85375-10260i199201-199207

W(*66 & REAR WIPER); W(*66)

main85375-17050i199207

NO.2

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013i199201-199601

L=1000(*H,L=210),W(*66 & *RW); L=1000(*H,L=210),W(*66)

main90446-07001i199204-199601

L=1800(*H,L=300)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33570i198912-199201

L=3705,W(PRE AIR CLEANER & REAR WIPER); L=3705,W(PRE AIR CLEANER & REAR WIPER),NO.1

main90099-33836i199212-199405

L=1190,W(REAR WIPER); L=1190,W(REAR WIPER),NO.1

main90099-33840i198912-199201

L=1410,W(PRE AIR CLEANER & REAR WIPER); L=1410,W(PRE AIR CLEANER & REAR WIPER),NO.2

main90099-59004i198912-199201

L=4985(*H,L=3317),W(REAR WIPER); L=4985(*H,L=3317),W(REAR WIPER),NO.1

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080i198912

L=1450(*H,L=130)

8271116270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16270

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8538710270CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-10270

8538710280CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-10280

9009935280

main90099-35280

9048030030

main90480-30030

15 parts on this diagram · 2 diagrams in section
