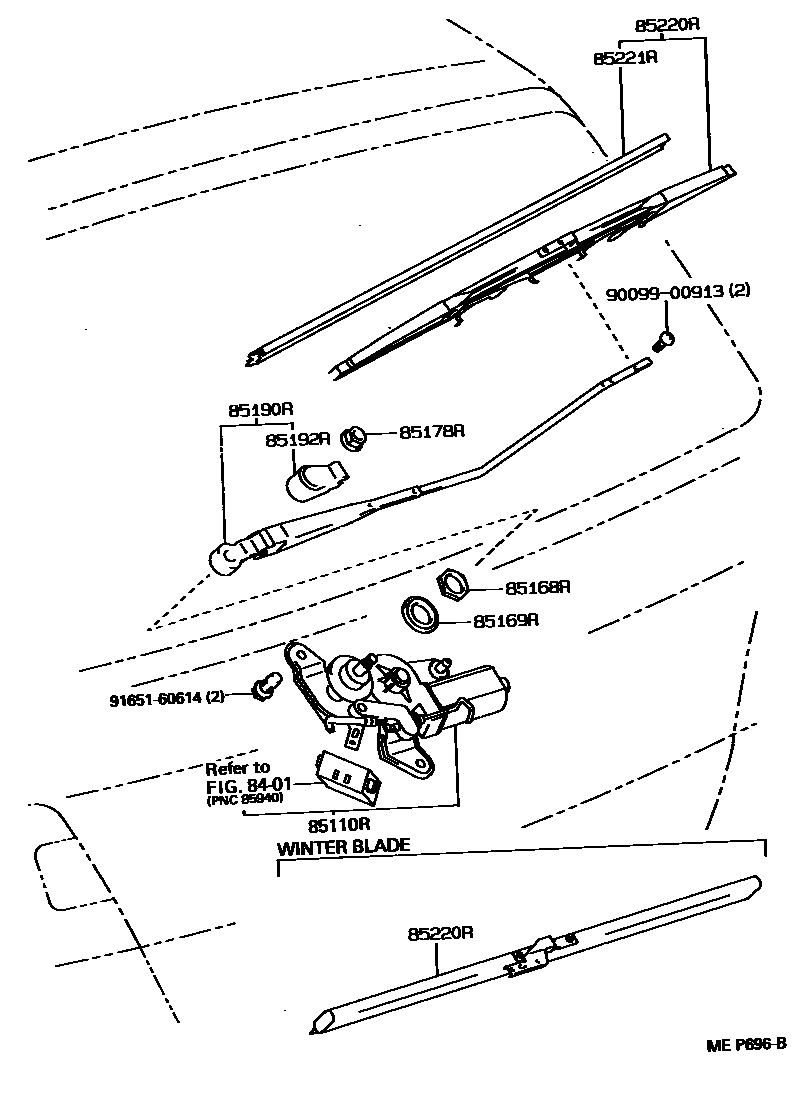

REAR WIPER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85110RMOTOR ASSY, REAR WIPER

main85130-10210iEP82199201-199601

main85130-10330iEP80,81198912

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iEP8#198912

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-10210iEP8#198912

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iEP8#198912

85190RARM ASSY, REAR WIPER

main85241-10010iEP8#198912

85192RCOVER, REAR WIPER ARM

main85192-13060iEP8#198912

85220RBLADE ASSY, REAR WIPER

main85242-10010iEP8#198912

main85291-10010iEP82199201-199601

WINTER BLADE

85221RBLADE, REAR WIPER

main85243-10010iEP8#198912

9009900913

main90099-00913

9165160614

main91651-60614

11 parts on this diagram · 1 diagram in section
