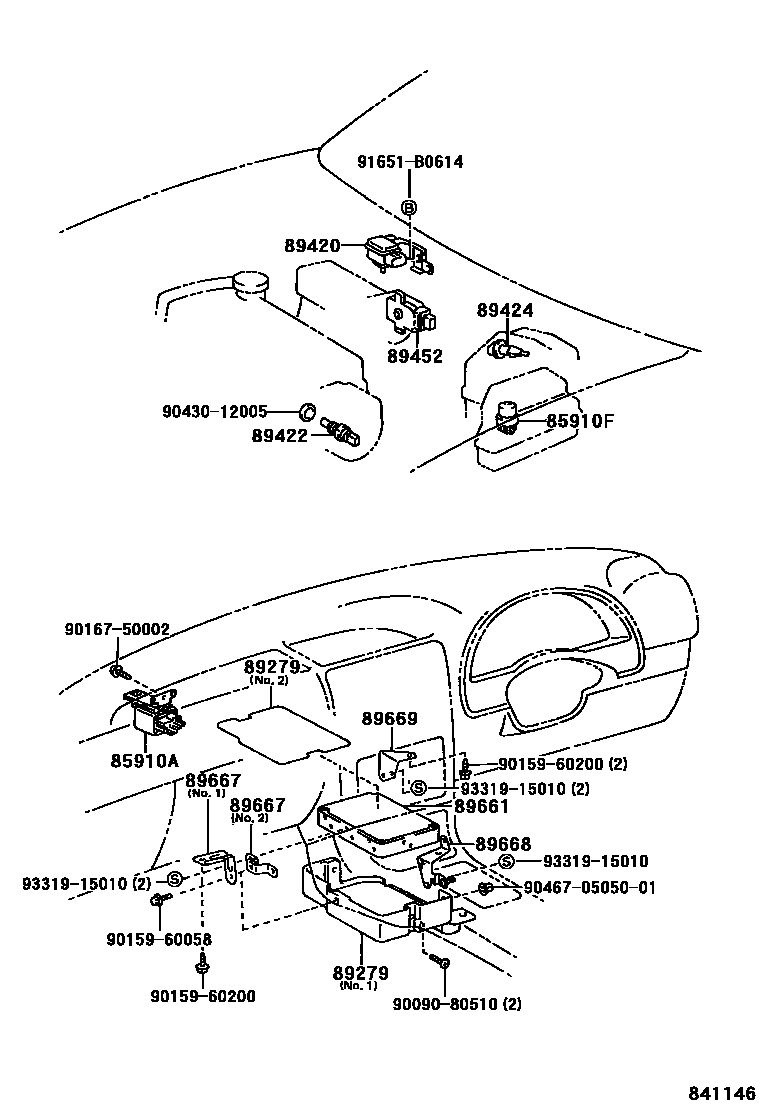

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-10010iEP82199201-199601

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iEP82199201-199601

89279COVER, ENGINE CONTROL COMPUTER

main89279-10030iEP82199201-199601

NO.1

main89279-10050iEP82199201-199601

NO.2

89420SENSOR ASSY, VACUUM

main89420-10010iEP82199201-199405

main89420-10040iEP82199405-199601

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iEP82199201-199601

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEP82199201-199601

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12060iEP82199201-199601

89661COMPUTER, ENGINE CONTROL

main89661-10120iEP82199201-199405

main89661-10140iEP82199405-199601

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-10020iEP82199201-199601

NO.1

main89667-10040iEP82199201-199601

NO.2

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-10040iEP82199201-199601

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-10010iEP82199201-199601

9009080510

main90090-80510

9015960058

main90159-60058

9015960200

main90159-60200

9016750002

main90167-50002

9043012005

main90430-12005

904670505001

main90467-0505001

91651B0614

main91651-B0614

9331915010

main93319-15010

19 parts on this diagram · 1 diagram in section
