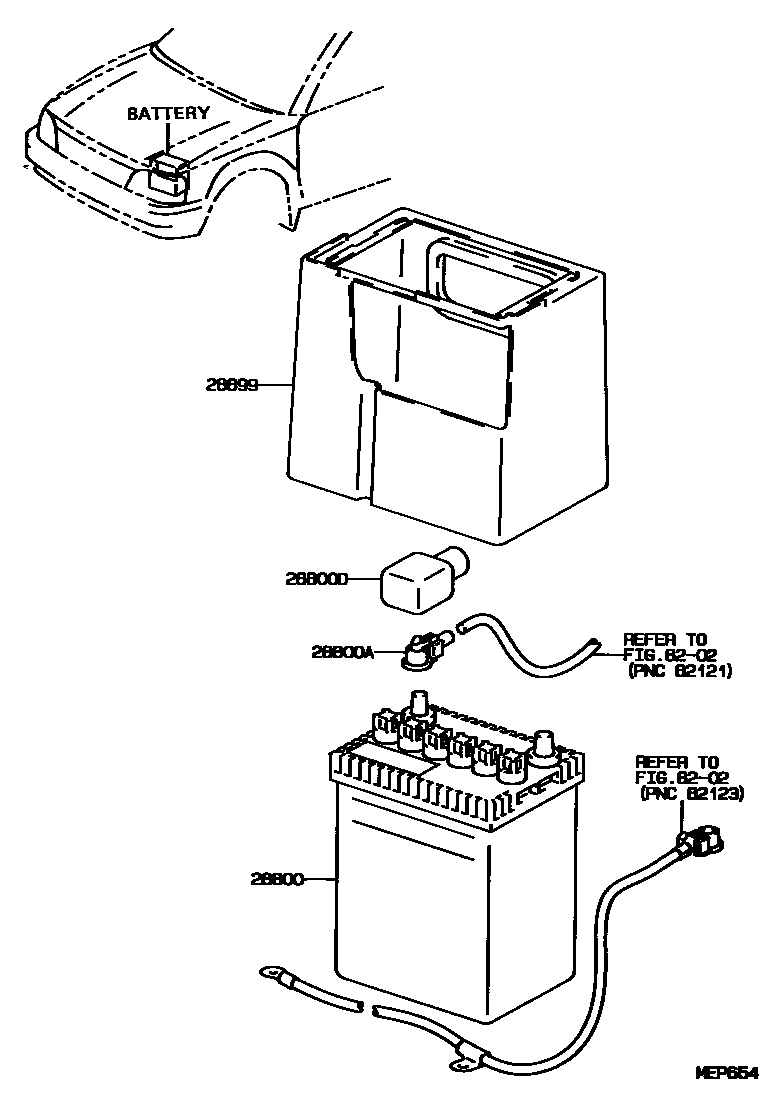

BATTERY & BATTERY CABLE

28800BATTERY

main28800-12030i1E,2E..EP80,81..RHD..5D199201-199603

NS40,INDONESIA(CKD)

main28800-13060i1E,2E..EP8#..RHD..5D..(S,XL)198912-199201

28B19R

main28800-13110i1E,2E..EP8#198912-199201

28B19R(S)

main28800-13160i1E,2E..EP80,81198912-199603

34B19R

main28800-24030i4EFE..EP82..4FC199204-199310

34B19R

main28800-33050i4EFE..EP82..3FC; 4EFE..EP82..4F,4FC,5F199201-199310

46B24R; 46B24R,COLD SPEC

main28800-33071i1E,2E..EP8#198912-199007

32C24R

main28800-33090i1E,2E..EP80,81199201

32C24R

main28800-33101i1E,2E..EP8#199007-199201

32C24R

28800ATERMINAL, BATTERY POSITIVE

main90982-05046i1E,2E..EP8#198912-199201

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-10020i1E,2E,4EFE..EP8#198912

28899INSULATOR, BATTERY

main28899-11030i1E,2E..EP80,81..RHD..5D199201

NS40 BATTERY

main28899-11040i4EFE..EP82..MTM199201-199601

46B24R BATTERY

main28899-11070i1E,2E..EP80,81199107

32C24R BATTERY

main28899-74050i1E,2E..EP80,81198912

main28899-74080i1E,2E..EP8#198912-199107

32C24R BATTERY

8202WIRING & CLAMP

→ Go to FIG 82-02

5 parts on this diagram · 1 diagram in section
