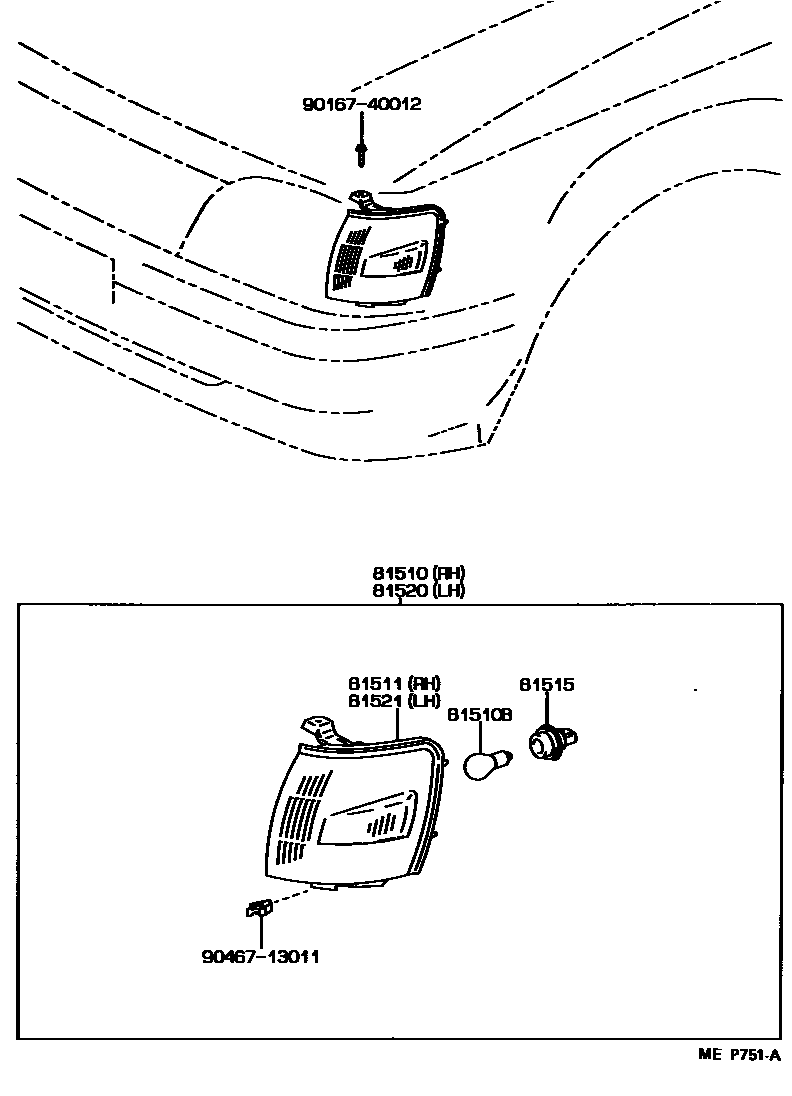

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-10240iEP8#198912-199006

main81510-10241iEP80,81199006

main81510-10250iEP80,81..RHD; EP82199201-199405

W/O(FOG LAMP)

main81510-10270iEP82199405-199601

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iEP8#198912

12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-10240iEP8#198912-199006

main81511-10241iEP80,81199006

main81511-10250iEP80,81..RHD; EP82199201-199405

W/O(FOG LAMP)

main81511-10270iEP82199405-199601

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81615-87705×2iEP8#198912

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-10170iEP8#198912-199006

main81520-10171iEP80,81199006

main81520-10180iEP80,81..RHD; EP82199201-199405

W/O(FOG LAMP)

main81520-10250iEP82199405-199601

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-10170iEP8#198912-199006

main81521-10171iEP80,81199006

main81521-10180iEP80,81..RHD; EP82199201-199405

W/O(FOG LAMP)

main81521-10250iEP82199405-199601

9016740012

main90167-40012

9046713011

main90467-13011

8 parts on this diagram · 1 diagram in section
