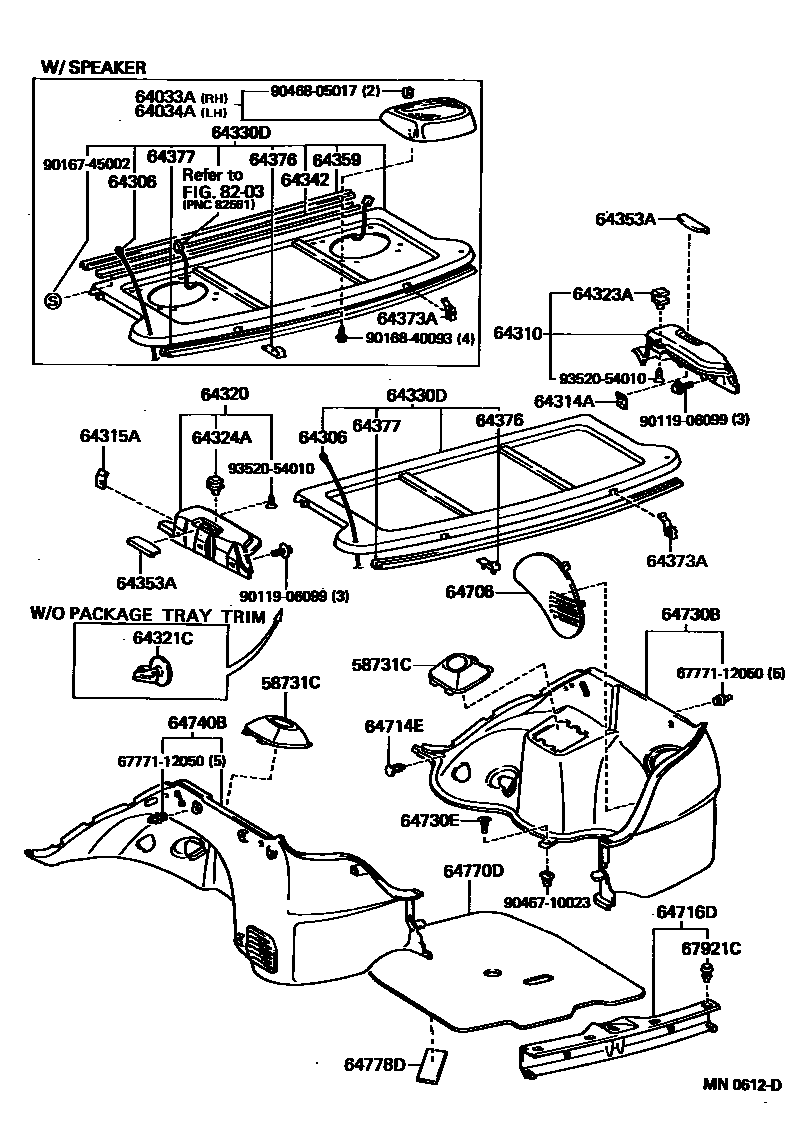

DECK BOARD & DECK TRIM COVER

58731CCAP, REAR ABSORBER

main58731-10040-03×2iEP8#..CAN,S,SOL,SOLL,XL199301-199405

GRAY,TRIM1#

main58731-10040-04×2iEP8#..S,XL198912-199201

BLUE,TRIM8#

main58731-10040-E0×2iEP82..SOLL199212-199405

OAK,TRIM4#

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-10020-03iEP8#..RHD..5D..(S,XL)198912-199201

GRAY,TRIM1#

main64033-10020-04iEP8#..RHD..5D..(S,XL)198912-199201

BLUE,TRIM8#

main64033-10021-E0iEP80,81..RHD..5D..XL199201-199212

OAK,TRIM4#

main64033-10021-P0iEP82..3D;EP80,81..RHD..5D199201-199212

GRAY,TRIM1#

main64033-10030-B0iEP82..S199405-199601

W(6 SPEAKER),GRAY,TRIM1#

main64033-10030-E0iEP82..SOLL199201-199405

OAK,TRIM4#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-10020-03iEP8#..RHD..5D..(S,XL)198912-199201

GRAY,TRIM1#

main64033-10020-04iEP8#..RHD..5D..(S,XL)198912-199201

BLUE,TRIM8#

main64033-10021-E0iEP80,81..RHD..5D..XL199201-199212

OAK,TRIM4#

main64033-10021-P0iEP82..3D;EP80,81..RHD..5D..(S,XL)199212-199405

GRAY,TRIM1#

main64033-10030-B0iEP82..S199405-199601

W(6 SPEAKER),GRAY,TRIM1#

main64033-10030-E0iEP82..SOLL199201-199405

OAK,TRIM4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-12030×2iEP8#199205-199407

64310BRACKET, PACKAGE TRAY TRIM, RH

main64310-10090-03iEP8#198912-199008

GRAY,TRIM1#

main64310-10090-04iEP8#..S,XL198912-199008

BLUE,TRIM8#

main64310-10100-03iEP8#198912-199008

W(3 POINT TYPE REAR SEAT BELT),GRAY,TRIM1#

main64310-10100-04iEP8#..S,XL198912-199008

W(3 POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main64310-10110-03iEP8#199008-199201

GRAY,TRIM1#

main64310-10110-04iEP8#..S,XL199008-199201

BLUE,TRIM8#

main64310-10120-03iEP8#199008-199201

W(3 POINT TYPE REAR SEAT BELT),GRAY,TRIM1#

main64310-10120-04iEP8#..S,XL199008-199201

W(3 POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main64310-10130-B0iEP8#..CAN,S,SOLL,STD,XL199201-199205

GRAY,TRIM1#

main64310-10130-E0iEP82..SOLL199212-199405

OAK,TRIM4#

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-10050×2iEP82..CAN,S,SOLL;EP80,81..RHD..5D199201

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64314-10050×2iEP82..CAN,S,SOLL;EP80,81..RHD..5D199201

64320BRACKET, PACKAGE TRAY TRIM, LH

main64320-10090-03iEP8#198912-199008

GRAY,TRIM1#

main64320-10090-04iEP8#..S,XL198912-199008

BLUE,TRIM8#

main64320-10100-03iEP8#198912-199008

W(3P0INT TYPE REAR SEAT BELT),GRAY,TRIM1#

main64320-10100-04iEP8#..S,XL198912-199008

W(3P0INT TYPE REAR SEAT BELT),BLUE,TRIM8#

main64320-10110-03iEP8#199008-199201

GRAY,TRIM1#

main64320-10110-04iEP8#..S,XL199008-199201

BLUE,TRIM8#

main64320-10120-03iEP8#199008-199201

W(3P0INT TYPE REAR SEAT BELT),GRAY,TRIM1#

main64320-10120-04iEP8#..S,XL199008-199201

W(3P0INT TYPE REAR SEAT BELT),BLUE,TRIM8#

main64320-10130-B0iEP8#..CAN,S,SOLL,STD,XL199201-199205

GRAY,TRIM1#

main64320-10130-E0iEP8#..SOLL,XL199201-199212

OAK,TRIM4#

64321CCLIP(FOR PACKAGE TRIM SIDE)

main90467-06049-01×6iEP82..SOL199201-199209

BLACK,TRIM1#

main90467-06049-22×6iEP82..SOL199209-199405

BLACK,TRIM1#

main90467-06049-B0×6iEP82..SOL199405-199601

SHADOW GRAY,TRIM1#

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-10020iEP8#198912-199008

main64323-10030iEP8#..CAN,S,SOLL,STD,XL199008-199205

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64324-10020iEP8#198912-199008

main64324-10030iEP8#..S,SOLL,STD,XL199407

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64303-10070-03iEP8#198912-199201

GRAY,TRIM1#

main64303-10070-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

main64303-10080-03iEP8#..RHD..3D198912-199008

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main64303-10080-04iEP8#..3D..(S,XL)199008-199201

W(HIGH MOUNT STOP LAMP),BLUE,TRIM8#

main64303-10100-B0iEP8#199205-199405

GRAY,TRIM1#

main64303-10100-E0iEP8#..SOLL,XL199201-199212

OAK,TRIM4#

main64303-10110-B0iEP82..CAN,SOLL;EP80,81..3D..5F199201-199405

W(HIGH MOUNT STOP LAMP),GRAY,TRIM1#

main64303-10110-E1iEP82..SOLL199212-199405

W(HIGH MOUNT STOP LAMP),OAK,TRIM4#

main64303-10111-B0iEP80,81..3D..5F;EP81,82..RHD..(3FC,4F)..(SOLL,XL)199405-199601

W(HIGH MOUNT STOP LAMP),GRAY,TRIM1#

main64303-10160-B0iEP8#..S,SOLL,STD,XL199407

GRAY,TRIM1#

main64330-10180-03iEP8#..RHD..5D..(S,XL)198912-199201

W(REAR SPEAKER),GRAY,TRIM1#

main64330-10180-04iEP8#..RHD..5D..(S,XL)198912-199201

W(REAR SPEAKER),BLUE,TRIM8#

main64330-10210-B0iEP81..5D..S; EP82..3D;EP80,81..RHD..5D..(STD,XL)199201-199405

W(REAR SPEAKER),GRAY,TRIM1#; W(SPEAKER),GRAY,TRIM1#

main64330-10210-E0iEP80,81..RHD..5D..XL199201-199212

W(REAR SPEAKER),OAK,TRIM4#

main64330-10211-B0iEP80,81..RHD..5D..(STD,XL); EP82..S;EP81..5D..S199405

W(REAR SPEAKER),GRAY,TRIM1#; W(SPEAKER),GRAY,TRIM1#

main64330-10220-B0iEP82..CAN199204-199405

W(HIGH MOUNT STOP LAMP & REAR SPEAKER),GRAY,TRIM1#

main64330-10221-B0iEP81..RHD..3FC199405-199601

W(HIGH MOUNT STOP LANP & SPEAKER),GRAY,TRIM1#

main64330-10230-B0iEP82..SOLL199201-199405

W(REAR SPEAKER),GRAY,TRIM1#

main64330-10230-E0iEP82..SOLL199201-199405

W(REAR SPEAKER),OAK,TRIM4#

main64330-10231-B0iEP82..S,SOLL199405-199601

W(6 SPEAKER),GRAY,TRIM1#

main64330-10240-B0iEP82..SOLL199201-199405

W(HIGH MOUNT STOP LAMP & REAR SPEAKER),GRAY,TRIM1#

main64330-10240-E0iEP82..SOLL199201-199405

W(HIGH MOUNT STOP LAMP & REAR SPEAKER),OAK,TRIM4#

main64330-10241-B0iEP82..SOLL199405-199601

W(HIGH MOUNT STOP LAMP & REAR SPEAKER),GRAY,TRIM1#

64342COVER, PACKAGE TRAY TRIM, UNDER

main64342-10020iEP82..SOLL199201-199601

main64342-10030iEP80,81..RHD..5D; EP82..S199405-199408

W(REAR SPEAKER)

main64342-19025iEP82..S199408-199601

W(REAR SPEAKER)

64353ACOVER, PACKAGE TRAY TRIM BELT HOLE

main64353-10010-B0×2iEP81;EP80..RHD;EP80..LHD..XL199301-199405

GRAY,TRIM1#

main64353-10010-E0×2iEP80,81..XL199201-199212

OAK,TRIM4#

64359CUSHION, PACKAGE TRAY TRIM TO SEATBACK

main64359-10030iEP8#..RHD..5D..(S,XL)198912-199201

64373ASTOPPER, PACKAGE TRAY TRIM

main64373-10060×2iEP8#198912-199103

main64373-10070×2iEP8#199205-199407

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-10040iEP8#199305-199405

64377CUSHION, PACKAGE TRAY TRIM

main64377-10020iEP82..S;EP80,81..RHD..5D..MTM199405

main64377-10030iEP8#..RHD..3D199008-199009

main64377-10040iEP80,81..3D..5F; EP82..CAN,SOLL199201-199405

W(HIGH MT. STOP LAMP)

64706COVER SUB-ASSY, QUARTER TRIM, JACK

main64766-10050-03iEP8#198912-199301

GRAY,TRIM1#

main64766-10050-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

main64766-10050-E0iEP82..SOLL199212-199405

OAK,TRIM4#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-06055-01×2iEP8#..S,XL; EP80..STD198912-199201

BLACK,TRIM1#; BLACK,TRIM1#,8#

main90467-06055-22×2iEP8#..CAN,S,SOL,STD; EP8#..SOLL,XL199208-199212

BLACK,TRIM1#; BLACK,TRIM1#,4#

64716DCOVER, DECK TRIM, REAR

main64716-10040-03iEP8#198912-199301

GRAY,TRIM1#

main64716-10040-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

main64716-10040-E0iEP8#..SOLL,XL199201-199212

OAK,TRIM4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-10010-03iEP80,81..RHD..5D199201

CKD SPEC,GRAY,TRIM1#

main64730-10010-04iEP8#..RHD..5D..(S,XL)198912-199201

W(REAR SPEAKERS),BLUE,TRIM8#

main64730-10010-E0iEP80,81..RHD..5D..XL199201-199212

CKD SPEC,OAK,TRIM4#

main64730-10020-03iEP8#..RHD..5D..(S,XL)198912-199201

W(3POINT TYPE REAR SEAT BELT & REAR SPEAKERS),GRAY,TRIM1#

main64730-10020-04iEP8#..RHD..5D..(S,XL)198912-199201

W(3POINT TYPE REAR SEAT BELT & REAR SPEAKERS),BLUE,TRIM8#

main64730-10020-E0iEP82..SOLL199201-199405

W(REAR SPEAKER),OAK,TRIM4#

main64730-10040-03iEP80,81199405

GRAY,TRIM1#

main64730-10040-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

main64730-10040-E0iEP80,81..XL199201-199212

OAK,TRIM4#

main64730-10050-03iEP81..5D;EP80..RHD..5D;EP80..LHD..XL; EP82..5D;EP80..LHD..5D..STD199301-199405

GRAY,TRIM1#; W(3POINT TYPE REAR SEAT BELT),GRAY,TRIM1#

main64730-10050-04iEP8#..5D..(S,XL)198912-199201

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main64730-10050-E0iEP80,81..5D..XL199201-199212

W(3POINT TYPE REAR SEAT BELT),OAK,TRIM4#

main64730-10060-03iEP80,81..3D..5F199212-199405

W(3POINT TYPE REAR SEAT BELT),GRAY,TRIM1#

main64730-10060-04iEP8#..3D..(S,XL)198912-199201

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main64730-10060-E0iEP80,81..3D..XL199201-199212

W(3POINT TYPE REAR SEAT BELT),OAK,TRIM4#

main64730-10110-03iEP82..S,SOLL199405-199601

W(REAR SPEAKER),GRAY,TRIM1#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-07045-01×2iEP8#..S,XL; EP80..STD198912-199201

BLACK,TRIM1#; BLACK,TRIM1#,8#

main90467-07045-22×2iEP82..SOLL199212-199405

BLACK,TRIM1#,4#

64740BBOARD, DECK TRIM SIDE, LH

main64740-10050-03iEP80,81..S,XL; EP80..RHD..STD199301-199405

GRAY,TRIM1#; INDONESIA SPEC,GRAY,TRIM1#

main64740-10050-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

main64740-10050-E0iEP80,81..XL199201-199212

OAK,TRIM4#

main64740-10060-03iEP81..5D;EP80..RHD..5D;EP80..LHD..XL; EP82..5D;EP80..LHD..5D..STD199301-199405

GRAY,TRIM1#; W(3POINT TYPE REAR SEAT BELT),GRAY,TRIM1#

main64740-10060-04iEP8#..5D..(S,XL)198912-199201

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main64740-10060-E0iEP82..SOLL199201-199405

OAK,TRIM4#

main64740-10070-03iEP82..3D199204-199301

GRAY,TRIM1#

main64740-10070-04iEP8#..3D..(S,XL)198912-199201

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main64740-10070-E0iEP80,81..3D..XL199201-199212

W(3POINT TYPE REAR SEAT BELT),OAK,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64770-10040iEP8#198912-199201

main64770-10050iEP8#..S,XL198912-199201

W(ALUMINIUM WEEL)

main64770-10071iEP82199201-199601

main64770-10081iEP80,81199201-199405

64778DPROTECTOR, SPARE WHEEL

main64778-16020×4iEP82199201-199601

67921CRETAINER, DECK TRIM SIDE BOARD

main67921-95501×4iEP8#198912

8203

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9011906099

main90119-06099

9016745002

main90167-45002

9016840093

main90168-40093

9046710023

main90467-10023

9046805017

main90468-05017

9352054010

main93520-54010

35 parts on this diagram · 1 diagram in section
