E
EPC Data

SIDE MEMBER

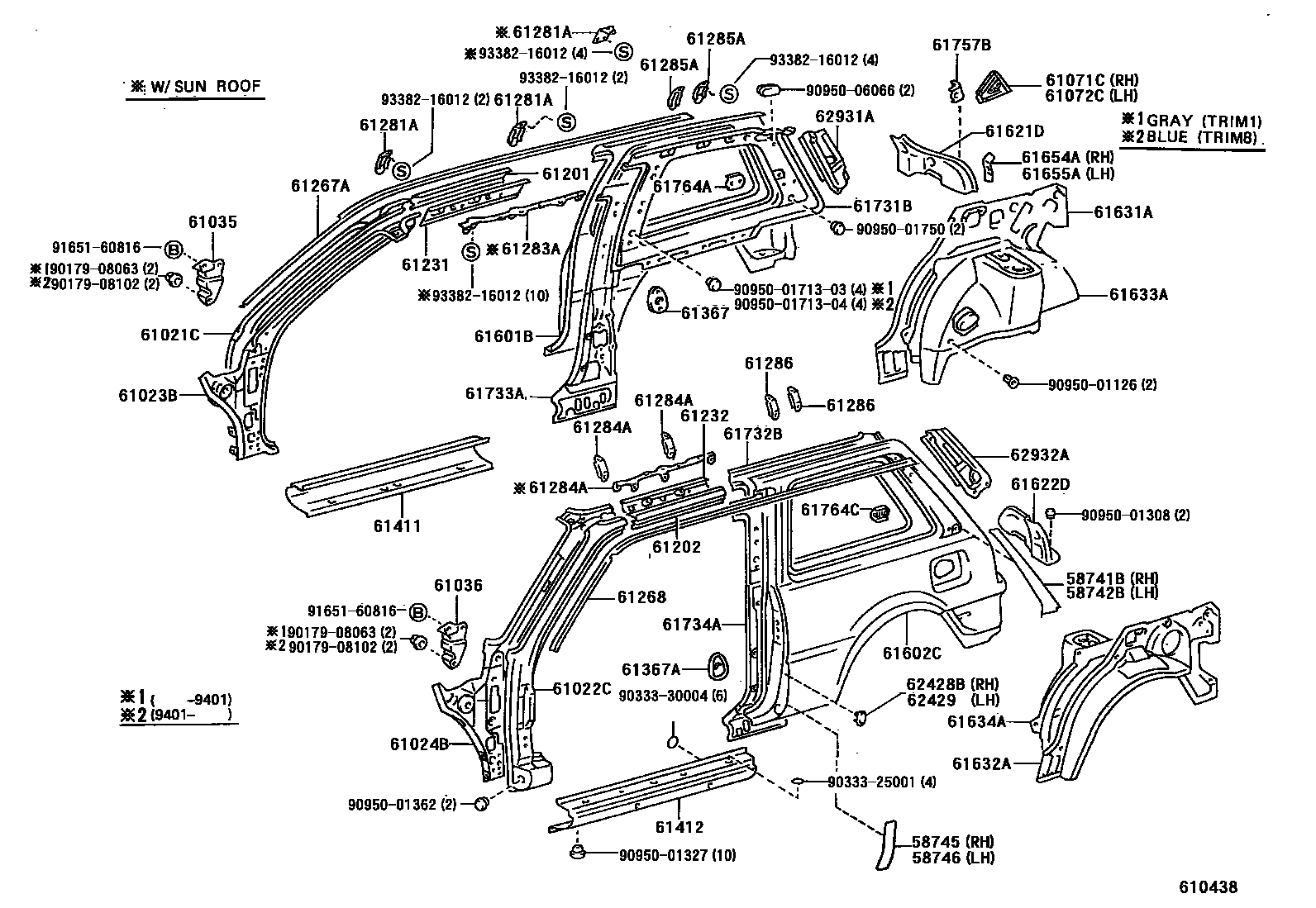

Parts diagram
58741BPROTECTOR, QUARTER PANEL, RH
main58741-10030i198912-199601
58742BPROTECTOR, QUARTER PANEL, LH
main58742-10030i198912-199601
58745PROTECTOR, QUARTER PANEL, FRONT RH
main58741-10040i199010-199201
INDONESIA SPEC
main58745-10020i199405-199601
COLD SPEC
58746PROTECTOR, QUARTER PANEL, FRONT LH
main58742-10040i199405-199601
COLD SPEC
main58746-10020i199405-199601
COLD SPEC
61021CPILLAR SUB-ASSY, FRONT BODY, RH
main61021-10130i198912-199102
main61021-10131i199102
main61021-10141i199204-199405
main61021-10150i198912-199102
main61021-10151i199102-199601
61022CPILLAR SUB-ASSY, FRONT BODY, LH
main61022-10220i198912-199102
main61022-10221i199102
main61022-10231i199204-199405
main61022-10240i198912-199102
main61022-10241i199102-199601
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
main61023-10110i198912-199601
main61023-10120i199405-199601
W(*66 & REAR WINDOW WIPER); W(*66)
main61023-10130i198912-199601
W(REAR WINDOW WIPER)
main61023-10140i198912-199601
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
main61024-10100i198912-199405
main61024-10110i199212-199405
W(PRE AIR CLEANER & REAR WINDOW WIPER); W(REAR WINDOW WIPER)
main61024-10140i198912-199601
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
main61165-10040i198912-199601
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
main61166-10040i198912
61071CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH
main61071-10030i198912-199601
main61071-10040i199008-199009
SEVERE USAGE PACKAGE OR W(PACKAGE TRAY TRIM OR REAR SEAT BELT OR FULL FABRIC DOORTRIM); SEVERE USAGE PACKAGE OR W(PACKAGE TRAY TRIM OR REAR SEAT BELT)
61072CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH
main61072-10030i198912-199601
main61072-10040i198912
61201RAIL SUB-ASSY, ROOF SIDE, RH
main61211-10060i198912-199601
main61211-10070i198912
61202RAIL SUB-ASSY, ROOF SIDE, LH
main61212-10060i198912-199601
main61212-10070i198912
61231RAIL, ROOF SIDE, INNER RH
main61231-10130i198912-199601
main61231-10150i198912
61232RAIL, ROOF SIDE, INNER LH
main61232-10130i198912-199601
main61232-10150i198912
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
main61267-10010i198912
61268CHANNEL, ROOF DRIP SIDE, REAR LH
main61268-10010i198912
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
main61281-10020×2i198912-199405
main61281-10030i199204-199405
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
main61283-10030i199405-199601
main61283-10040i199204-199405
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
main61284-10030i199405-199601
main61284-10040i199204-199405
61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4
main61285-10020×2i199204-199405
61286BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.5
main61286-10010×2i199204-199405
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
main61367-14010i198912-199601
61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH
main61367-14010i198912-199601
61411PANEL, ROCKER, OUTER RH
main61401-10040i198912
main61411-10150i198912-199601
61412PANEL, ROCKER, OUTER LH
main61402-10040i198912
main61412-10150i198912-199601
61601BPANEL SUB-ASSY, QUARTER, RH
main61601-1C260i198912-199102
main61601-1C261i199102-199111
main61601-1C262i199111-199201
main61601-1C270i198912-199102
W(REAR WINDOW DEFOGGER)
main61601-1C271i199102-199111
W(REAR WINDOW DEFOGGER)
main61601-1C272i199111-199201
W(REAR WINDOW DEFOGGER)
main61601-1C280i198912-199102
W(PAINTED FRONT BUMPER) OR W(SIDE PROTECTION MOULDING); W(SIDE PROTECTION MOULDING)
main61601-1C281i199102-199111
W(PAINTED FRONT BUMPER) OR W(SIDE PROTECTION MOULDING); W(SIDE PROTECTION MOULDING)
main61601-1C282i199111-199201
W(PAINTED FRONT BUMPER) OR W(SIDE PROTECTION MOULDING); W(SIDE PROTECTION MOULDING)
main61601-1C300i198912-199102
W(PAINTED FR BUMPER & RR WINDOW DEFOGGER) OR W(RR WINDOW DEFOGGER & SIDE PROTECTION MOUL); W(REAR WINDOW DEFOGGER & SIDE PROTECTION MOULDING); W(REAR WINDOW DEFOGGER)
main61601-1C301i199102-199111
W(PAINTED FR BUMPER & RR WINDOW DEFOGGER) OR W(RR WINDOW DEFOGGER & SIDE PROTECTION MOUL); W(REAR WINDOW DEFOGGER & SIDE PROTECTION MOULDING); W(REAR WINDOW DEFOGGER)
main61601-1C302i199111-199201
W(PAINTED FR BUMPER & RR WINDOW DEFOGGER) OR W(RR WINDOW DEFOGGER & SIDE PROTECTION MOUL); W(REAR WINDOW DEFOGGER & SIDE PROTECTION MOULDING); W(REAR WINDOW DEFOGGER)
main61601-1C332i199204-199405
main61601-1C340i198912-199102
main61601-1C341i199102
main61601-1C350i198912-199102
W(REAR WINDOW DEFOGGER)
main61601-1C351i199102
W(REAR WINDOW DEFOGGER)
61602CPANEL SUB-ASSY, QUARTER, LH
main61602-1C330i198912-199102
main61602-1C331i199102-199111
main61602-1C332i199111-199201
main61602-1C350i198912-199102
W(SIDE PROTECTION MOULDING); W(SIDE PROTECTION MOULDING) OR W(PAINTED FRONT BUMPER)
main61602-1C351i199102-199111
W(SIDE PROTECTION MOULDING); W(SIDE PROTECTION MOULDING) OR W(PAINTED FRONT BUMPER)
main61602-1C352i199111-199201
W(SIDE PROTECTION MOULDING); W(SIDE PROTECTION MOULDING) OR W(PAINTED FRONT BUMPER)
main61602-1C390i198912-199102
main61602-1C391i199102
61621DTROUGH, BACK DOOR OPENING, RH
main61621-10030i198912
61622DTROUGH, BACK DOOR OPENING, LH
main61622-10030i198912
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61605-10070i198912-199210
main61605-10090i199008-199009
SEVERE USAGE PACKAGE OR W(FULL FABRIC DOOR TRIM) OR W(RR SEAT BELT); SEVERE USAGE PACKAGE OR W(RR SEAT BELT)
main61605-10100i199210-199601
main61605-10110i199201-199210
SEVERE USAGE PACKAGE
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61606-10050i198912-199210
main61606-10070i198912-199210
main61606-10080i199210-199601
main61606-10090i199201-199210
SEVER USAGE PACKAGE
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-10030i198912-199201
main61607-10040i199601
SEVERE USAGE PACKAGE
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-10030i198912-199201
main61608-10040i199001-199201
SEVERE USAGE PACKAGE; SEVERE USAGE PACKEGE
61654ABRACKET, DECK SIDE TRIM, NO.2
main61654-10010i198912
61655ABRACKET, DECK SIDE TRIM, NO.3
main61655-10010i198912
61731BPANEL, ROOF SIDE, INNER RH
main61731-10690i198912-199009
main61731-10700i198912-199009
(SEVERE USAGE PACKAGE & W(REAR SEAT BELT)) OR W(PACKAGE TRAY TRIM); W(PACKAGE TRAY TRIM)
main61731-10710i198912-199009
W(MOON ROOF)
main61731-10720i198912-199009
W(MOON ROOF & PACKAGE TRAY TRIM)
main61731-10730i198912-199009
W(HINGED QUARTER WINDOW)
main61731-10740i198912-199009
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRIM)
main61731-10750i198912-199009
W(HINGED QUARTER WINDOW & MOON ROOF)
main61731-10760i198912-199009
W(HINGED QUARTER WINDOW & MOON ROOF & PACKAGE TRAY TRIM)
main61731-10790i198912-199001
SEVERE USAGE PACKAGE & W(PACKAGE TRAY TRIM)
main61731-10800i198912-199009
W(MOON ROOF)
main61731-1C011i199201-199405
W(FULL FABRIC DOOR TRIM)
main61731-1C020i199009-199201
main61731-1C030i199009-199102
W(PACKAGE TRAY TRIM)
main61731-1C031i199102-199201
W(PACKAGE TRAY TRIM)
main61731-1C040i198912-199009
W(MOON ROOF & REAR SEAT BELT)
main61731-1C050i198912-199009
W(MOON ROOF & PACKAGE TRAY TRIM & REAR SEAT BELT)
main61731-1C051i199201-199601
W(MOON ROOF OR PACKAGE TRAY TRIM); W(PACKAGE TRAY TRIM)
main61731-1C060i199009-199201
W(HINGED QUARTER WINDOW)
main61731-1C070i199009-199102
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRIM)
main61731-1C071i199102-199201
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRIM)
main61731-1C080i198912-199009
W(SEVERE USAGE PACKAGE & HINGED QUARTER WI NDOW & MOON ROOF & REAR SEAT BELT)
main61731-1C090i199009-199102
W(HINGED QUARTER WINDOW & MOON ROOF & PACKAGE TRAY TRIM)
main61731-1C091i199201-199601
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRIM); W(HINGED QUARTER WINDOW & PACKAGE TRAY TRIM) OR W(HINGED QUARTER WINDOW & MOON ROOF)
main61731-1C100i198912-199008
main61731-1C110i198912-199009
W(PACKAGE TRAY TRIM)
main61731-1C120i198912-199009
W(FABRIC DOOR TRIM)
main61731-1C130i198912-199009
W(REAR SEAT BELT)
main61731-1C140i199009-199102
W(PACKAGE TRAY TRIM)
main61731-1C141i199102-199110
W(PACKAGE TRAY TRIM)
main61731-1C150i199009-199102
W(FABRIC DOOR TRIM); W(SEVERE USAGE PACKAGE & FABRIC DOOR TRIM)
main61731-1C151i199102-199201
W(FABRIC DOOR TRIM); W(SEVERE USAGE PACKAGE & FABRIC DOOR TRIM)
main61731-1C170i199009-199102
main61731-1C171i199102-199201
main61731-1C190i198912-199009
W(MOON ROOF & REAR SEAT BELT)
main61731-1C191i199405-199601
W(MOON ROOF & FULL FABRIC DOOR TRIM)
61732BPANEL, ROOF SIDE, INNER LH
main61732-10690i198912-199009
main61732-10700i198912-199009
W(FPACKAGE TRAY TRIM)
main61732-10710i198912-199009
W(MOON ROOF)
main61732-10720i198912-199009
W(MOON ROOF & PACKAGE TRAY TRIM)
main61732-10730i198912-199009
W(HINGED QUARTER WINDOW)
main61732-10740i198912-199009
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRIM)
main61732-10750i198912-199009
W(HINGED QUARTER WINDOW & MOON ROOF)
main61732-10760i198912-199009
W(HINGED QUARTER WINDOW & MOON ROOF & PACKAGE TRAY TRIM)
main61732-10790i198912-199009
main61732-10800i198912-199009
W(MOON ROOF)
main61732-1C011i199201-199601
W(FULL FABRIC DOOR TRIM)
main61732-1C020i199009-199201
main61732-1C030i198912-199009
W(PACKAGE TRAY TRIM & REAR SEAT BELT)
main61732-1C031i199102-199201
W(FPACKAGE TRAY TRIM)
main61732-1C040i199009-199201
W(MOON ROOF)
main61732-1C050i198912-199102
W(SEVERE USAGE PACKAGE & MOON ROOF & PACKAGE TRAY TRIM & RR SEAT BELT)
main61732-1C051i199201-199601
W(FPACKAGE TRAY TRIM); W(MOON ROOF) OR W(PACKAGE TRAY TRIM)
main61732-1C060i198912-199009
W(HINGED QUARTER WINDOW & REAR SEAT BELT)
main61732-1C070i198912-199009
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRIM & REAR SEAT BELT)
main61732-1C071i199102-199201
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRIM)
main61732-1C080i198912-199009
W(HINGED QUARTER WINDOW & MOON ROOF & REAR SEAT BELT)
main61732-1C090i198912-199009
W(HINGED QUARTER WINDOW & MOON ROOF & REAR SEAT BELT & PACKAGE TRAY TRIM
main61732-1C091i199102-199201
W(HINGED QUARTER WINDOW & MOON ROOF & PACKAGE TRAY TRIM); W(SEVERE USAGE PACKAGE & HINGED QUARTER WINDOW & *MR & PACKAGE TRAY TRIM & REAR SEAT BELT)
main61732-1C100i198912-199009
main61732-1C110i198912-199009
W(FPACKAGE TRAY TRIM)
main61732-1C120i198912-199009
W(FABRIC DOOR TRIM)
main61732-1C130i199009-199106
main61732-1C140i198912-199009
W(PACKAGE TRAY TRIM & REAR SEAT BELT)
main61732-1C141i199102-199110
W(FPACKAGE TRAY TRIM)
main61732-1C150i198912-199009
W(FABRIC DOOR TRIM & REAR SEAT BELT)
main61732-1C151i199201
W(FULL FABRIC DOOR TRIM)
main61732-1C170i199009-199102
W(MOON ROOF & REAR SEAT BELT)
main61732-1C171i199102-199201
main61732-1C190i199009-199102
W(MOON ROOF)
main61732-1C191i199102-199601
W(MOON ROOF)
61733APANEL, ROOF SIDE, INNER FRONT RH
main61733-10900i198912-199201
main61733-10901i199201-199601
61734APANEL, ROOF SIDE, INNER FRONT LH
main61734-10900i198912-199201
main61734-10901i199210-199601
61757BRETAINER, DECK SIDE TRIM, LOWER
main61757-10020i198912
61764APLATE, QUARTER WINDOW LOCK GUSSET
main61764-10020i199201-199601
61764CPLATE, QUARTER WINDOW LOCK GUSSET
main61764-10020i198912-199201
W(HINGED QUARTER WINDOW)
62428BCOVER, CENTER PILLAR, RH
main62428-10010i199102-199601
62429COVER, CENTER PILLAR SERVICE HOLE
main62428-10010i199102-199601
62931ADUCT, QUARTER VENT, RH
main62903-10020i198912-199601
main62903-10030i199008-199009
SEVERE USAGE PACKAGE OR W(PACKAGE TRAY TRIM) OR W(REAR SEAT BELT)
62932ADUCT, QUARTER VENT, LH
main62904-10030i198912-199601
main62904-10040i198912
9017908063
main90179-08063
9017908102
main90179-08102
9033325001
main90333-25001
9033330004
main90333-30004
9095001126
main90950-01126
9095001308
main90950-01308
9095001327
main90950-01327
9095001362
main90950-01362
909500171303
main90950-0171303
909500171304
main90950-0171304
9095001750
main90950-01750
9095006066
main90950-06066
9165160816
main91651-60816
9338216012
main93382-16012

62 parts on this diagram · 2 diagrams in section

SIDE MEMBER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
