COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iEP8#198912

55701PANEL SUB-ASSY, COWL

main55700-10200iEP82199201-199212

main55700-10210iEP80,81..RHD198912-199212

main55700-10220iEP80,81..LHD199301-199601

main55700-10240iEP80,81..LHD198912-199301

55713APANEL, COWL TOP SIDE, RH

main55713-10050iEP8#198912

55714APANEL, COWL TOP SIDE, LH

main55714-10040iEP8#198912

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-10020iEP8#..RHD198912

main55708-10030iEP82199201-199601

COLD SPEC

main55708-10040iEP80,81..LHD198912-199601

55950NOZZLE ASSY, DEFROSTER

main55950-10050iEP8#..RHD198912

main55950-10060iEP80,81..LHD198912-199601

55967NOZZLE, DEFROSTER, LOWER

main55967-10020iEP8#198912

56111GLASS, WINDSHIELD

main56111-10300iEP80,81..RHD..5D199212

*TEM,T=5.0,CLEAR

main56111-10320iEP80,81198912-199212

*TT,T=5.0

main56111-10330iEP8#198912

*LAM,T=4.7,CLEAR

main56111-10340iEP80,81198912

*TL,T=4.7

56114RETAINER, WINDSHIELD GLASS

main56114-10010×2iEP8#198912

9016440085

main90164-40085

9016740045

main90167-40045

9016745011

main90167-45011

9016750002

main90167-50002

9018904151

main90189-04151

9018904161

main90189-04161

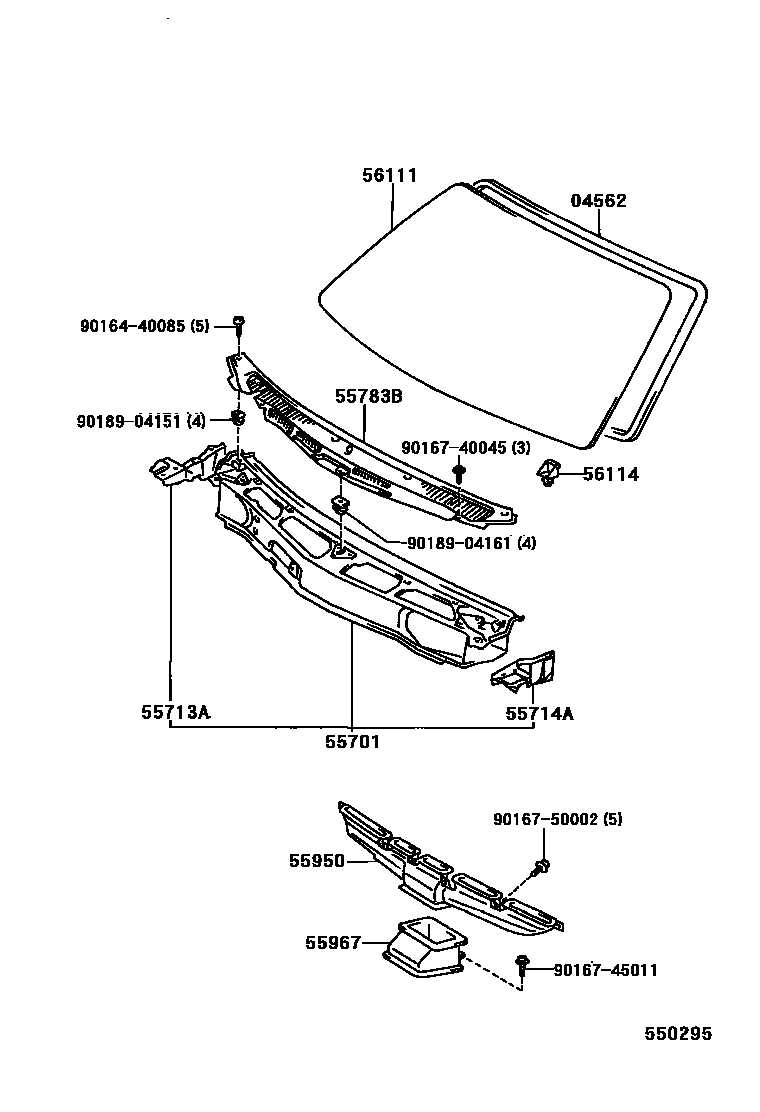

15 parts on this diagram · 1 diagram in section
