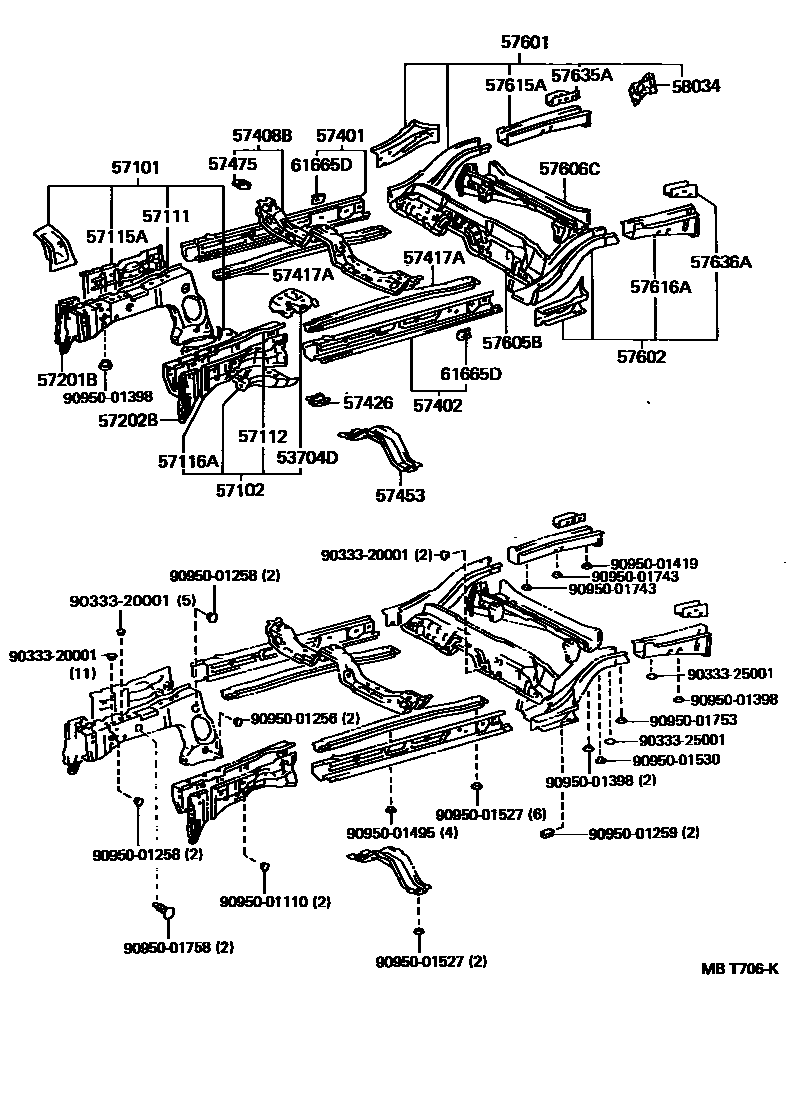

FLOOR SIDE MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-10030iEP80,81198912

main53704-16020iEP82199201-199601

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-10260iEP8#198912-199010

main57101-10270iEP8#199010

main57101-10300iEP80;EP81..5D..5F;EP81..3D..XL198912

SEVERE USAGE PACKAGE

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-10300iEP8#..MTM198912-199010

main57102-10310iEP81..3FC198912-199010

main57102-10320iEP80,81..MTM199010-199301

main57102-10330iEP81..3FC199010-199301

main57102-10360iEP80;EP81..5D..5F;EP81..3D..XL198912

SEVERE USAGE PACKAGE

main57102-10370iEP82199201-199601

57111MEMBER, FRONT SIDE, RH

main57111-10190iEP8#198912-199201

main57111-10200iEP80;EP81..5D..5F;EP81..3D..XL198912-199201

SEVERE USAGE PACKAGE

57112MEMBER, FRONT SIDE, LH

main57112-10170iEP8#198912-199201

main57112-10180iEP80;EP81..5D..5F;EP81..3D..XL198912-199201

SEVERE USAGE PACKAGE

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-10050iEP8#198912

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-10050iEP8#198912

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-10050iEP8#198912

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-10050iEP8#198912

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-10130iEP8#..5D198912

main57401-10140iEP8#..3D198912-199601

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-10130iEP8#..5D198912

main57402-10140iEP8#..3D198912-199601

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-10070iEP8#198912-199512

main57408-10080iEP82..3D199204-199601

W(6 SPEAKER)

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-10070×2iEP8#198912

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-10010iEP8#198912

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-10020iEP8#198912-199401

main57453-10021iEP8#199401

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-32010×2iEP8#198912

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-10081iEP82; EP82..SOL199201-199405

W(CUSTOM PACKAGE & DIVISION SPRING BACK TYPE REAR SEAT)

main57601-10090iEP8#198912-199201

main57601-10091iEP80,81; EP82199201-199405

HONG KONG SPEC

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-10080iEP8#198912-199201

main57602-10081iEP8#199201-199601

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-10080iEP8#198912-199008

main57605-16050iEP8#199008

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-10090iEP8#198912

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-10050iEP8#198912

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-10030iEP8#198912

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-10020iEP82199201-199601

HONG KONG SPEC

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57636-10010iEP8#198912

58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR

main58034-10010iEP8#198912

61665DPLATE, SAFETY BELT ANCHORAGE

main61665-22010×2iEP8#198912

9033320001

main90333-20001

9033325001

main90333-25001

9095001110

main90950-01110

9095001256

main90950-01256

9095001258

main90950-01258

9095001259

main90950-01259

9095001398

main90950-01398

9095001419

main90950-01419

9095001495

main90950-01495

9095001527

main90950-01527

9095001530

main90950-01530

9095001743

main90950-01743

9095001753

main90950-01753

9095001758

main90950-01758

40 parts on this diagram · 1 diagram in section
