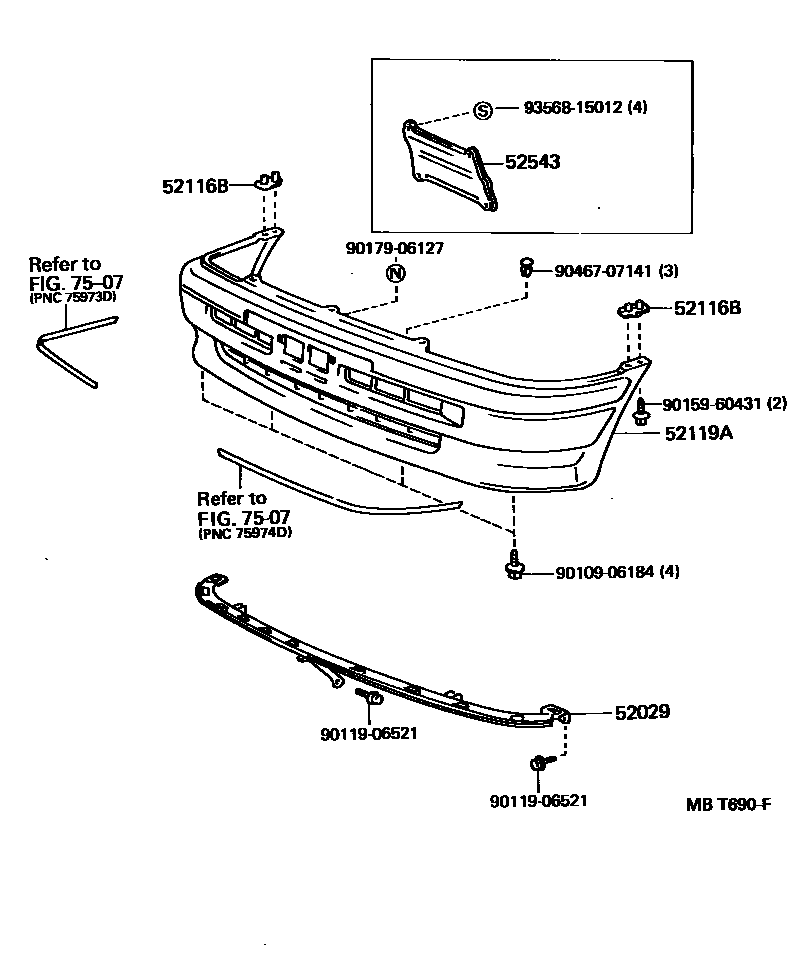

FRONT BUMPER & BUMPER STAY

0001 1TYPE A 0002 1TYPE B 0003 1TYPE C

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-10010iEP80,81198912

main52029-10030iEP80,81..RHD; EP82199201-199401

TYPE B BUMPER

main52029-10031iEP82199401-199601

main52029-10040iEP81199601

TYPE C BUMPER

52116BRETAINER, FRONT BUMPER

main52116-10080×2iEP8#198912-199103

main52116-10090×2iEP8#199103

52119ACOVER, FRONT BUMPER

main52119-10130iEP80,81198912

TYPE A

main52119-10230iEP80,81..RHD; EP82..SOL199201-199405

FOR COLORED BUMPER, TYPE B

main52119-10270iEP82199405-199601

main52119-10320iEP81199601

FOR COLORED BUMPER, TYPE C

main52119-10900iEP81;EP80..RHD;EP80..LHD..XL199201-199405

FOR COLORED BUMPER, TYPE A

52543SEAL, FRONT BUMPER SIDE, RH

main52543-10020iEP80,81198912

7507BODY STRIPE

→ Go to FIG 75-07

9010906184

main90109-06184

9011906521

main90119-06521

9015960431

main90159-60431

9017906127

main90179-06127

9046707141

main90467-07141

9356815012

main93568-15012

11 parts on this diagram · 3 diagrams in section
