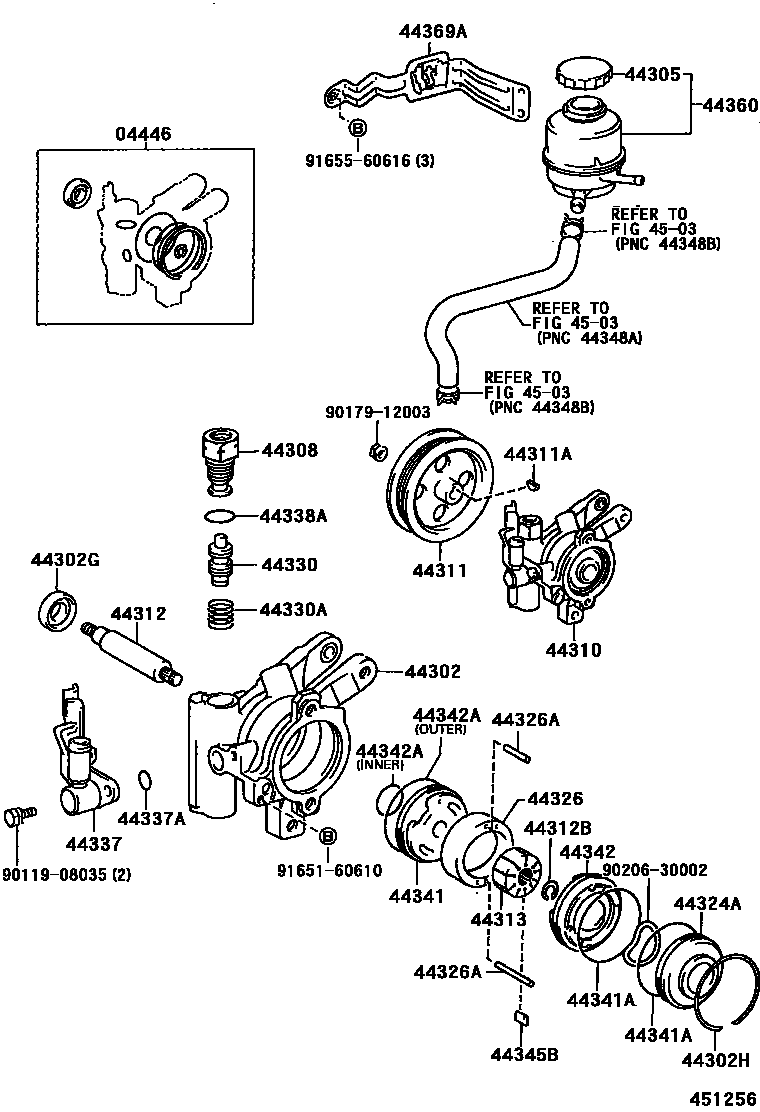

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-10020iEP82199201-199212

main04446-10021iEP81..RHD199307-199405

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12110iEP81..RHD199212

main44302-12120iEP82199201-199601

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iEP82199201-199212

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-62002iEP82199201-199212

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iEP82199201-199212

sub44305-22050

44308UNION SUB-ASSY, PRESSURE PORT

main44308-12032iEP82199201-199405

sub44308-12042

main44308-18011iEP82199405-199601

main44308-20050iEP81..RHD199212

44310PUMP ASSY, VANE

main44320-10100iEP82199201-199405

main44320-10101iEP82199405-199601

main44320-16240iEP81..RHD199212-199307

main44320-16241iEP81..RHD199307

44311PULLEY, VANE PUMP

main44311-10030iEP81,82..RHD199212

44311AKEY, VANE PUMP PULLEY

main90280-05008iEP82199201-199212

44312SHAFT, VANE PUMP

main44312-12030iEP82199201-199212

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iEP82199201-199212

44313ROTOR, VANE PUMP

main44313-22040iEP81,82..RHD199212

NO MARK

main44313-22050iEP82199201-199212

MARK 1

main44313-22060iEP82199201-199212

MARK 2

main44313-22070iEP82199201-199212

MARK 3

main44313-22080iEP81,82..RHD199212

MARK 4

44324AHOUSING, PUMP, REAR

main44324-12031iEP82199201-199212

44326RING, CAM(FOR VANE PUMP)

main44325-12110iEP82199201-199212

NO MARK

main44325-12120iEP82199201-199212

MARK 1

main44325-12130iEP81,82..RHD199212

MARK 2

main44325-12140iEP82199201-199212

MARK 3

main44325-12150iEP81,82..RHD199212

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iEP82199201-199212

L=28,OD=4.0

main90250-04049iEP81,82..RHD199212

L=43,OD=4.0

44330VALVE ASSY, FLOW CONTROL

main44330-12071iEP82199201-199212

MARK A

main44330-12081iEP82199304-199601

MARK B

main44330-12091iEP81,82..RHD199212-199304

MARK C

main44330-12101iEP82199201-199212

MARK D

main44330-12111iEP81,82..RHD199212-199304

MARK E

main44330-12121iEP82199201-199212

MARK F

main44330-16131iEP81..RHD199304

MARK A

main44330-16141iEP81..RHD199304

MARK B

main44330-16151iEP81..RHD199304

MARK C

main44330-16161iEP81..RHD199304

MARK D

main44330-16171iEP81..RHD199304

MARK E

main44330-16181iEP81..RHD199304

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iEP81,82..RHD199212

44337UNION, POWER STEERING SUCTION PORT

main44337-10050iEP82199201-199405

main44337-10060iEP82199405-199601

main44337-16041iEP81..RHD199212

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iEP81199612

main90301-12003iEP82199201-199212

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iEP82199201-199212

ID=19.5,OD=22.5

main90301-19013iEP81199612

ID=19.2,OD=22.3

sub90301-19018

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32010iEP81,82..RHD199212

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-52001×2iEP81,82..RHD199212

44342PLATE, VANE PUMP SIDE, REAR

main44342-32010iEP82199201-199212

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-25001iEP82199201-199212

INNER

sub90301-25008

main90301-52001iEP81,82..RHD199212-199507

OUTER

main90301-53006iEP81,82..RHD199507

OUTER

sub90301-53007

44345BPLATE, VANE PUMP

main44345-12010×10iEP81,82..RHD199212

L=14.997

main44345-12020×10iEP82199201-199212

L=14.995

main44345-12030×10iEP82199201-199212

L=14.993

main44345-12040×10iEP81,82..RHD199212

L=14.991

main44345-12050×10iEP82199201-199212

L=14.989

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-10040iEP82199201-199212

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-10030iEP82199201-199212

4503

9011908035

main90119-08035

9017912003

main90179-12003

9020630002

main90206-30002

9165160610

main91651-60610

9165560616

main91655-60616

33 parts on this diagram · 1 diagram in section
