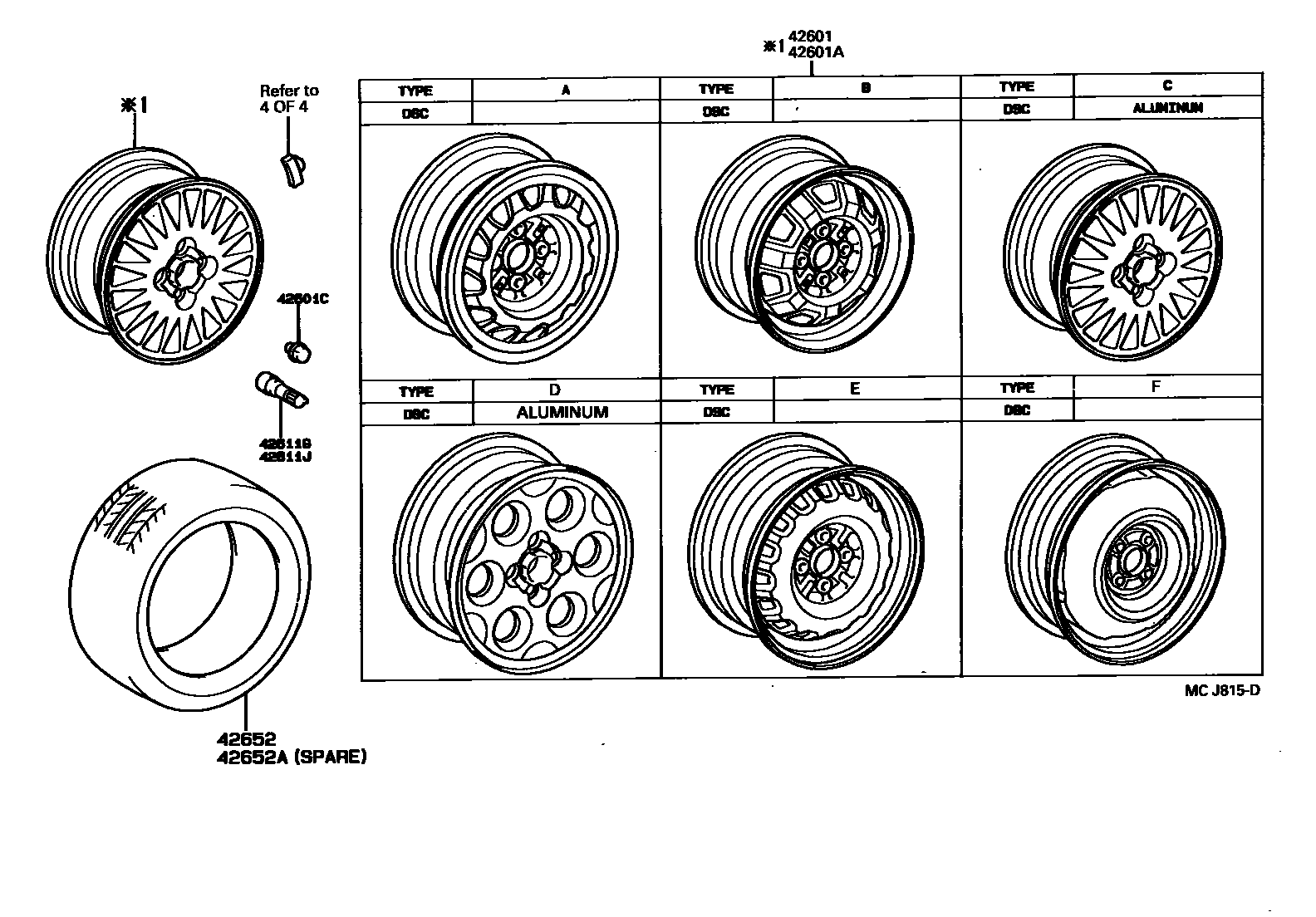

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-10210-03×4iEP82..SOL199201-199601

13X4J,TYPE A,SILVER

main42611-10220-03×4iEP80,81..STD,XL199201

13X4.5J,TYPE A,SILVER

main42611-10310×4iEP82..CAN199204-199405

14X5J,ALUMINUM WHEEL,TYPE D

main42611-10330-01×4iEP82..CAN199204-199405

14X5J,TYPE E,BLACK

main42611-10330-03×4iEP82..CAN199204-199405

14X5J,TYPE E,SILVER

main42611-12850×4iEP82..CAN199204-199405

13X5J,HONG KONG SPEC OR ALUMINUM WHEEL,TYPE C

main42611-16170-03×4iEP82..SOLL199201-199601

13X5J,HONG KONG SPEC,TYPE B,SILVER

main42611-20300-03×4iEP8#..S,SOLL,XL199405

13X5J,TYPE B,DARK GRAY

42601AWHEEL, DISC (FOR SPARE)

main42611-10210-03iEP82..SOL199201-199601

13X4J,TYPE A:REFER TO ILLUSTRATION,SILVER

main42611-10220-03iEP80,81..STD,XL199201-199803

13X4.5J,TYPE A:REFER TO ILLUSTRATION,SILVER

main42611-10310iEP82..CAN199204-199405

14X5J,TYPE D:REFER TO ILLUSTRATION

main42611-10320iEP82199201-199601

16X4T,TYPE F:REFER TO ILLUSTRATION;W(ABS)

main42611-10330-01iEP82..CAN199204-199405

14X5J,TYPE E:REFER TO ILLUSTRATION,BLACK

main42611-10330-03iEP82..CAN199204-199405

14X5J,TYPE E:REFER TO ILLUSTRATION,SILVER

main42611-12850iEP80,81..S,XL198912-199803

13X5J,TYPE C:REFER TO ILLUSTRATION;W(ALUMINUM WHEEL)

main42611-16170-03iEP81..3D..S198912-199201

13X5J,TYPE B:REFER TO ILLUSTRATION;SEVERE USAGE PACKAGE,SILVER

main42611-16310iEP82..CAN,S,SOL199201-199601

14X4T,OFFSET 45,TYPE D:REFER TO ILLUSTRATION

main42611-17040iEP82..SOLL199201-199212

14X4T,TYPE H:REFER TO ILLUSTRATION

main42611-1A330iEP82..SOLL199212-199601

14X4T,TYPE I:REFER TO ILLUSTRATION

main42611-20300-03iEP82..SOLL;EP80,81..S,XL199405-199803

13X5J,TYPE B:REFER TO ILLUSTRATION,DARK GRAY

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iEP82..CAN,S,SOLL; EP82..SOL199201-199601

HONG KONG SPEC

main90942-01021×16iEP80,81;EP82..SOL199405

main90942-01033×16iEP8#..S,XL198912

W(ALUMINUM WHEEL)

main90942-01059×16iEP80,81;EP82..SOL198912-199405

main90942-01062×16iEP82..CAN199204-199405

W(ALUMINUM WHEEL)

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iEP8#..CAN,S,XL198912

W(ALUMINUM WHEEL)

main90942-05009×4iEP8#..MTM..(S,XL); EP81..3FC198912-199201

SEVERE USAGE PACKAGE OR W(FULL CAP); W(13INCHES FULL CAP)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05004iEP8#..CAN,S,XL198912

W(ALUMINUM WHEEL)

main90942-05009iEP8#..MTM..(S,XL); EP81..3FC198912-199201

SEVERE USAGE PACKAGE OR W(FULL CAP); W(13INCHES FULL CAP)

42652TIRE

main42605-10050×4iEP80,81..STD,XL199201-199212

155SR13 78S,W(TUBE)

main42605-10060×4iEP8#198912-199201

155SR13,W(TUBE)

main42652-10270×4iEP81..3D..S; EP81..5D;EP80..S,XL;EP81..3D..XL198912-199201

165/70R13 79S; 165/70R13 79S,ALUMINUM WHEEL

main42652-12220×4iEP80;EP81..5D;EP81..3D..XL198912-199201

155SR13

main42652-12382×4iEP80,81..STD,XL199306-199803

155SR13 78S

main42652-16010×4iEP81..3D..S; EP81..5D;EP80..S,XL;EP81..3D..XL198912-199201

165/70SR13; 165/70SR13,ALUMINUM WHEEL

42652ATIRE (FOR SPARE)

main42605-10050iEP80;EP81..5D;EP81..3D..XL198912-199201

155SR13 78S,W(TUBE)

main42605-10060iEP80,81..STD,XL199201-199405

155SR13,W(TUBE)

main42652-10270iEP81..3D..S; EP81..5D;EP80..S,XL;EP81..3D..XL198912-199201

165/70R13 79S; 165/70R13 79S,ALUMINUM WHEEL

main42652-12220iEP80;EP81..5D;EP81..3D..XL198912-199201

155SR13

main42652-12382iEP80,81..STD,XL199306-199803

155SR13 78S

main42652-16010iEP81..3D..S; EP81..5D;EP80..S,XL;EP81..3D..XL198912-199201

165/70SR13; 165/70SR13,ALUMINUM WHEEL

7 parts on this diagram · 4 diagrams in section
