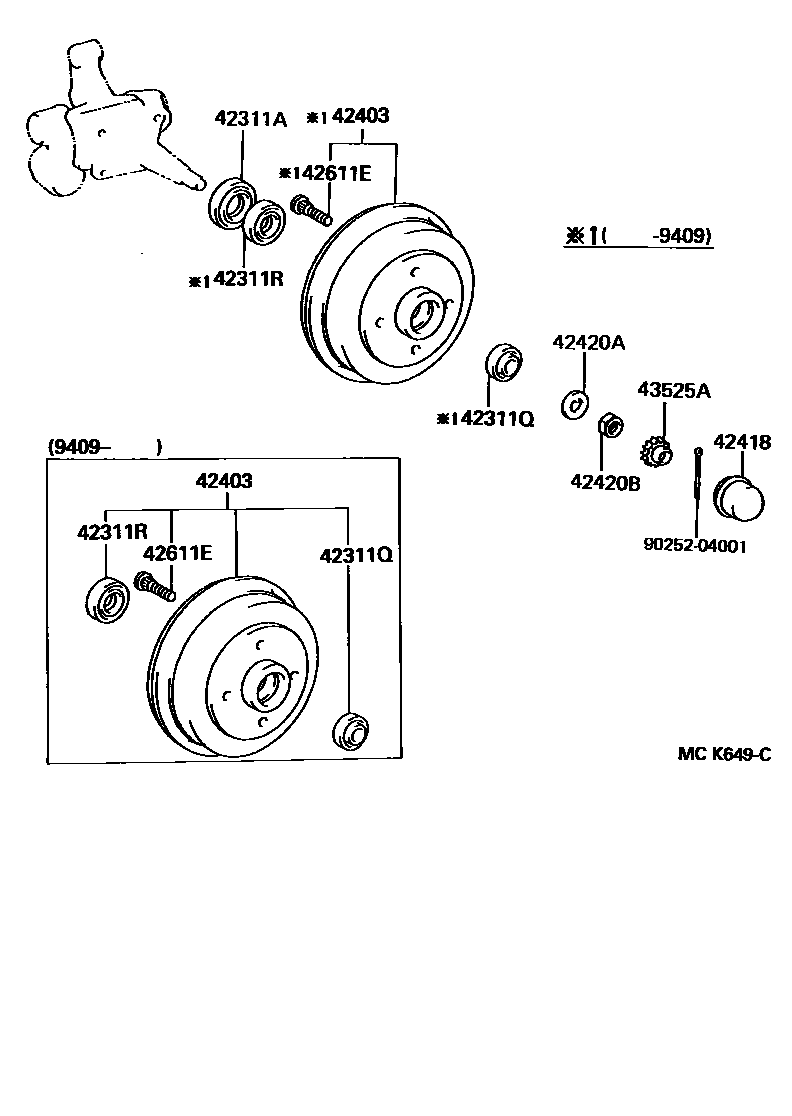

REAR AXLE SHAFT & HUB

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38037×2iEP8#198912

42311QBEARING(FOR REAR AXLE SHAFT OUTER)

main90366-17010×2iEP8#199201

main90368-17017×2iEP8#198912-199201

42311RBEARING(FOR REAR AXLE SHAFT INNER)

main90366-27001×2iEP8#198912

42403DRUM SUB-ASSY, REAR BRAKE

main42043-10030×2iEP82199201-199409

W(ABS)

main42043-19015×4iEP82199409-199601

W(ABS)

main42403-10020×2iEP8#198912-199201

main42403-10060×2iEP8#199201-199409

main42403-19015×2iEP8#199409

42418CAP, REAR HUB GREASE

main43514-10030×2iEP8#198912

42420AWASHER, CLAW (FOR REAR AXLE SHAFT)

main90214-16010×2iEP8#198912

42420BNUT (FOR REAR AXLE SHAFT)

main90170-16137×2iEP8#198912

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iEP8#198912

43525ACAP, REAR WHEEL ADJUSTING LOCK

main43525-20011×2iEP8#198912

9025204001

main90252-04001

10 parts on this diagram · 1 diagram in section
