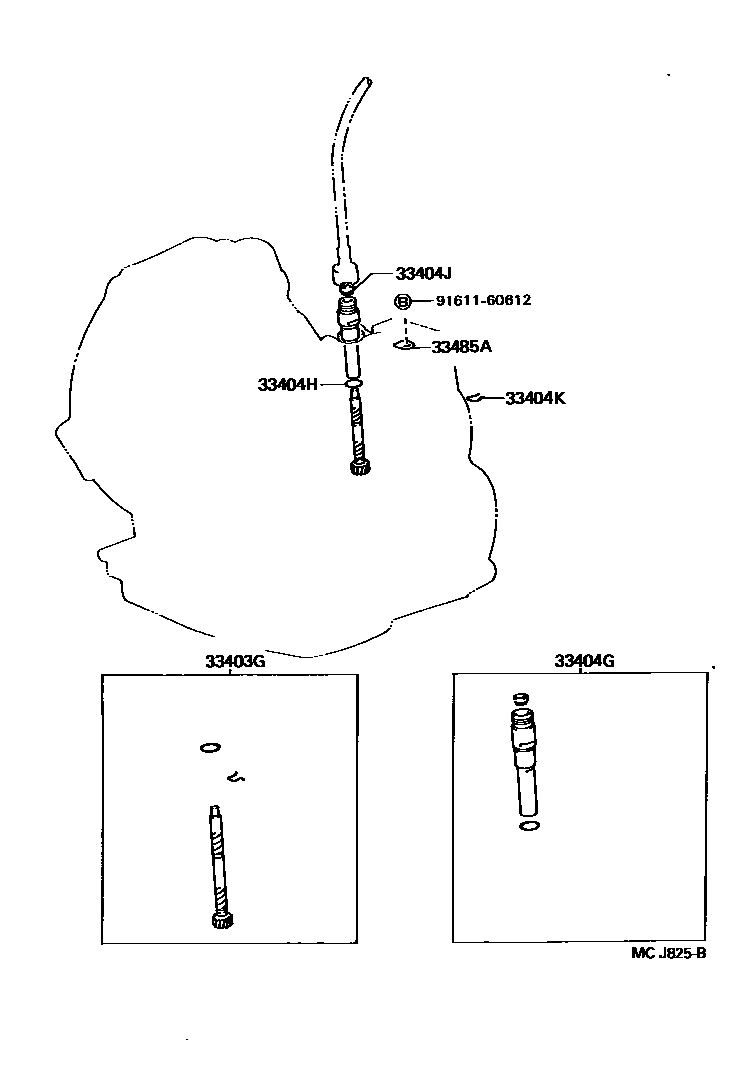

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0002 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19305iEP81,82..3FC198912-199601

N=22,MARK 22:25

main33403-19355iEP82..4FC199204-199601

N=31,MARK 31:34

main33403-19375iEP81..3FC198912-199601

N=23,MARK 23:25

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iEP82..4FC199204-199601

main33404-32010iEP81,82..3FC198912-199601

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iEP81,82..3FC198912-199601

main96711-24030iEP82..4FC199204-199601

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iEP81,82..ATM198912-199601

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iEP81,82..ATM198912-199601

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iEP81,82..3FC198912-199601

main33485-30020iEP82..4FC199204-199601

9161160612

main91611-60612

7 parts on this diagram · 2 diagrams in section
