TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

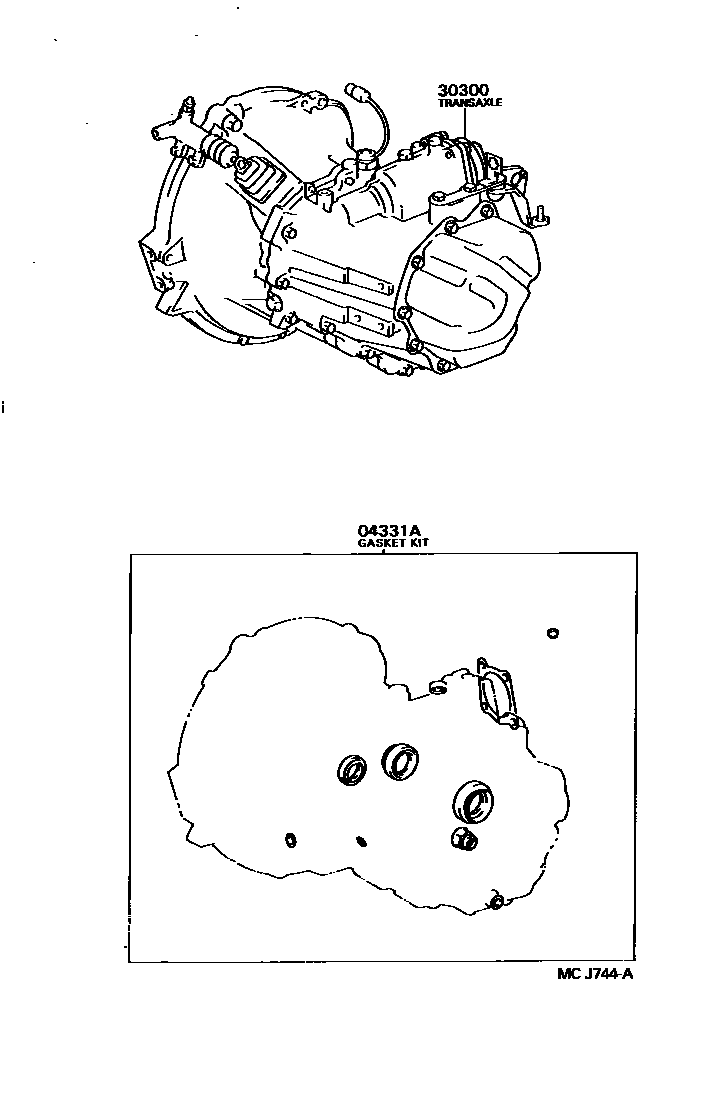

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080i198912

30300TRANSAXLE ASSY, MANUAL

main30300-10200i199201-199405

main30300-10201i199405-199505

main30300-10202i199505-199601

main30300-10230i198912-199405

main30300-10231i199405-199505

main30300-10232i199505-199601

main30300-10260i199204-199405

main30300-10261i199405-199505

main30300-10262i199505-199601

main30300-10270i198912-199409

main30300-10271i199409-199505

main30300-10272i199505

main30300-10280i199201-199409

*FGR=69:17

main30300-10281i199409-199505

*FGR=69:17

main30300-10282i199505-199601

*FGR=69:17

main30300-10290i198912-199201

INDONESIA SPEC

main30300-10310i199201-199405

*FGR=69:16

main30300-10311i199405-199505

*FGR=69:16

main30300-10312i199505-199601

2 parts on this diagram · 1 diagram in section
