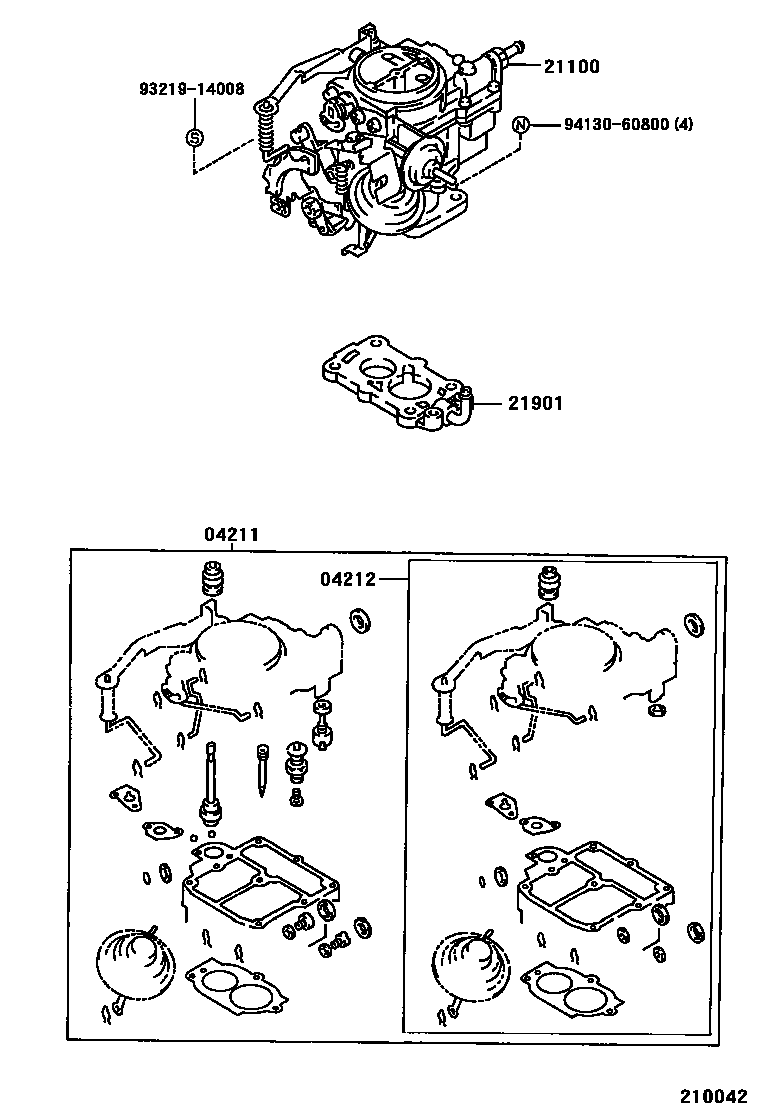

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-11052i2E..EP81198912-199201

main04211-11082i2E..EP81..3D198912-199201

SINGAPORE SPEC

main04211-11101i2E..EP81..3D199101-199212

NEW ZEALAND SPEC

main04211-11121i1E..EP80198912-199201

main04211-11131i1E..EP80..RHD199201-199404

SINGAPORE SPEC

main04211-11141i1E..EP80..RHD..5D198912-199201

SINGAPORE SPEC

main04211-11180i2E..EP81199201-199501

main04211-1B030i1E..EP80199201-199601

main04211-1B060i2E..EP81199501

04212GASKET KIT, CARBURETOR

main04212-10021i2E..EP81198912-199201

main04212-10031i2E..EP81..3D198912-199201

SINGAPORE SPEC

main04212-11071i1E..EP80198912-199201

21100CARBURETOR ASSY

main21100-10063i1E..EP80198912-199201

main21100-10092i1E..EP80..RHD..5D198912-199201

SINGAPORE SPEC

main21100-11172i2E..EP81..3FC198912-199201

main21100-11212i2E..EP81..5F198912-199201

main21100-11481i2E..EP81..3D198912-199201

SINGAPORE SPEC

main21100-11710i2E..EP81..3D199101-199212

NEW ZEALAND SPEC

main21100-11840i2E..EP81..5F199201-199212

main21100-11850i2E..EP81..5F199212

main21100-11870i2E..EP81..3FC199201-199601

main21100-1B010i1E..EP80..RHD199201-199404

SINGAPORE SPEC

main21100-1B030i1E..EP80199201-199601

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-10031i1E..EP80..3D..5F;1E..EP80..RHD..5D198912-199404

SINGAPORE SPEC

main21901-10041i1E,2E..EP8#198912-199201

main21901-11060i2E..EP81..3D199101-199201

NEW ZEALAND SPEC

9321914008

main93219-14008

9413060800

main94130-60800

6 parts on this diagram · 1 diagram in section
