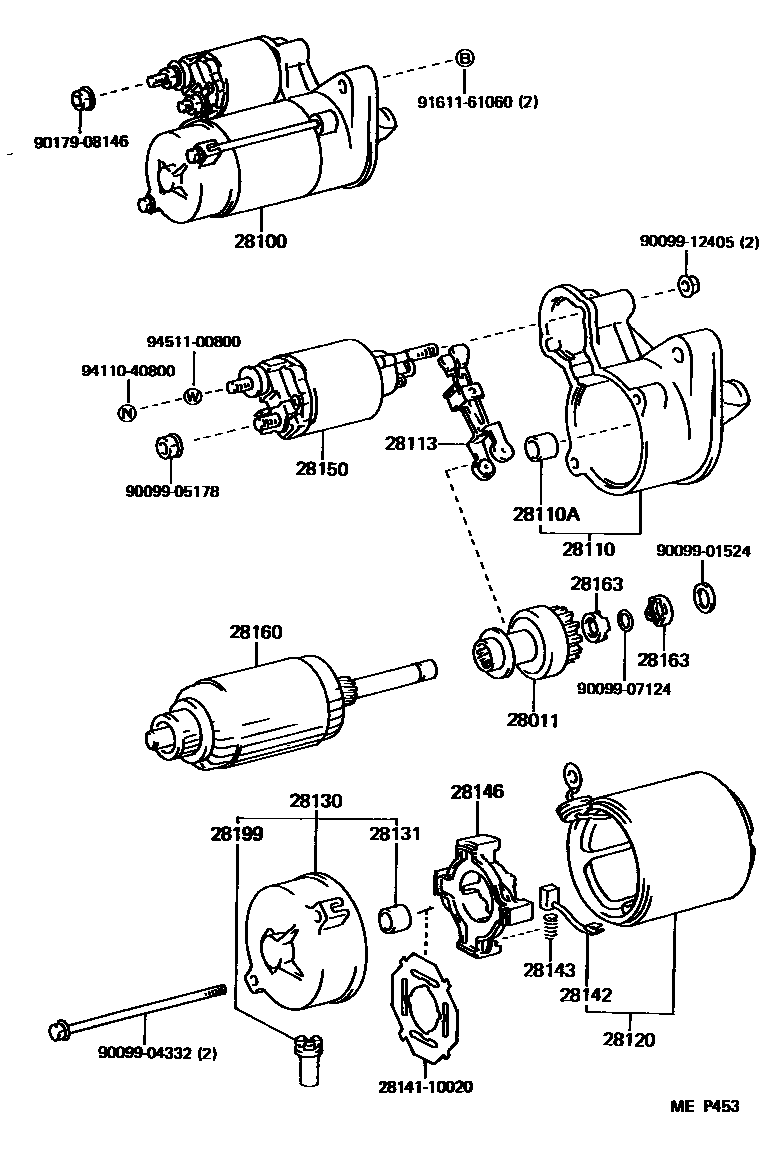

STARTER
28011CLUTCH SUB-ASSY, STARTER
COLD SPEC
28100STARTER ASSY
12V 0.6KW
12V 0.8KW
12V 1.0KW,COLD SPEC
12V 1.0KW,COLD SPEC
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 1.0KW,COLD SPEC
12V 1.0KW,COLD SPEC
28110HOUSING ASSY, STARTER DRIVE
COLD SPEC
COLD SPEC
28110ABEARING(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
COLD SPEC
28130FRAME ASSY, STARTER COMMUTATOR END
COLD SPEC
28131BUSH, COMMUTATOR END FRAME
28143SPRING, STARTER BRUSH
COLD SPEC
28146HOLDER, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
COLD SPEC
COLD SPEC
28160ARMATURE ASSY, STARTER
COLD SPEC
28163NUT OR COLLAR, PINION STOP, STARTER
28199COVER, STARTER
2814110020INSULATOR, BRUSH HOLDER
main28141-10020
9009901524
main90099-01524
9009904332
main90099-04332
9009905178
main90099-05178
9009907124
main90099-07124
9009912405
main90099-12405
9017908146
main90179-08146
9161161060
main91611-61060
9411040800
main94110-40800
9451100800
main94511-00800
25 parts on this diagram · 4 diagrams in section
