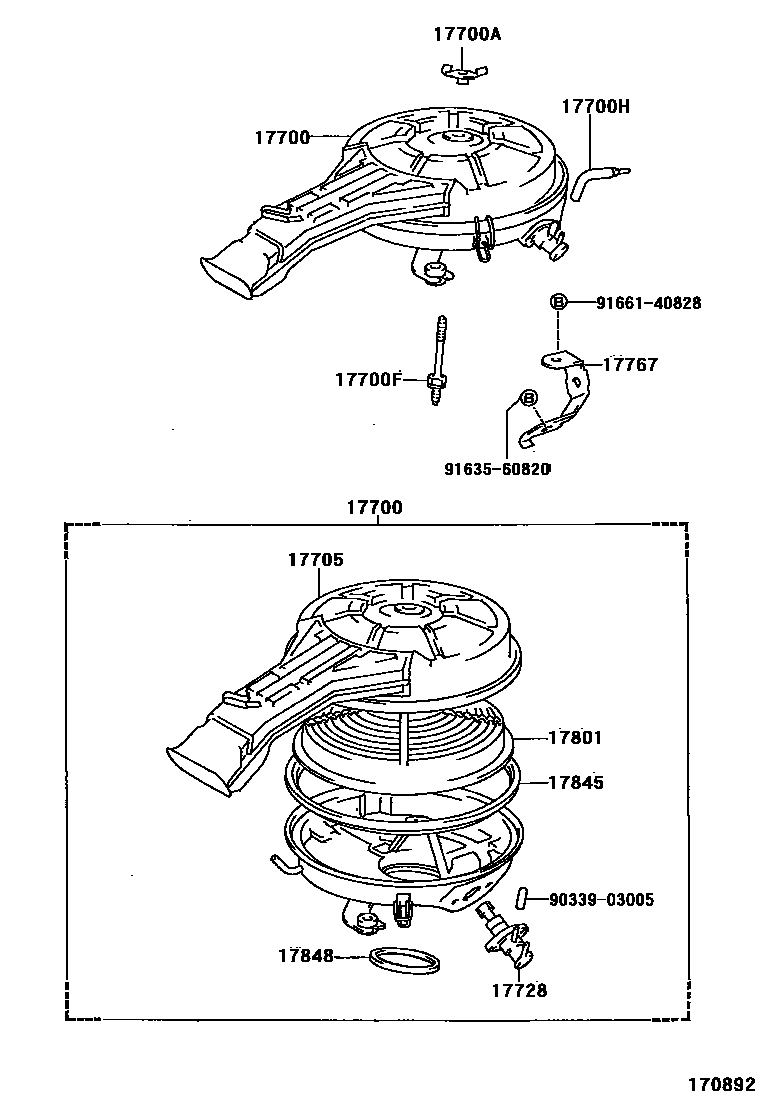

AIR CLEANER

0001 1 0002 1W/HOT AIR INTAKE 0003 1W/PRE AIR CLEANER 0004 1

17700CLEANER ASSY, AIR

main17700-10080i1E..EP80..RHD199304-199404

SINGAPORE SPEC & W(HAI)

main17700-10090i1E..EP80198912-199201

main17700-10100i1E..EP80198912-199201

W(PRE AIR CLEANER)

main17700-11610i2E..EP81..3D199201-199209

NEW ZEALAND SPEC

main17700-11660i2E..EP81198912-199201

main17700-11680i2E..EP81198912-199201

W(HOT AIR INTAKE)

main17700-11690i2E..EP81198912-199201

W(PRE AIR CLEANER)

main17700-11710i4EFE..EP82199201-199405

main17700-11810i1E,2E..EP80,81199201

main17700-11820i1E..EP80..3D..XL; 2E..EP81;1E..EP80..5D;1E..EP80..3D..STD199201-199209

NEW ZEALAND SPEC OR W(HAI); W(HOT AIR INTAKE)

main17700-11830i1E,2E..EP80,81199201

W(PRE AIR CLEANER)

main17700-11850i4EFE..EP82199405-199601

17700ANUT, WING(FOR AIR CLEANER)

main90175-06009i1E,2E..EP80,81198912

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06142i1E,2E..EP80,81198912

17700HHOSE, AIR

main17341-10010i1E,2E..EP80,81198912

17705CAP SUB-ASSY, AIR CLEANER

main17705-10060i1E,2E..EP80,81199301

main17705-10070i1E,2E..EP80,81198912-199301

main17705-10080i1E,2E..EP80,81198912

W(PRE AIR CLEANER)

main17705-11390i4EFE..EP82199405-199409

main17705-11470i1E,2E..EP80,81..3D..5F; 1E..EP80..3D..STD;1E,2E..EP80,81..5D199201-199209

NEW ZEALAND SPEC OR W(HAI); W(HOT AIR INTAKE)

main17705-11490i4EFE..EP82199409-199601

main17705-11500i4EFE..EP82199201-199405

17728VALVE, THERMOSTATIC

main17728-11020i2E..EP81198912-199201

main17728-11080i2E..EP81..3D199101-199201

NEW ZEALAND SPEC & W(HAI)

main17728-11090i1E..EP80..RHD199304-199404

SINGAPORE SPEC & W(HAI)

17767BRACKET, AIR CLEANER

main17771-11020i1E,2E..EP80,81198912

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-10030i1E,2E..EP8#198912-199201

main17801-11050i4EFE..EP82199201-199601

main17801-11100i1E,2E..EP80,81199201

17845GASKET, AIR CLEANER CAP

main17845-10020i1E,2E..EP80,81198912

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-10021i1E,2E..EP80,81198912

9033903005

main90339-03005

9163560820

main91635-60820

9166140828

main91661-40828

13 parts on this diagram · 4 diagrams in section
