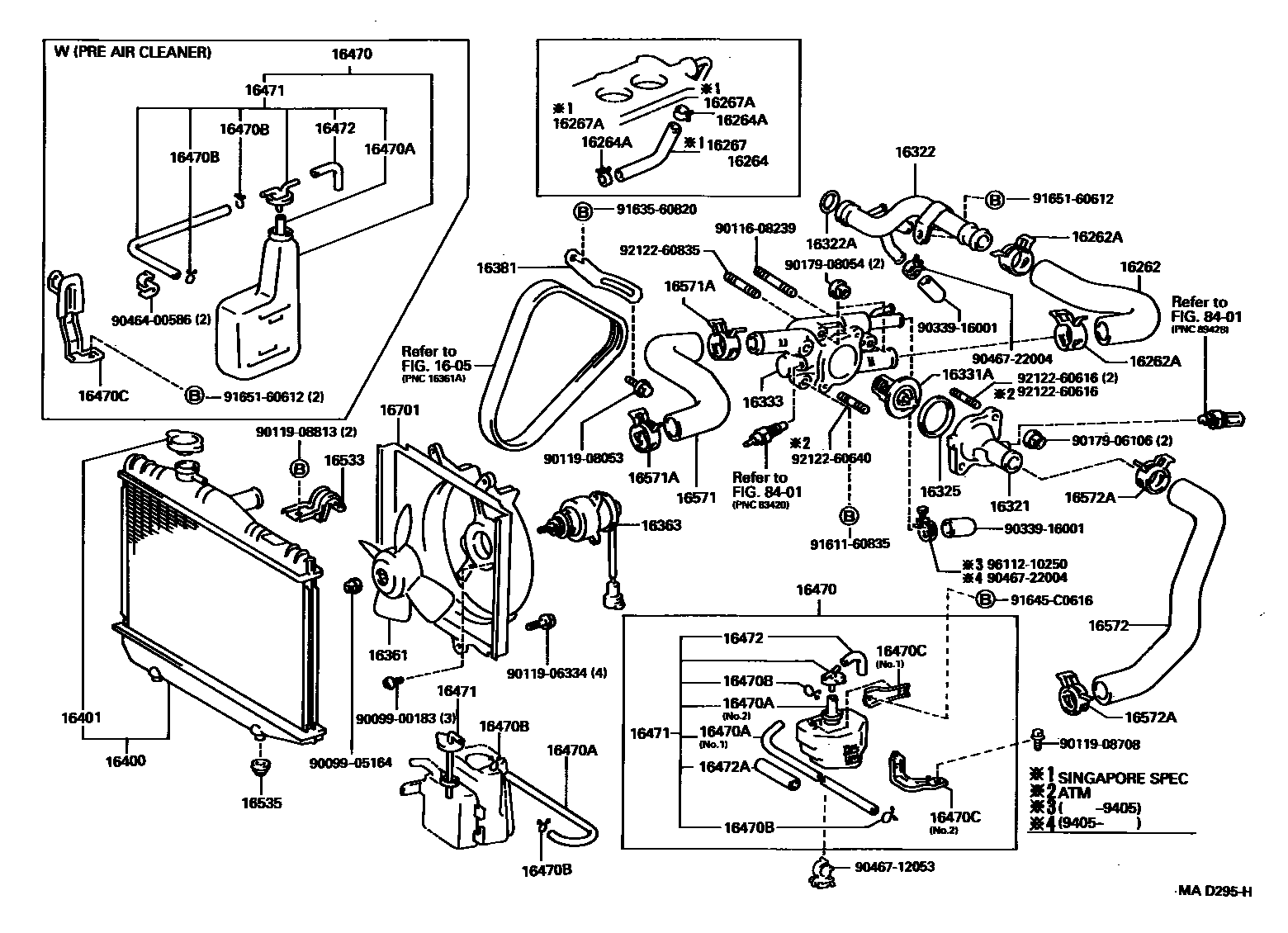

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1605

16262HOSE, WATER INLET

main16262-10010i1E..EP80..RHD199410-199601

SINGAPORE SPEC

sub16262-10011

main16262-10010i1E,2E,4EFE..EP8#..MTM198912-199410

sub16262-10011

main16262-10011i1E,2E,4EFE..EP8#..MTM199410

main16262-10020i2E,4EFE..EP81,82..ATM198912-199410

sub16262-10022

main16262-10022i2E,4EFE..EP81,82..ATM199410-199601

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i1E,2E,4EFE..EP8#198912

sub90467-34004

16264HOSE, WATER BY-PASS, NO.2

main16264-11050i4EFE..EP82199201-199407

main16264-11051i4EFE..EP82199407-199601

main16265-11040i2E..EP81..3D199101-199201

NEW ZEALAND SPEC

main16265-11040i1E,2E..EP80,81199201

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i4EFE..EP82199201-199601

sub96135-51100

main90467-11009i1E..EP80..3D..5F;1E..EP80..RHD..5D198912-199203

SINGAPORE SPEC

sub96135-51100

main90467-13001i1E..EP80..RHD199203-199207

SINGAPORE SPEC

sub96135-51300

main90467-13001i2E..EP81..3D199101-199201

NEW ZEALAND SPEC

sub96135-51300

main90467-13001i1E,2E..EP80,81199201

sub96135-51300

16267HOSE, WATER BY-PASS, NO.3

main16266-11010i1E..EP80..RHD199203-199404

SINGAPORE SPEC

main99555-00450i1E..EP80..3D..5F;1E..EP80..RHD..5D198912-199203

*H,L=450,SINGAPORE SPEC

sub99555-00500

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i1E..EP80..RHD198912-199404

SINGAPORE SPEC

sub96135-51100

16321INLET, WATER

main16321-10011i1E,2E,4EFE..EP8#..MTM198912

main16321-11011i2E,4EFE..EP81,82..ATM198912-199601

16322PIPE, WATER INLET

main16322-10010i1E,2E..EP8#198912-199201

main16322-11010i1E..EP80..3D..5F;1E..EP80..RHD..5D198912-199203

SINGAPORE SPEC

sub16322-11081

sub16266-11010

main16322-11080i2E..EP81..3D199101-199201

NEW ZEALAND SPEC

sub16322-11081

main16322-11080i1E,2E..EP80,81199201-199204

sub16322-11081

main16322-11081i1E,2E..EP80,81199204

sub16322-11091

main16322-11161i4EFE..EP82199201-199407

main16322-11162i4EFE..EP82199407-199601

16322ARING, O(FOR WATER INLET)

main96711-35028i1E,2E,4EFE..EP8#198912-199503

sub96761-35028

main96761-35028i1E,2E,4EFE..EP8#199503

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1E,2E,4EFE..EP8#198912-199301

sub16325-63011

main16325-63011i1E,2E,4EFE..EP8#199301

16331ATHERMOSTAT

main90916-03046i1E,2E,4EFE..EP8#198912-199601

*WAX 82-95

16333HOUSING, WATER OUTLET

main16303-10011i1E,2E..EP80,81198912-199205

sub16333-10011

main16303-11050i2E..EP81..3D199101-199205

NEW ZEALAND SPEC

sub16333-11190

main16333-10011i1E,2E..EP80,81199205

main16333-11120i4EFE..EP82..3FC,4F,5F199201-199601

main16333-11130i4EFE..EP82..4FC199204-199308

sub16333-11160

main16333-11160i4EFE..EP82..4FC199308-199405

main16333-11190i2E..EP81..3D199205-199212

NEW ZEALAND SPEC

16361FAN

main16361-11010i1E,2E..EP80,81;4EFE..EP82..MTM198912

main16361-11020i4EFE..EP82..ATM199201-199601

16363MOTOR, COOLING FAN

main16363-11010i1E,2E..EP80,81;4EFE..EP82..MTM198912

main16363-11020i4EFE..EP82..ATM199201-199601

16381BAR, FAN BELT ADJUSTING

main16381-11020i1E,2E..EP80,81198912-199207

sub16381-11021

main16381-11021i1E,2E..EP80,81199207

main16381-11030i4EFE..EP82199201-199601

main16381-11030i1E..EP80..RHD..5D198912-199201

SINGAPORE SPEC

main16381-11030i2E..EP81..RHD..5D199201

CKD INDONESIA SPEC & W(FOG LAMP)

16400RADIATOR ASSY

main16400-11300i1E,2E..EP80,81..MTM198912

main16400-11310i2E..EP81..3FC198912-199601

main16400-11340i2E..EP81..LHD..3FC199002-199201

HEAR COUNTRY SPEC,W(AIR CONDITIONER)

main16400-11340i4EFE..EP82..ATM199201-199601

main16400-11340i2E..EP81..3FC198912-199601

W(AIR CONDITIONER)

main16400-11350i1E,2E..EP80,81..RHD..MTM198912

W(AIR CONDITIONER)

main16400-11350i4EFE..EP82..MTM199201-199601

main16400-11350i1E,2E..EP80,81..LHD..MTM198912-199601

HEAR COUNTRY SPEC,W(AIR CONDITIONER)

main16400-11660i4EFE..EP82..4F199405-199601

sub16400-11350

16401CAP SUB-ASSY, RADIATOR

main16401-72090i1E,2E,4EFE..EP8#198912

sub16401-20353

16470TANK ASSY, RADIATOR RESERVE

main16470-11030i1E,2E..EP80,81198912-199601

main16470-11030i2E..EP81..RHD199209

W(PRE AIR CLEANER)

main16470-11070i4EFE..EP82199201-199405

sub16470-11071

main16470-11071i4EFE..EP82199405-199601

main16470-11080i2E..EP81..RHD199209

W(POWER STEERING)

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85319-10160i1E,2E,4EFE..EP8#198912

*H,L=640

main90099-33534i2E..EP81..RHD199209

L=1000(*H,L=700),W(POWER STEERING),NO.1

main90445-12078i1E,2E..EP80,81198912

L=600(*H,L=135),W(PRE AIR CLEANER)

main90445-12078i2E..EP81..RHD199209

L=600(*H,L=110),W(POWER STEERING),NO.2

main90445-12078i4EFE..EP82199201-199601

L=600(*H,L=120),W(*66)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1E,2E,4EFE..EP8#198912

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16471-55030i2E..EP81..RHD199209

W(POWER STEERING),NO.1

main16473-55030i2E..EP81..RHD199209

W(POWER STEERING),NO.2

main16611-11020i1E,2E..EP80,81198912-199203

main16611-11030i4EFE..EP82199201-199601

main16611-11040i1E..EP80;2E..EP81..LHD199203-199601

main16611-11040i2E..EP81..RHD199209

W(PRE AIR CLEANER)

16471CAP SUB-ASSY, RESERVE TANK

main16405-11030i1E,2E..EP80,81198912

W(PRE AIR CLEANER)

main16405-11070i4EFE..EP82199201-199601

W(*66)

main16405-11080i2E..EP81..RHD199209

W(POWER STEERING)

main85399-10160i1E,2E,4EFE..EP8#198912

16472HOSE, BREATHER

main16477-11070i4EFE..EP82199201-199601

NO.2

main16478-11070i4EFE..EP82199201-199601

NO.3

main16479-11070i4EFE..EP82199201-199601

NO.1

main85338-30010i2E..EP81..RHD199209-199309

W(POWER STEERING)

main85338-74040i1E,2E..EP80,81198912-199209

main85338-74040i1E..EP80;2E..EP81..LHD199209-199309

W(PRE AIR CLEANER)

16472APROTECTOR, HOSE

main16477-55030i2E..EP81..RHD199209

16533SUPPORT, RADIATOR, UPPER

main16505-11080i1E,2E..EP80,81198912

main16505-11180i4EFE..EP82199201-199601

16535SUPPORT, RADIATOR, LOWER

main90480-23008i1E,2E,4EFE..EP8#198912

16571HOSE, RADIATOR, INLET

main16571-11080i1E,2E..EP8#198912-199105

main16571-11190i2E..EP81..3FC199105-199601

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i1E,2E,4EFE..EP8#198912

16572HOSE, RADIATOR, OUTLET

main16572-11130i1E,2E,4EFE..EP8#..MTM198912

main16572-11170i2E,4EFE..EP81,82..ATM198912-199601

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i1E,2E,4EFE..EP8#198912

16701SHROUD SUB-ASSY, FAN

main16711-11140i1E,2E..EP80,81198912

main16711-11150i4EFE..EP82..MTM199201-199601

main16711-11160i4EFE..EP82..ATM199201-199601

sub16711-11161

8401

9009900183

main90099-00183

9009905164

main90099-05164

9011608239

main90116-08239

9011906334

main90119-06334

9011908053

main90119-08053

9011908708

main90119-08708

9011908813

main90119-08813

9017906106

main90179-06106

9017908054

main90179-08054

9033916001

main90339-16001

9046400586

main90464-00586

9046712053

main90467-12053

9046722004

main90467-22004

9161160835

main91611-60835

9163560820

main91635-60820

91645C0616

main91645-C0616

9165160612

main91651-60612

9212260616

main92122-60616

9212260640

main92122-60640

9212260835

main92122-60835

9611210250

main96112-10250

54 parts on this diagram · 3 diagrams in section
