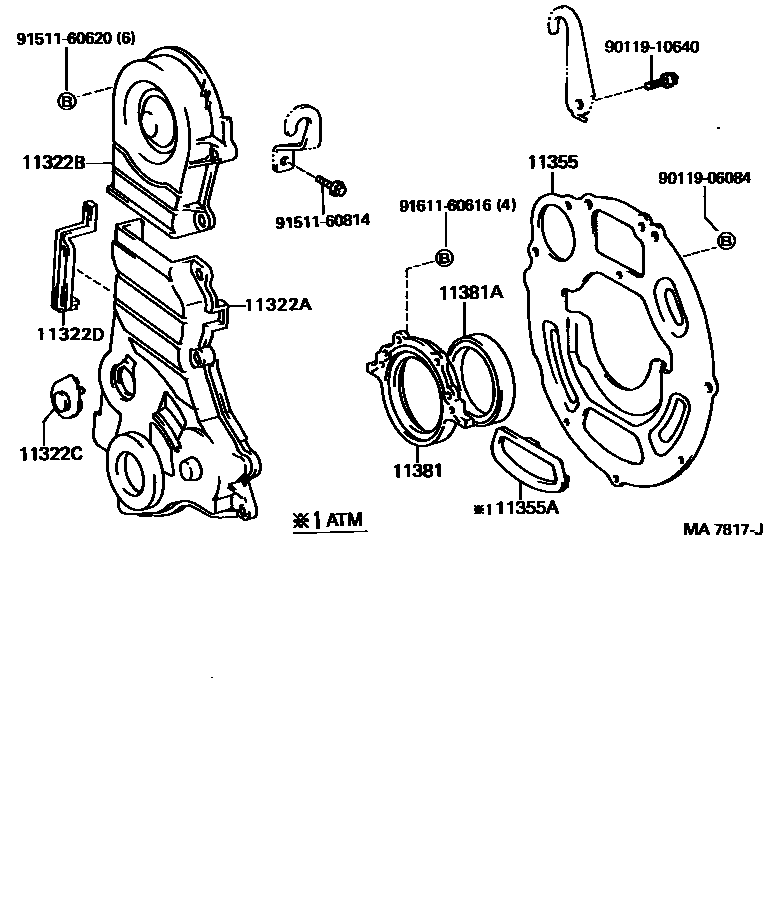

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11322ACOVER, TIMING BELT, NO.1

main11302-10023i1E..EP80198912-199405

main11302-10024i1E..EP80199405-199601

main11302-11070i2E..EP81198912-199405

main11302-11072i2E..EP81199405

11322BCOVER, TIMING BELT, NO.2

main11303-10022i1E,2E..EP80,81198912-199405

main11303-10023i1E,2E..EP80,81199405

11322CCOVER, TIMING BELT, NO.3

main11323-10011i1E,2E,4EFE..EP8#198912

11322DGASKET, TIMING BELT COVER, NO.1

main11328-10021i1E..EP80198912-199601

main11328-11040i2E,4EFE..EP81,82198912-199309

main11328-11041i2E,4EFE..EP81,82199309

11355PLATE, REAR END

main11355-10011i1E,2E,4EFE..EP8#..MTM198912-199611

main11355-10012i2E..EP81199611

main11355-11011i2E,4EFE..EP81,82..ATM198912-199601

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i2E,4EFE..EP81,82..ATM198912-199601

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i1E,2E,4EFE..EP8#198912-199407

main11381-10021i1E,2E,4EFE..EP8#199407

11381ASEAL, ENGINE REAR OIL

main90311-75004i1E,2E..EP8#198912-199010

main90311-75009i1E,2E,4EFE..EP8#199010

9011906084

main90119-06084

9011910640

main90119-10640

9151160620

main91511-60620

9151160814

main91511-60814

9161160616

main91611-60616

13 parts on this diagram · 2 diagrams in section
