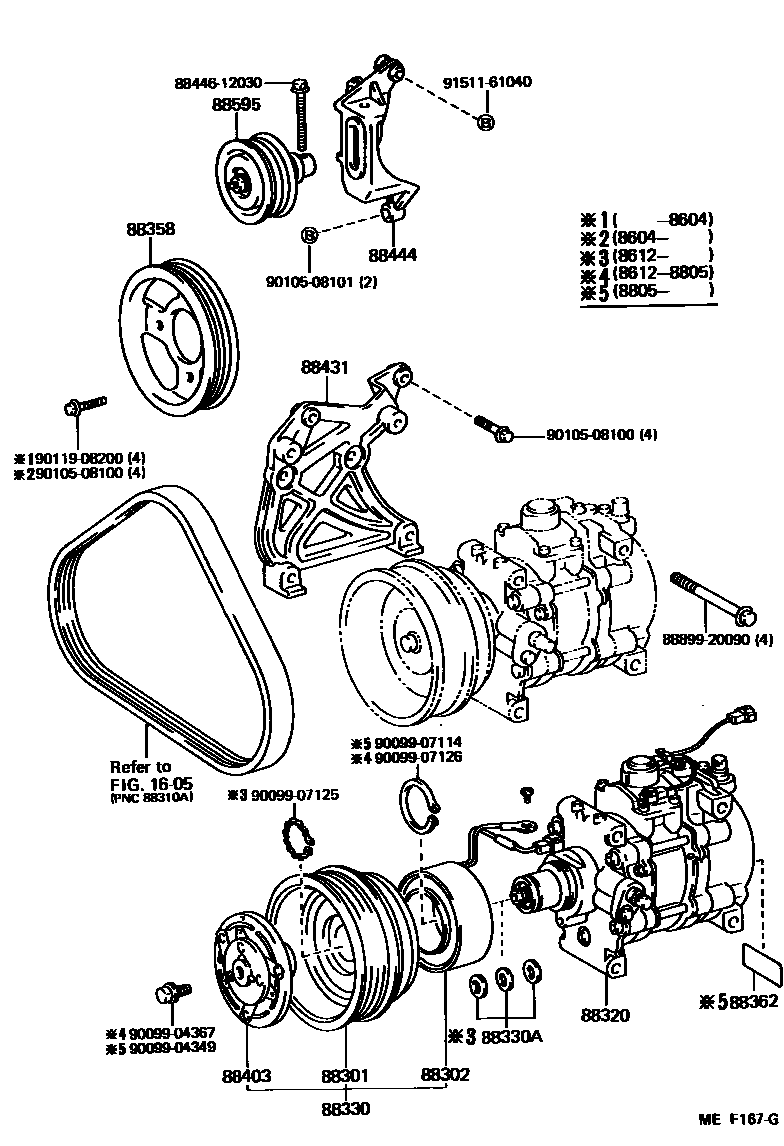

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-10010iEP7#198410-198502

main88412-10011iEP71,76198508-198612

main88412-10030iEP70198502-198508

main88412-10031iEP70198508-198612

main88412-10060iEP71,76198612-198805

main88412-10070iEP70198612-198805

main88412-10120iEP70198805-198912

main88412-10140iEP71,76198805-198912

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-10010iEP7#198410-198612

main88411-10030iEP7#198612-198805

main88411-16021iEP7#198805-198912

88320COMPRESSOR ASSY, COOLER

main88320-10060iEP7#198410-198612

main88320-10090iEP7#198612-198805

main88320-10180iEP7#198805-198912

88330CLUTCH ASSY, MAGNET

main88410-10020iEP7#198410-198502

main88410-10021iEP71,76198508-198612

main88410-10022iEP71,76198612-198805

main88410-10040iEP70198502-198508

main88410-10041iEP70198508-198612

main88410-10042iEP70198612-198805

main88410-10110iEP70198805-198912

main88410-10130iEP71,76198805-198912

88330AWASHER (FOR MAGNET CLUTCH)

main88335-10030iEP7#198612-198805

main88335-14020iEP7#198805-198912

88358PULLEY, CRANKSHAFT TO COOLER COMPRESSOR DRIVE

main88358-10010iEP7#198410-198604

main88358-10011iEP7#198604-198912

88362PLATE, COOLER COMPRESSOR SEAL

main88356-12010iEP7#198805-198912

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-10010iEP7#198410-198805

main88403-16011iEP7#198805-198912

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-10040iEP7#198410-198604

main88431-10041iEP7#198604-198805

main88431-16060iEP7#198805-198912

88444BRACKET, IDLE PULLEY

main88444-10020iEP70198410-198604

main88444-10021iEP70198604-198912

main88444-10030iEP71,76198410-198604

main88444-10031iEP71,76198604-198912

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010iEP7#198410-198912

8844612030BOLT, IDLE PULLEY

main88446-12030

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009904367

main90099-04367

9009907114

main90099-07114

9009907125

main90099-07125

9009907126

main90099-07126

9010508100

main90105-08100

9010508101

main90105-08101

9011908200

main90119-08200

9151161040

main91511-61040

23 parts on this diagram · 3 diagrams in section
