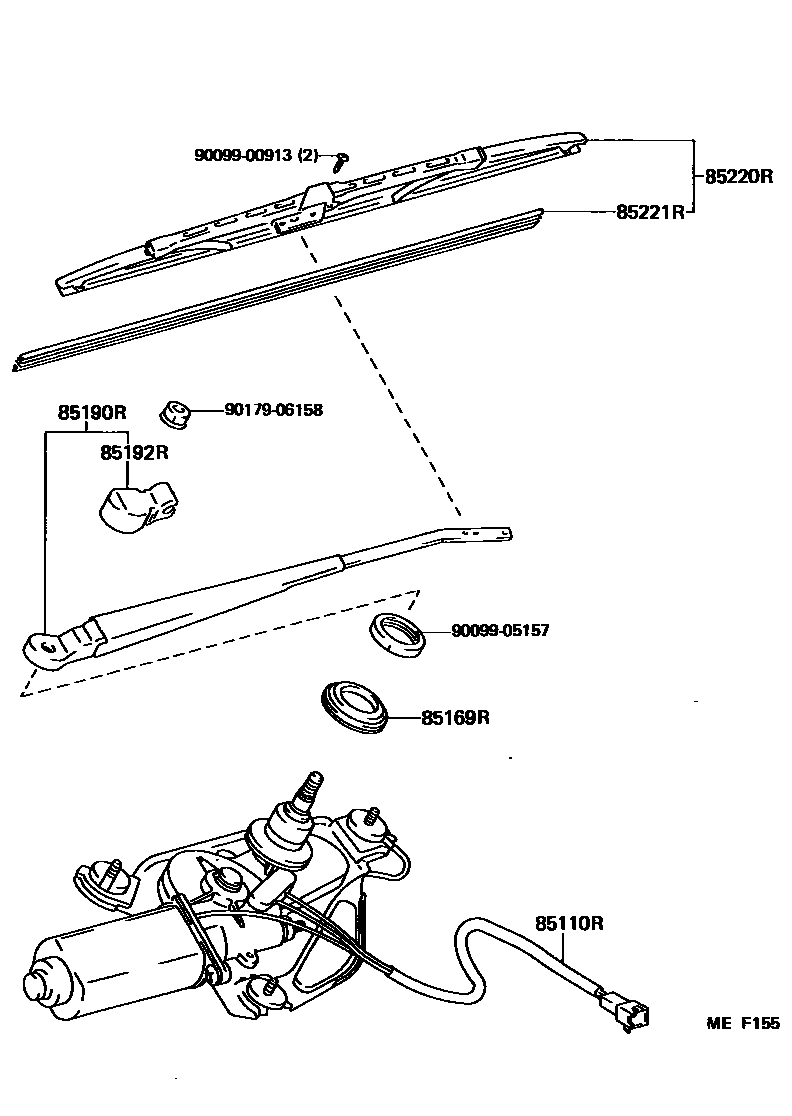

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85110-10300iEP7#198410-198612

main85110-10311iEP7#198612-198707

main85110-10312iEP7#198707-198912

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-16150iEP7#198410-198912

85190RARM ASSY, REAR WIPER

main85190-10440iEP7#198410-198707

main85190-10450iEP7#198707-198912

85192RCOVER, REAR WIPER ARM

main85192-10440iEP7#198410-198912

85220RBLADE ASSY, REAR WIPER

main85220-22490iEP7#198410-198707

main85220-22560iEP7#198707-198912

85221RBLADE, REAR WIPER

main85221-10060iEP7#198410-198912

9009900913

main90099-00913

9009905157

main90099-05157

9017906158

main90179-06158

9 parts on this diagram · 1 diagram in section
