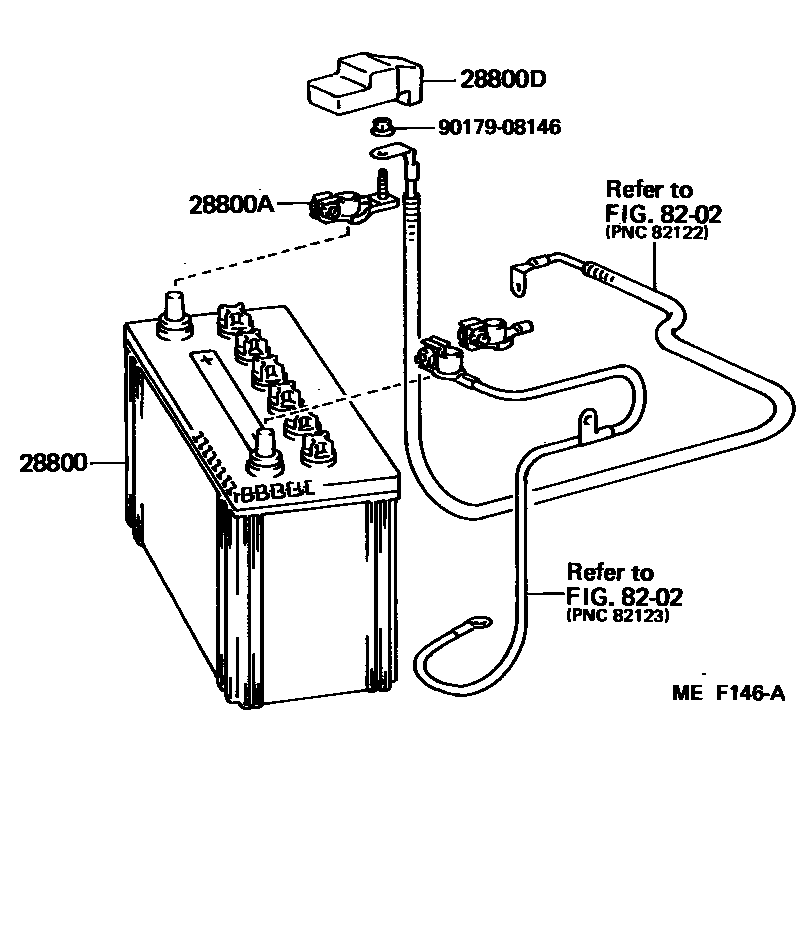

BATTERY & BATTERY CABLE

28800BATTERY

main28800-13110i1EL,2EL..EP7#198410-198912

28B19R(S),28B19R(S)(NS40S(S))

main28800-33071i1EL,2EL..EP7#198410-198912

32C24R,32C24R(N40)

28800ATERMINAL, BATTERY POSITIVE

main90982-05023i1EL,2EL..EP7#198410-198411

main90982-05027i1EL,2EL..EP70,71198502-198610

INDONESIA SPEC

main90982-05028i1EL,2EL..EP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

main90982-05029i1EL,2EL..EP7#198411-198610

main90982-05030i1EL,2EL..EP7#198610-198912

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i1EL,2EL..EP7#198410-198912

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section
